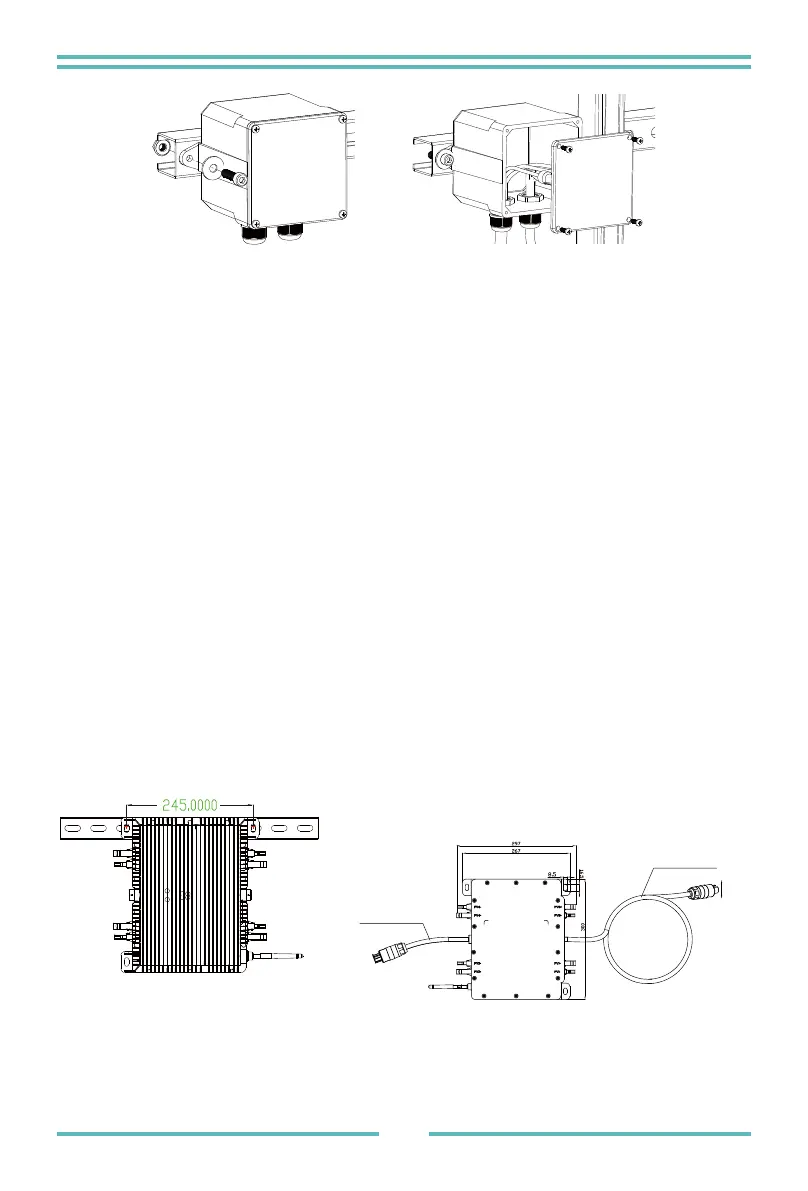

a. Install an appropriate junction box at a suitable location on the PV racking system
(typically at the end of a branch of modules).
b. Connect the open wire end of the AC cable into the junction box using an appropriate
gland or strain relief fitting.
WARNING: Wiring colour code can be different according local regulation,check all
the wires of the installation before connecting to the AC cable to be sure they match.
Wrong cabling can damage irreparably the microinverters,such an issue is not covered
by the warranty.
a. Mark the location of the Microinverter on the rack, with respect to the PV module
junction box or any other obstructions.
b. Mount one Microinverter at each of these locations using hardware recommended
by your module racking vendor.
c. Wire the conductors of the AC(230/400Vac): L - red; N - black ;PE - yellow green.
d. Connect the AC branch circuit junction box to the point of utility Interconnection.
The AC wire on the micro inverter is a TC-ER wire with a wire cross-section area of
3.33mm².
- 08 -
1300 / 1600 / 1800 /2000G3 (4MPPT)
Mounting
AC cable L=85mm
AC cable L=1960mm
3.33mm²
