- 09 -
WARNING: Prior to installing any of the microinverters, verify that the utility voltage
at the point of common connection matches the voltage rating on microinverter label.

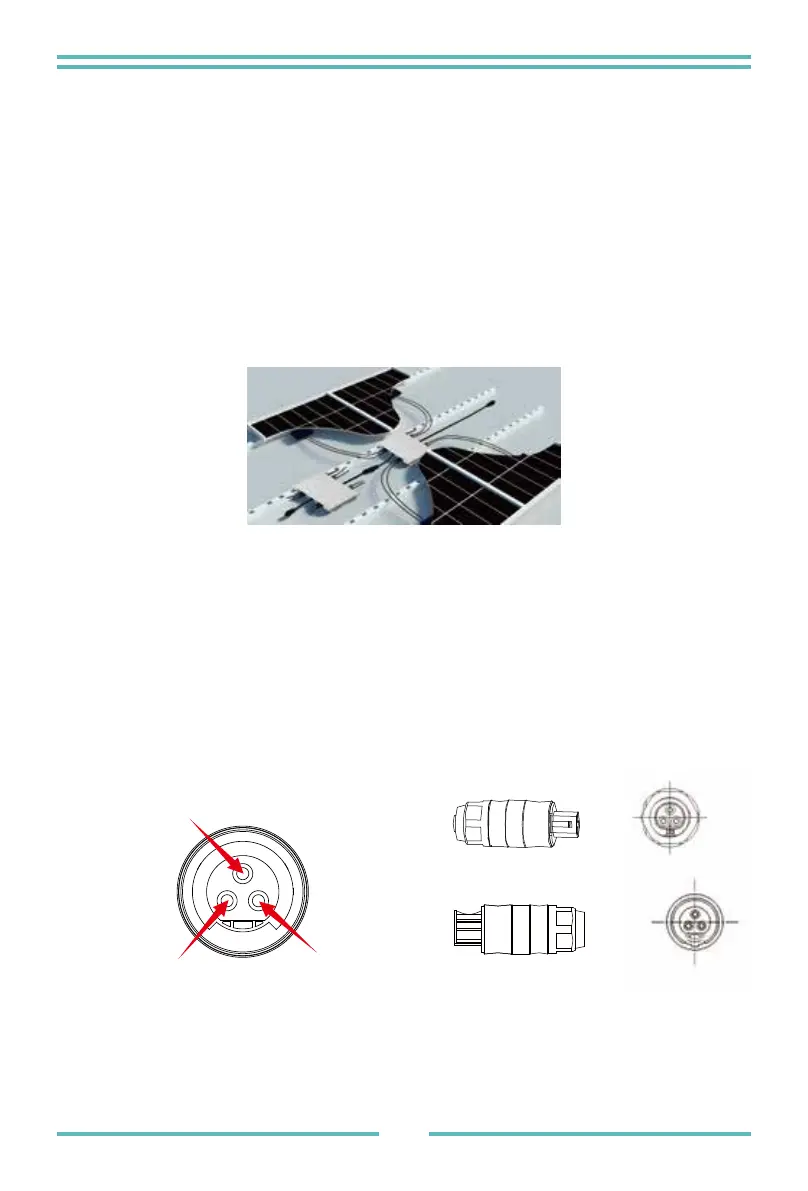

WARNING: Do not place the inverters (including DC and AC connectors) where
exposed to the sun, rain or snow, even gap between modules.Allow a minimum of 3/4
(1.5cm.) between the roof and the bottom of the Microinverter to allow proper air flow.
a. Check the Microinverter technical data page 5 for the maximum allowable number of
Microinverters on each AC branch circuit.
b. Plug the male AC connector of the Microinverter into the female connector to get it
connected.AC connector interface as follows.
WARNING: DO NOT exceed maximum number of Microinverters in an AC branch
circuit, as displayed on the page 5 of this manual.
L N
PE
1300/1600/1800/2000G3 (4MPPT)
connect in parallel
To Next Page
