Hardware Installation

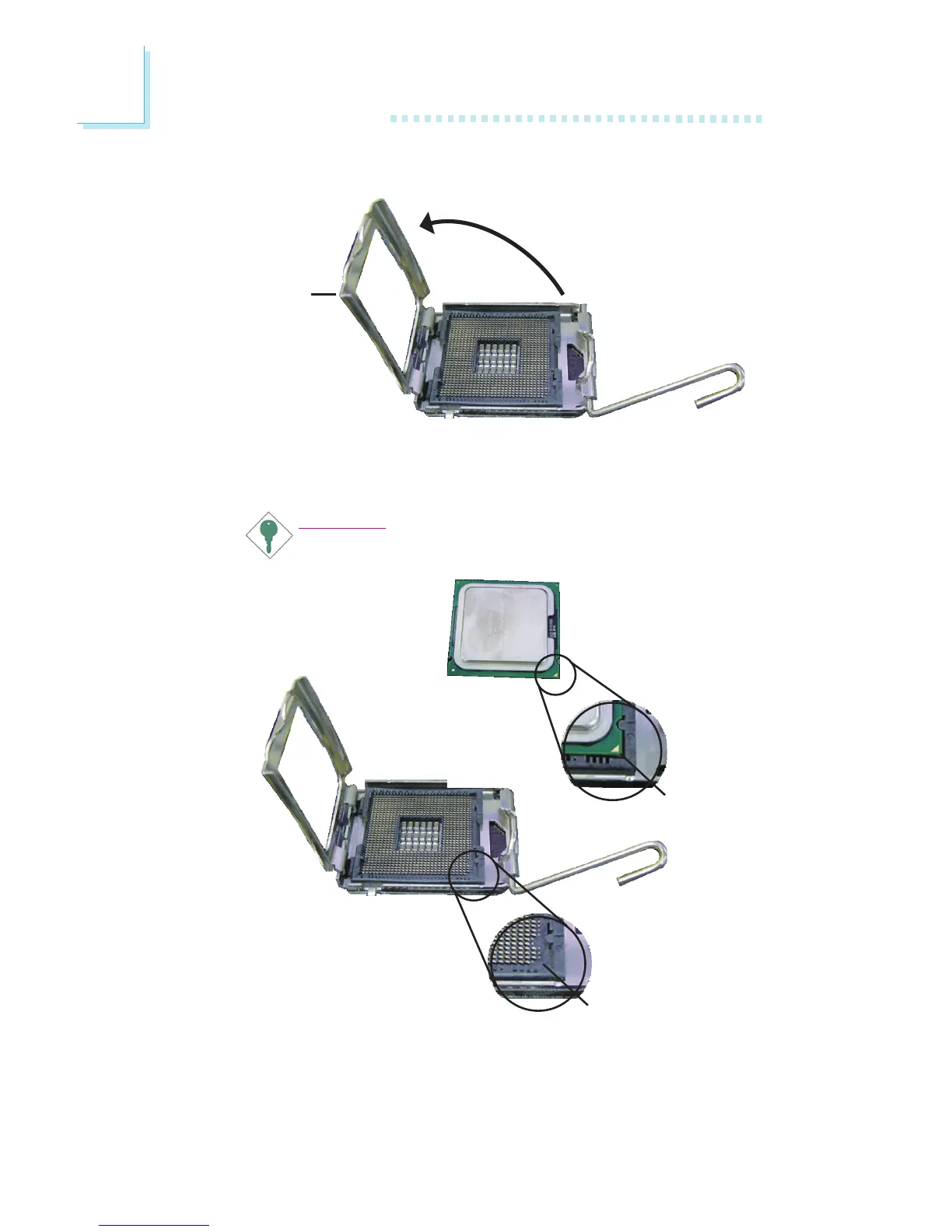

7. Now lift the cover.
8. Position the CPU above the socket. The gold mark on the CPU
must align with pin 1 of the CPU socket.
Important:
Handle the CPU by its edges and avoid touching the
pins.
Cover
Pin 1 of the socket
Gold mark
