48
2
Hardware Installation
Optical
S/PDIF
RCA
S/PDIF
W
S/PDIF

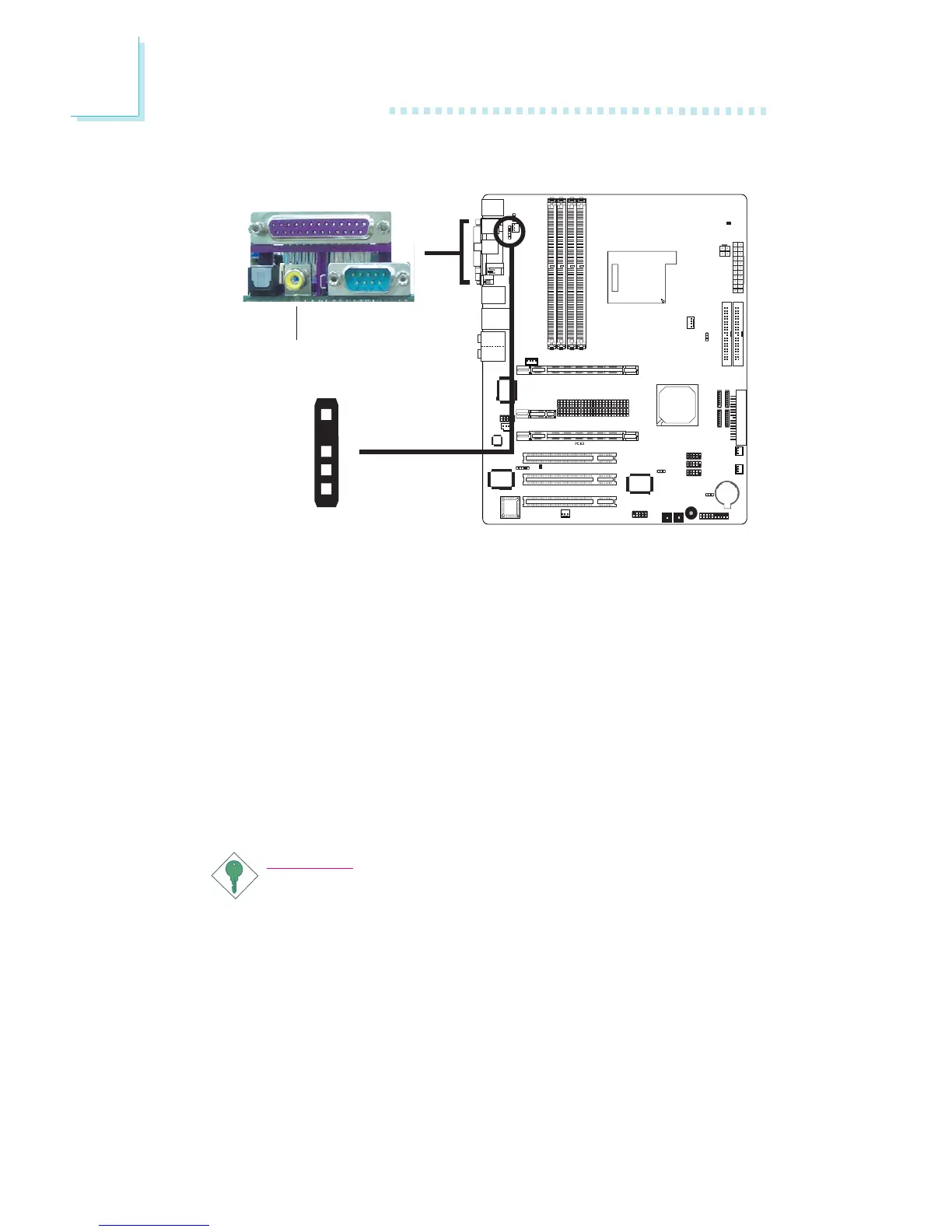

The system board is equipped with an onboard optical S/PDIF-out
jack and a RCA S/PDIF-out jack at locations CN11 and CN7
respectively. It is also equipped with a connector at location J3 for
coaxial RCA S/PDIF-in/out port connection. S/PDIF ports are used
to connect audio output devices.
Your coaxial RCA S/PDIF ports may come mounted on a card-edge
bracket. Install the card-edge bracket to an available slot at the rear
of the system chassis then connect the audio cable connector to J3.
Make sure pin 1 of the audio cable connector is aligned with pin 1
of J3.
Important:
DO NOT use optical S/PDIF and coaxial RCA S/PDIF at the
same time.
W
RCA
S/PDIF
1
5
+5V
Key
SPDIF out
SPDIF in
GND
