2.6.2 RJ45 Fast-Ethernet Port (PM12-TL only)
The PM12-TL mainboard is equipped with an onboard RJ45 fast-
ethernet LAN port at location CN1 of the ATX double deck ports.
It allows the mainboard to connect to a local area network by
means of a network hub. You can enable or disable the onboard
LAN in the Integrated Peripherals submenu (“VIA OnChip PCI
Device” field) of the BIOS.

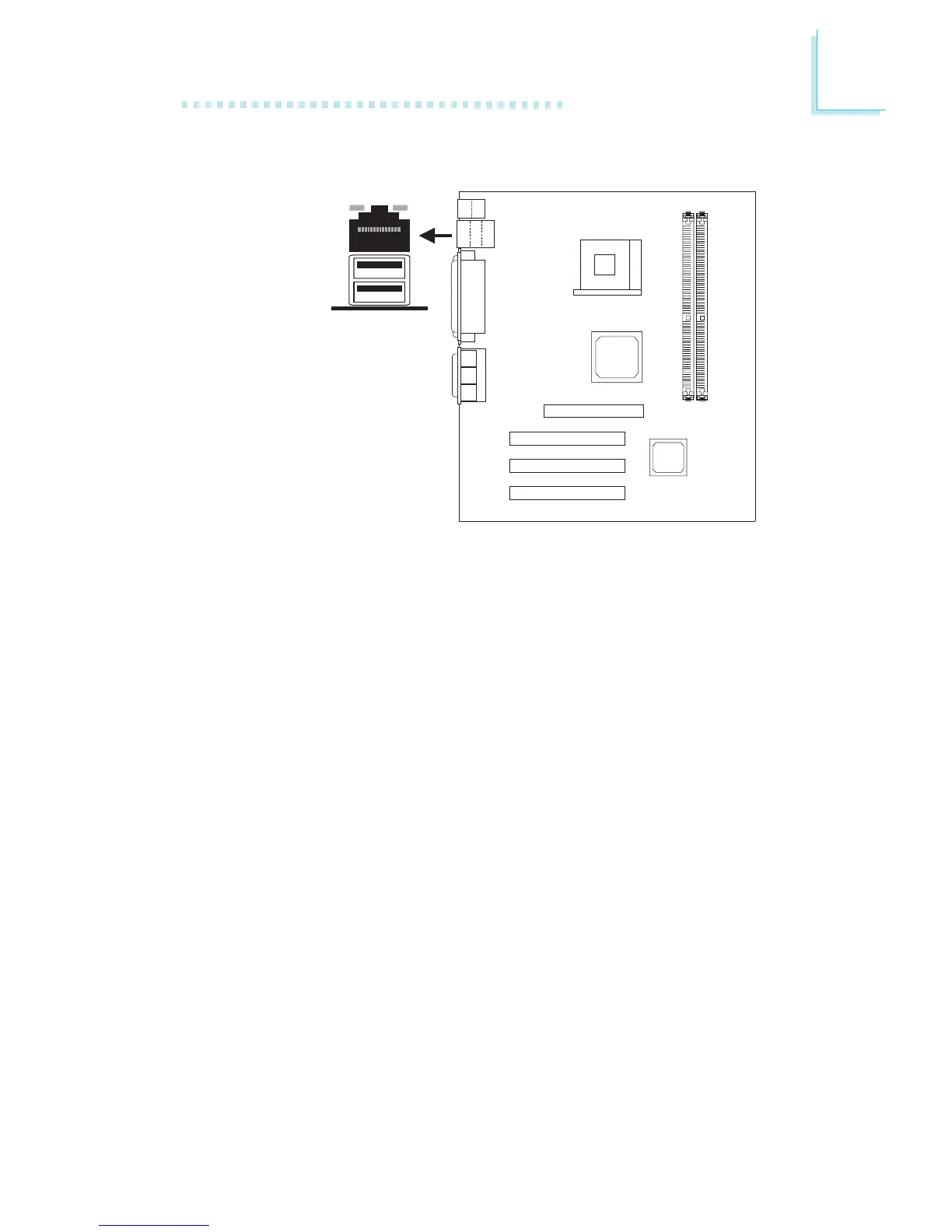

RJ45 LAN
CN1
