Hardware Installation

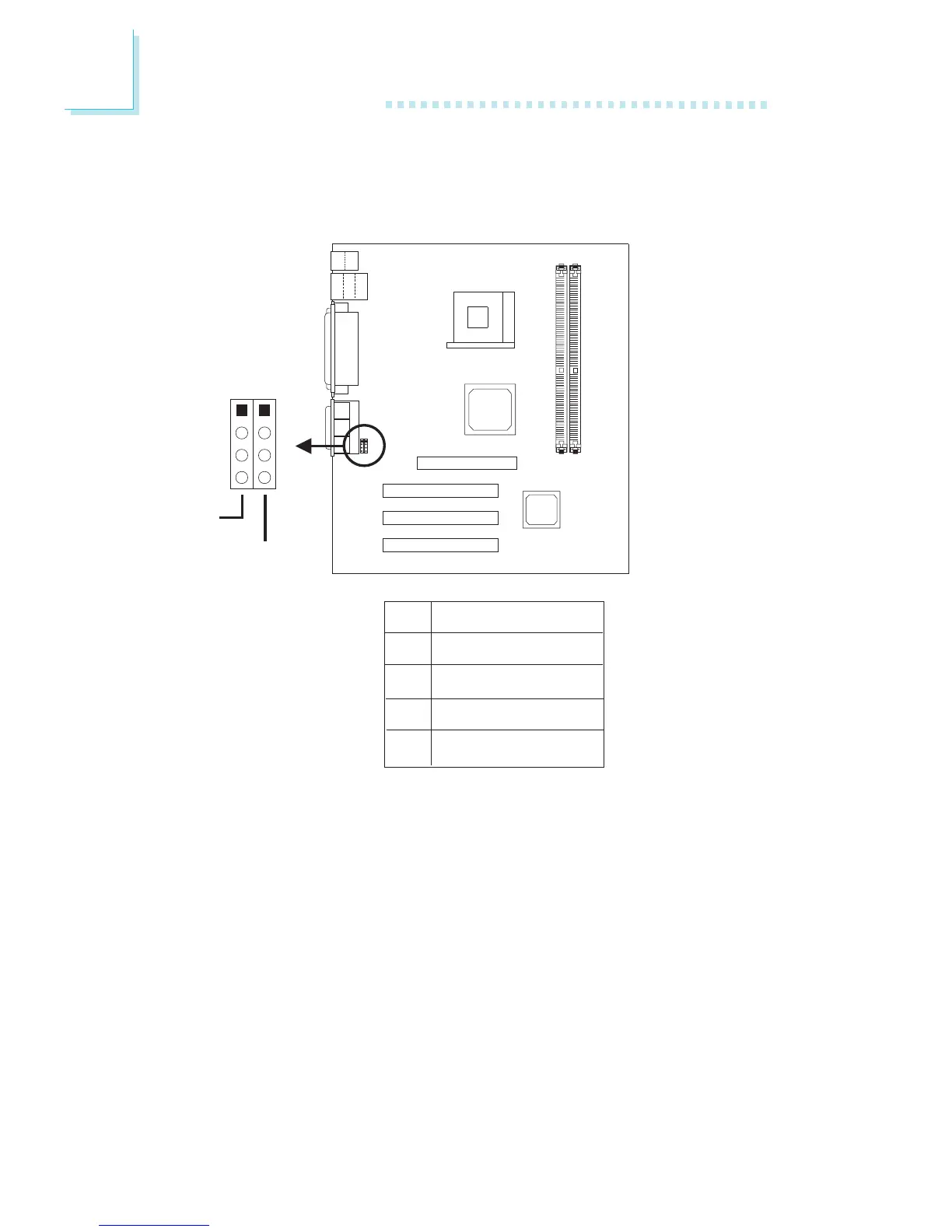

2.7.1 Internal Audio Connectors
The CD-in and AUX-in connectors are used to receive audio from a
CD-ROM drive, TV tuner or MPEG card.
Pin
1
2
3
4
Function
Left audio channel
Ground
Ground
Right audio channel
2.7 I/O Connectors
AUX-in
(J18)
CD-in
(J19)
1
2
3
4
