Hardware Installation

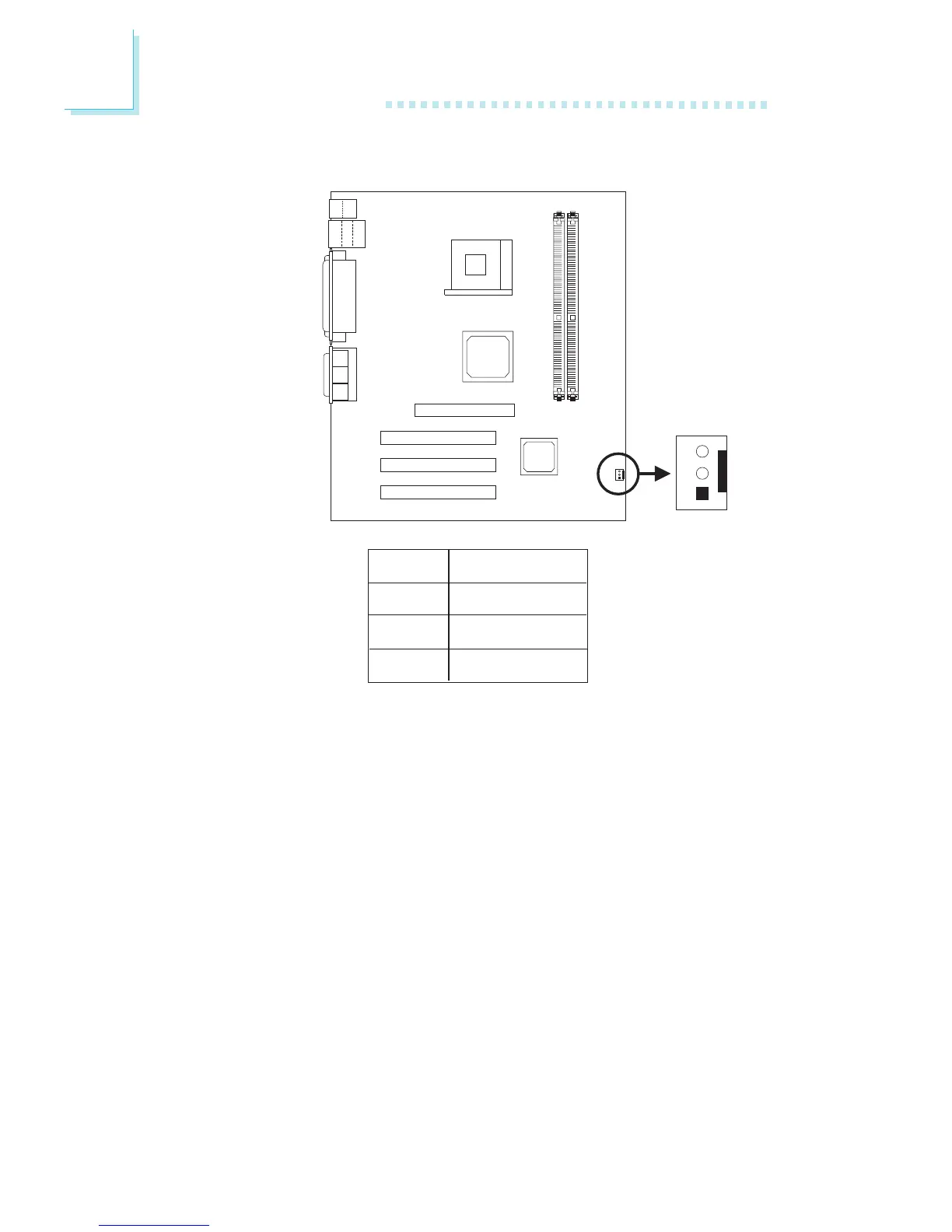

2.7.6 Chassis Fan Connector
Chassis fan
(J14)
3
2
1
Pin
1
2
3
Function
Ground
12V
N. C.
If you are installing a chassis fan in the system unit, connect the fan’s
connector to location J14 on the mainboard. The fan will provide
adequate airflow throughout the chassis to prevent overheating the
processor.
