DA435HA: 99901219: 2-519980930
DRIVESHAFT
RPM
MAXIMUM
OPERATING ANGLE
5000 3.2°
4500 3.7°
4000 4.2°
3500 5.0°
3000 5.8°
2500 7.0°
2000 8.7°
1500 11.5°
2-4-4. ANGLE SIZE
The magnitude of a vibration created by a u-joint
operating angle is proportional to the size of the u-
joint operating angle. IMT recommends true u-joint
operating angles of 3° or less.
Obtain the true u-joint operating angle, as explained
above, and if it is greater than 3°, compare it to the
following chart.
The angles shown on the chart are the MAXIMUM
u-joint operating angles recommended by IMT and
are directly related to the speed of the driveshaft.
Any u-joint operating angle greater than 3° will
lower u-joint life and may cause vibration.
Remember to check maximum safe driveshaft RPM
as recommended by the driveshaft manufacturer.

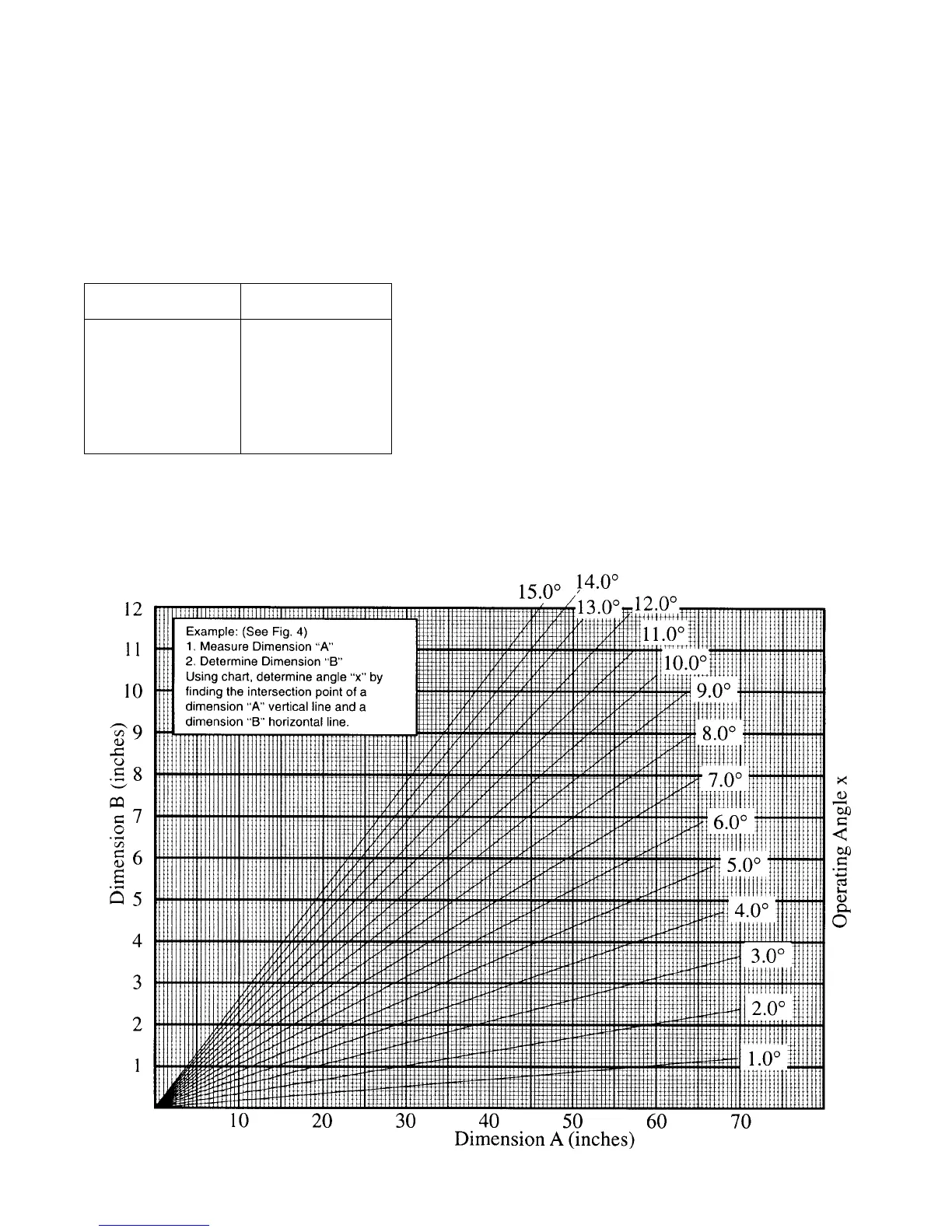

ANGLE CHART
FOR DRIVESHAFTS HAVING AN ANGLE IN THE TOP VIEW
