Diamond DA435HA - Oil Cooling System

DA435HA: 4-2

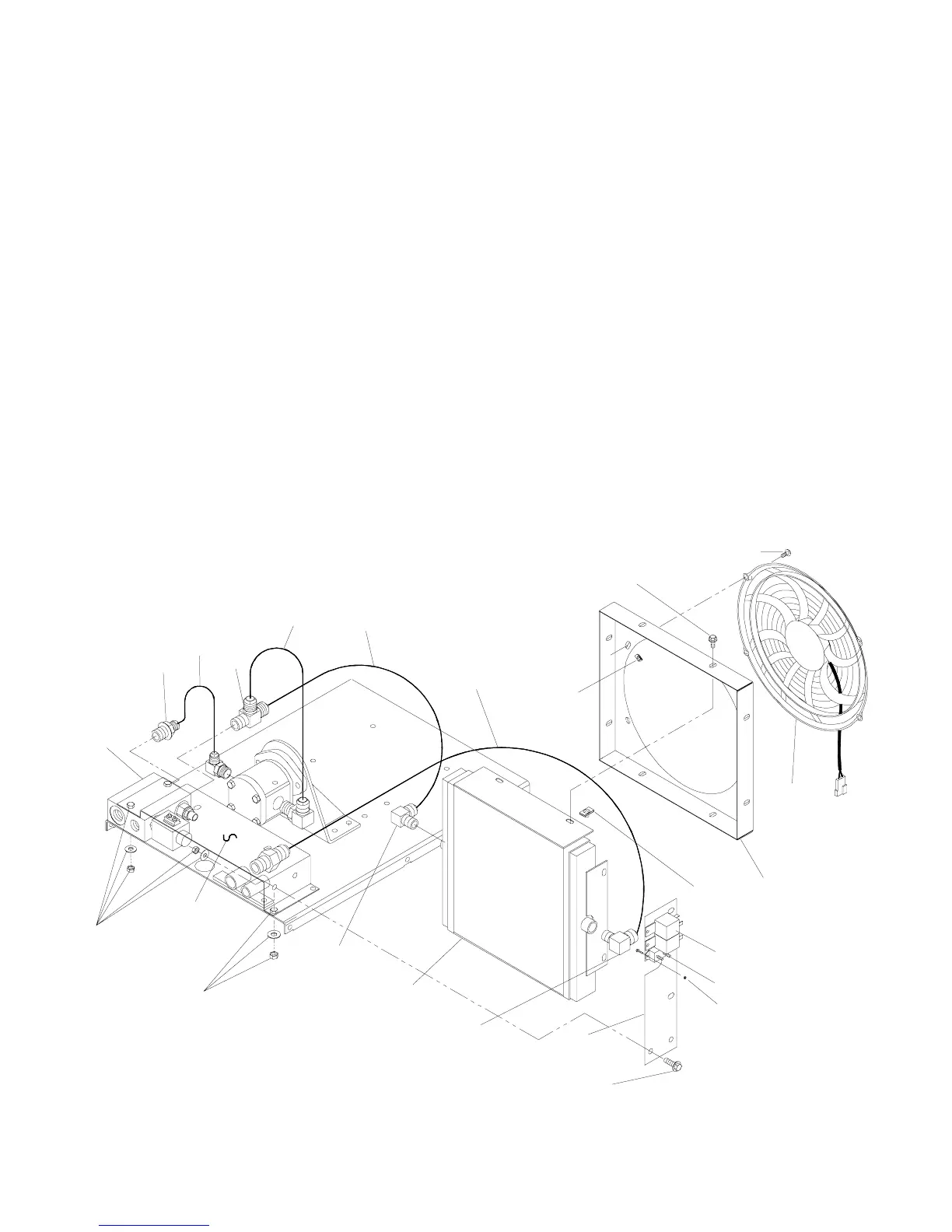

OIL COOLING SYSTEM (200057)
ITEM PART NO. DESCRIPTION QTY
200057 OIL COOLING SYSTEM 1
C1 80021 KIT HYD BLK N.O. SLND 1
301996 BLOCK-HYDRAULIC VALVE 1
301997 SOLENOID-HYDRAULIC 12VDC N.O. 1
301998 VALVE-RELIEF PILOTED SPOOL 1
C2 970508-106 CONNECTOR 1/2JIC 3/4SAE 1
C3 975508-019 HOSE ASM 1/2X19 SXE 1
C4 976512-1212 TEE 3/4NPT 3/4JIC MALE RUN 1
C5 975412-021 HOSE ASM 3/4X21” 2
C6 975412-029 HOSE ASM 1/2X29 SXS 1
C7 961504-090 NUT 1/4-20 TINNERMAN 4
C8 929705-075 BOLT 5/16-18X3 WHIZLOCK GR5 12
C9 974604-088 BOLT 1/4-20 HEX W/PL WASHER 4
C10 301577 FAN PUSHER 1
C11 300444 TAPE 1/16X3/4 CLOSED CELLO 2FT
C12 301434 SHROUD-OIL COOLER/FAN ASM 13 1
C13 961505-140 NUT 5/16-18 TINNERMAN 8
C14 300211 RELAY-POWER 2
C15 300909-025 CIRCUIT BREAKER 25A 1
C16 931600-050 SCREW 6-32X1/2 MACHINE 4
C17 973700-063 NUT #6-32 HEX NYLOC 1
C18 301433 BRACKET-OIL COOLER SIDE 35/17 1
C19 960212-050 ELBOW 1/2NPT 3/4JIC 2
C20 300836 OIL COOLER 12X13.5 1
C21 938205-071 WASHER 5/16 FLAT 6
C22 924305-166 NUT 5/16-18 NYLOC GR5 6
C23 301432 SUPPORT-OIL COOLER 35/175 RS 1
C24 929105-275 BOLT 5/16-18X2-3/4 HHGR5 2
C9
C8
C7
C6
C5
C5
C4
C3
C2
C1
C24
C21
C22
C23
C8
C21
C22
C19
C20
C19
C18
C8
C14
C15
C16,C17
C13
C10
C11
C12
00200057.01: 20010925
M10029
