Diamond GVV-1 - White LEDs Replacement; RGB Receptor Replacement; Thermoregulator Replacement

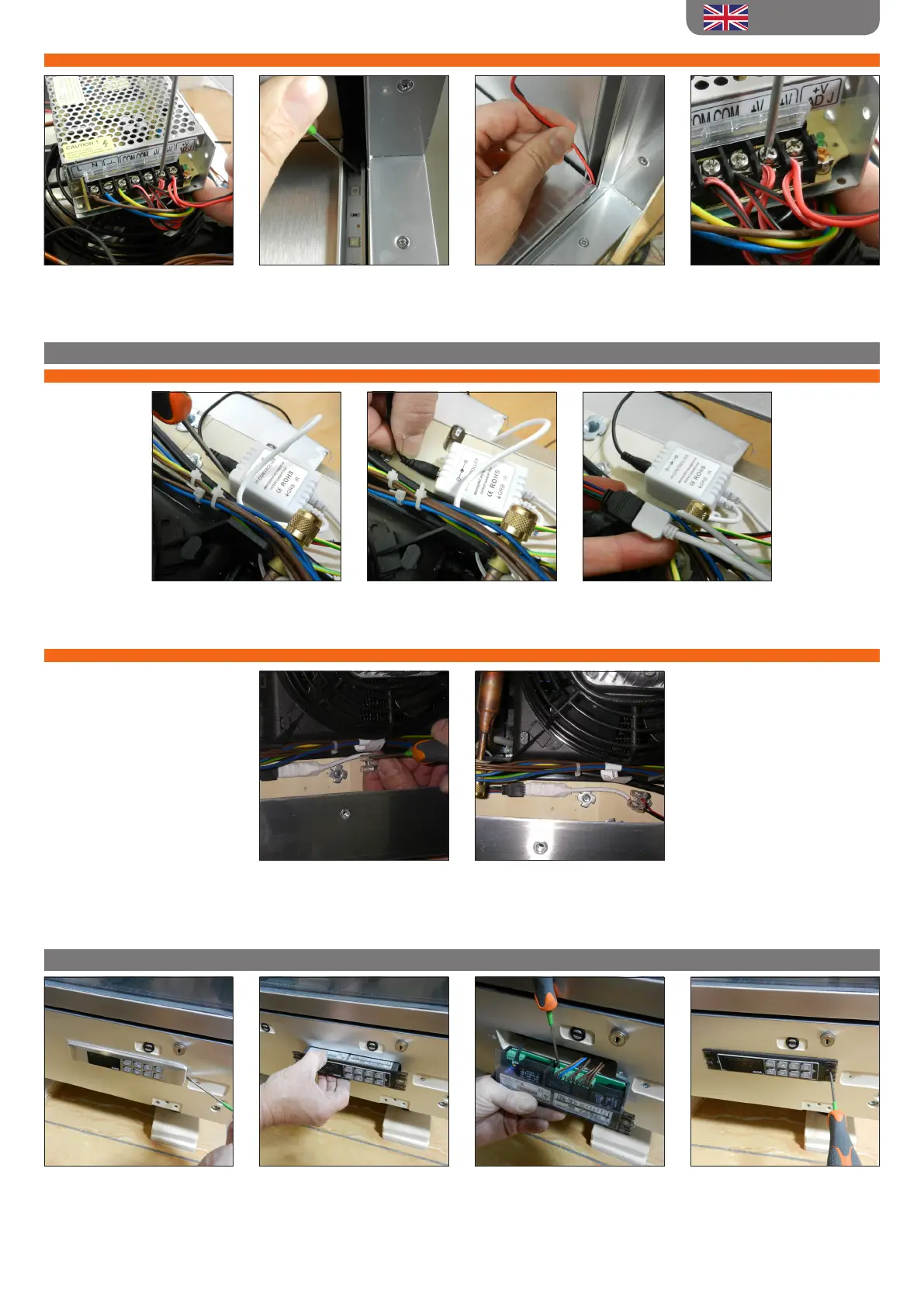

F. RGB RECEPTOR REPLACEMENT (OPERATIONS ON POINT A ARE TO BE ACCOMPLISHED FIRST)
INFRARED RECEPTOR
RADIO RECEPTOR
G. THERMOREGULATOR REPLACEMENT
G1. Extract the metal
coverunfasteningthe lateral
spring (use a small at
screwdriver)
G2. Unscrew , extract the
thermoregulator and
disconnect the cables
G3. Connect the cables to the new
thermoregulator in the same
positions orrefer towiring table
G4. Install the new thermoregulator
and apply the cover lid xing
one spring at a time
WHITE LEDS
E5. Disconnect the broken LED
strips from the power supply
E6. Extract the broken LED strips
from the guide, operating with
a screwdriver
E7. Insert the new LED strips in the
aluminium proles and extract
the 4 cables from the holes in
the basin
E8. Reconnect to the power supply
matching the polarity
F1. Unscrew the screws holding the
receptor to the tank
F2. Disconnect thepower supply,
the leds connector andextract
the infrared receiver from
thespecic hole
F3. Reposition the new receptor
and connect the power supply
and the LEDS
F4. Disconnect the power supply
wires and the leds connector
F5. Repositionthe new receptor
and reconnect
ENGLISH
