910Ef Owner’s Manual
11

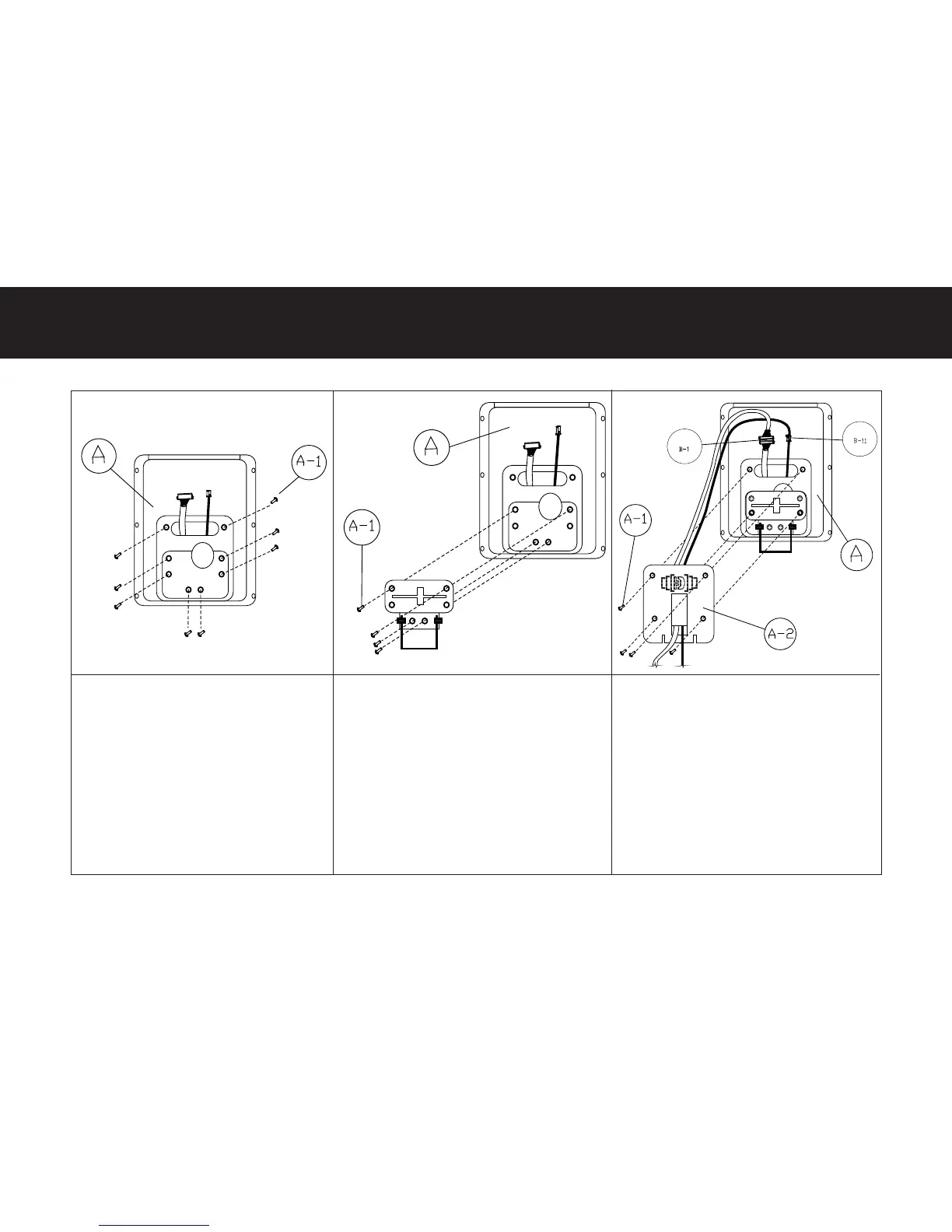

• Remove all 8 screws (A-1) from the
back of the console (A).
ASSEMBLY INSTRUCTIONS
• Install the top 2 screws (A-1) through the
lt moun ng plate and screw into the
back of the console (A).
• Install the bo om 2 screws (A-1) through
the lt moun ng plate and screw into the
back of the console (A).
• Feed the Wire Harness (B-1) cable and
Heart Rate Console Wire (B-11) through
the hole in the back cover (A-2) and
then connect both to the matching
console connector. Take care to ensure
the connec on is fi rm. Feed loose excess
cable back into mast.
• Posi on Console Back Cover A-2) into
posi on and install the remaining 4
screws (A-1) into the console (A).
X 4
X 4
Connect
Here
Connect
Here
To Next Page
