EN COMPONENTS
DiBO 18
6 SPRAY EQUIPMENT

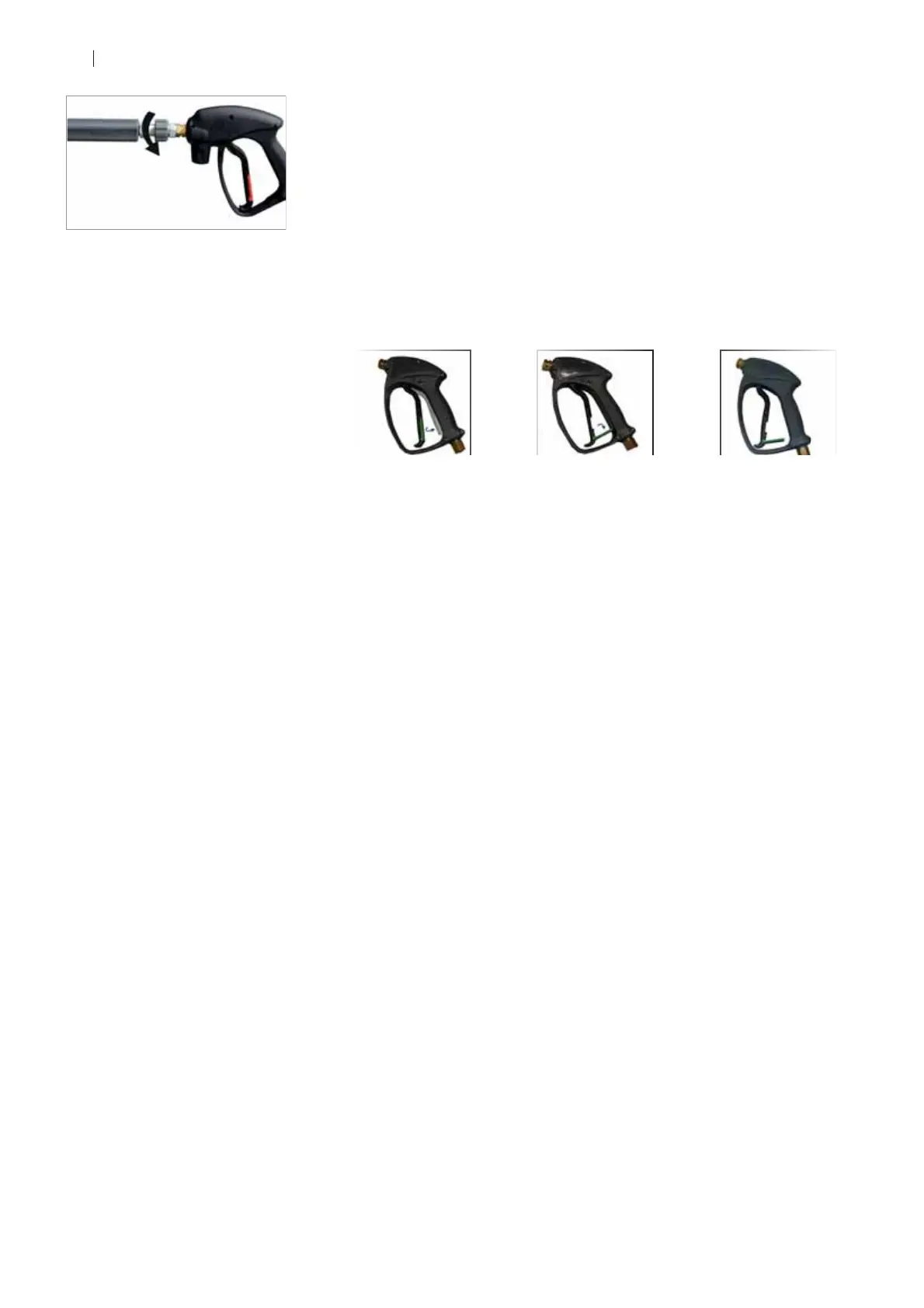

The high pressure hose is coupled (rotated) on the spray gun.
Mount (tighten) the lance to the spray gun.
Because of that you have a great extend of free movement during the spraying
activities.
Do not spray: release the lever in the handle.
Spraying: push the lever in the handle.
Spray protection: release the blocking pawl in the handle.
The machine is standard provided with a single spray lance.
At use of hose reel(s) (option): unroll the hose completely to obtain optimal
functioning.
Check regularly, during spraying activities, whether the lance
coupling is still fixed to the spray gun.
7 PRODUCT INJECTOR
The cleaner is equipped with an injector below to add (chemicals) product to
the water (suction). When the spray activities are finished:
The injector need to suck clean water for a while to rinse the system
suciently.
Put the mixing tap on position 0 to prevent a back flow of product to the water
tank. The injector works suciently when the suction hose has been dropped
suciently under the fluid level in the tank.
Before taking the unit into progress : check if the used product is
suitable to use with the materials of the cleaner. At any doubt; contact
the vendor of the product or recognized DiBO- branch / technician.
8 FUEL TANK
The fuel tank can be filled by loosening the fuel cap. The fuel tank has an air
release (on top), a lower suction line and a return line at the top. The tank is also
equipped with a drain plug at the bottom of the tank. The tank has a capacity of:
30 litres. Pay attention: during the filling procedure of the tank , the maximum fill
value should not be exceeded (see technical data). (see “Technical data” on
page 28 ).
Important: at the filler cap a venting (air release) hole
must be provided with a diameter of 6 mm. So check
each filler cap on presence of a venting hole.
9 WATER TANK
The water tank has a volume of 25 litres & is equipped with a float system to
disconnect the water supply through the float valve when the tank is filled.
Below the water tank is provided with a run-dry detection.
10 SAFETY VALVE
When the water pressure rises above the adjusted safety pressure, the
pressure relief valve opens and the water flows out (pressureless) at the bottom
of the cleaner.
11 WATER FILTER STRAINER
The water filter (black) is situated at the bottom of the cleaner and can be
cleaned easily (or the filter mesh can be replaced easily).
Pay attention on possible draining of the water tank
at replacing/cleaning of the filter(mesh)!
