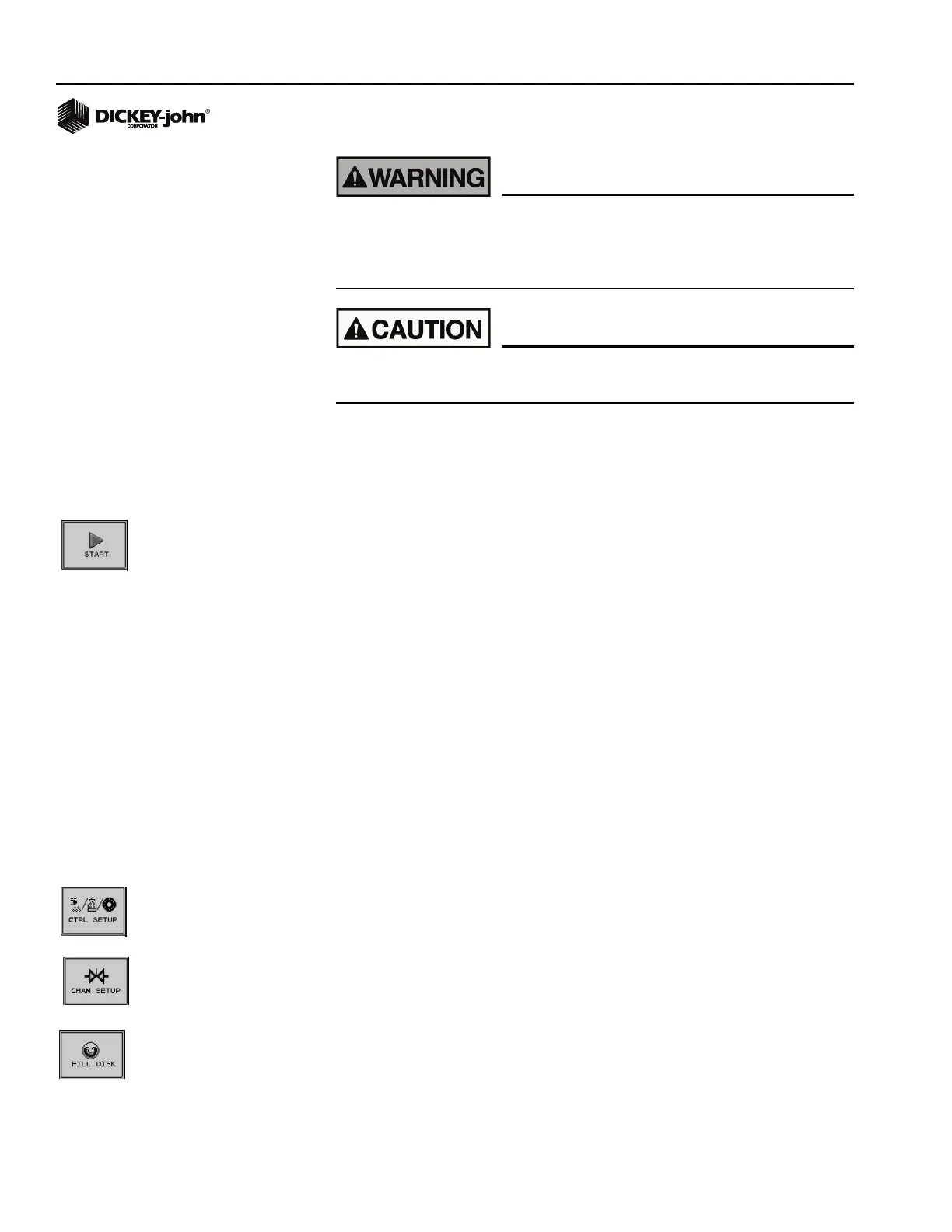

68 / CONTROL CHANNEL SETUP
When the START key is engaged, the machine will become
operational. All necessary precautions must be taken to ensure
user safety. Failure to practice all necessary caution may result in
serious injury or death.
Hoppers are assumed to be empty for this calibration. If they are
loaded, material will be dispensed onto the ground.
To perform the Control Channel Valve Calibration:
1. Move the implement to the “raised” position.
2. Apply the tractor brakes and lock in the applied position.
3. Put the transmission in “park” or in a locked, neutral position.
4. Start the tractor and engage the hydraulic system, i.e. PTO or auxiliary
lever.
5. Run the engine at normal operating speed until the hydraulic fluid is at
normal operating temperature.
6. Press the Start button.
7. Turn the master switch to the ON position.
8. The valve calibration will immediately start.
9. Keep the hydraulics engaged until the calibration is complete. The
calibration may take a minute up to several minutes. Each calibration
step is monitored on the lower left corner of the display.
10. When the calibration is complete, the control shuts down automatically.
All calibration data is automatically stored.
FILL DISK
NOTE: Top-level fill disk will run all
active planter control and
granular seeding control
channels.
Fill Disk is used to fill the seed meters after a variety change or after power
up on air-actuated planters with seed to allow instant seed flow when the
control is turned on. Pressing the Fill Disk button will rotate the seed
meters one time, then stop.
FILL DISK FOR A CONTROL CHANNEL
1. Press the Control Setup button.
2. Press the Channel Setup button.
3. Press the Fill Disk button.
4. Raise the implement.
5. With brakes locked and transmission in the park position, start the
engine.
6. Engage hydraulics and run engine at normal speed until hydraulic fluid
is at operating temperature.
