dideco D 905 EOS - Page 2

1. Clamp
1

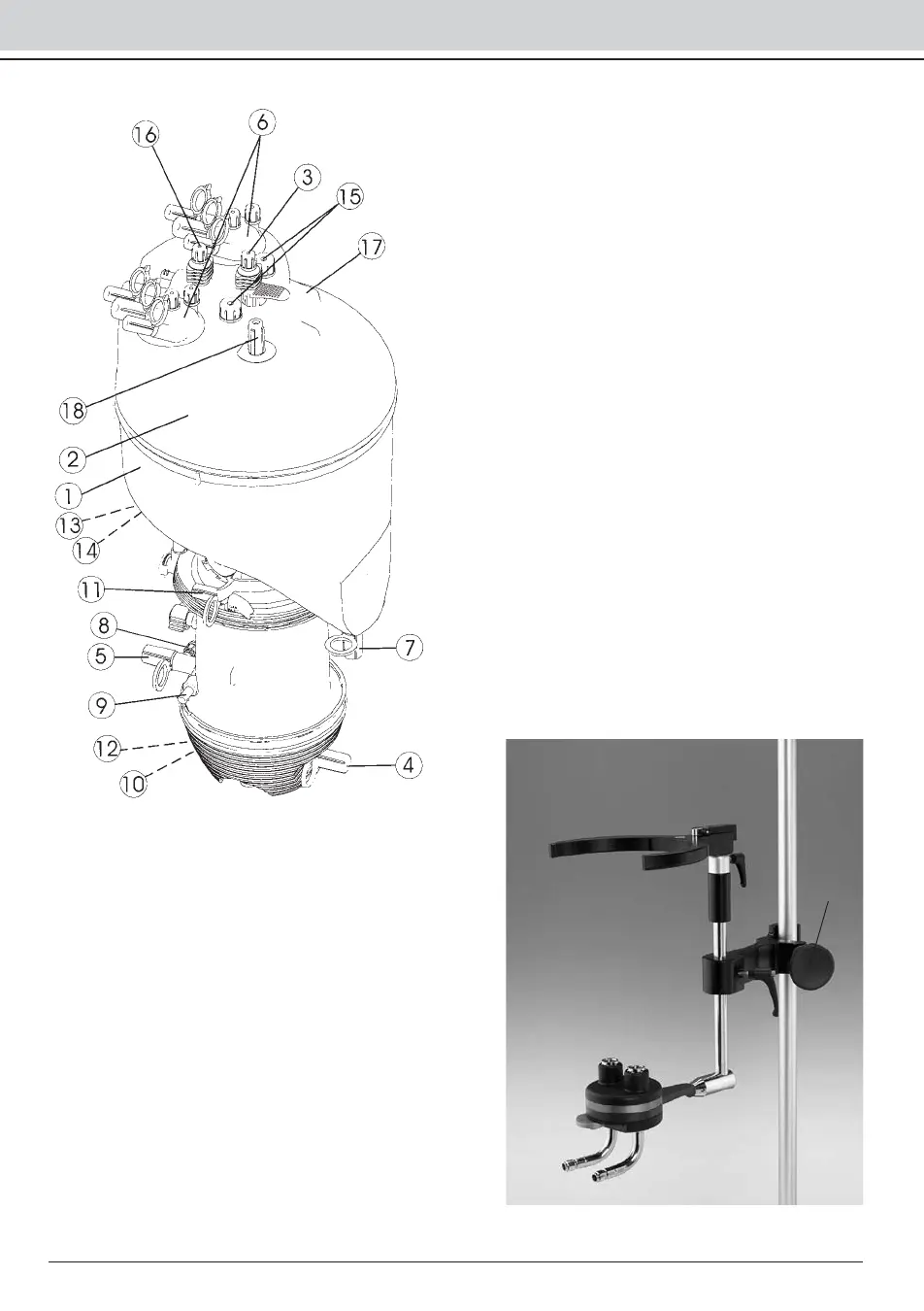

Fig. 1
1. Venous Reservoir
2. Cardiotomy Reservoir
3. Connection Key
4. Venous Blood inlet: 3/8” I.D.
5. Arterial Blood outlet: 3/8” I.D.
6. Turrets
7. Venous Cardiotomy Reservoir outlet: 3/8” I.D.
8. Arterial Sampling Luer
9. Arterial temperature connector Y.S.I. 400
series compatible
10. Venous temperature connector Y.S.I. 400
series compatible
11. Gas inlet: 1/4” I.D.
12. Gas Escape connector
13. Venous return connector: 1/2” I.D.
14. Venous Sampling Luer
15. Cardiotomy bypass Port
16. Quick Priming Port
17. Pressure Relief Valve
18. Vent connector
Fig. 2
