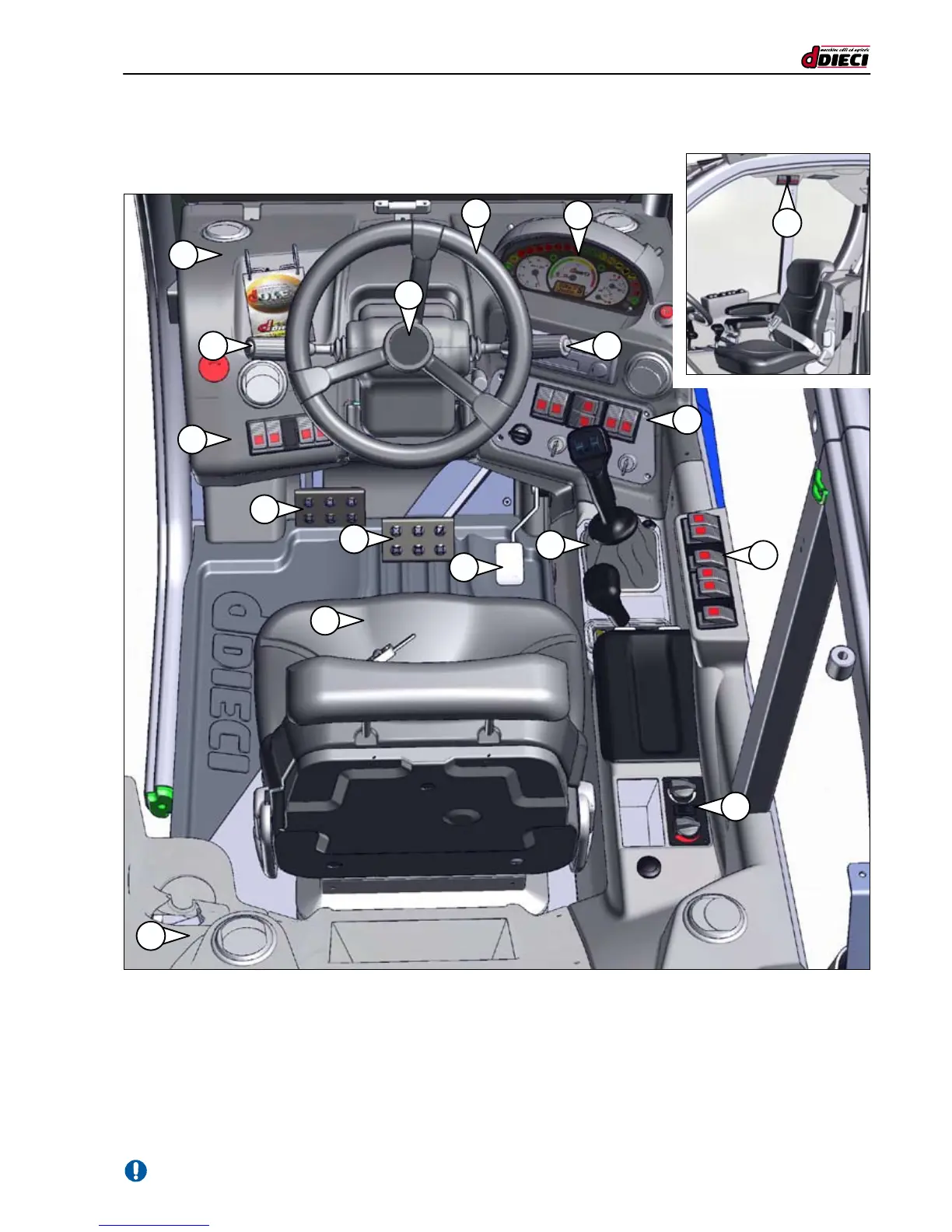

GETTING TO KNOW THE PARTS INSIDE THE CAB
(g.26/C)
6
16
5
13
1. Dashboard with front air-vents
2. Dashboard with rear air-vents
3. Adjustable steering shaft
4. Left dashboard
5. Right dashboard
6. Upper dashboard
7. Lever dashboard/Joysticks
8. “INCHING” pedal
9. Brake pedal
10. Accelerator pedal
11. Steering wheel
12. Gear lever
13. Multi-function lever
14. Central dashboard
15. Seat
16. Right rear dashboard
17. Roof dashboard
