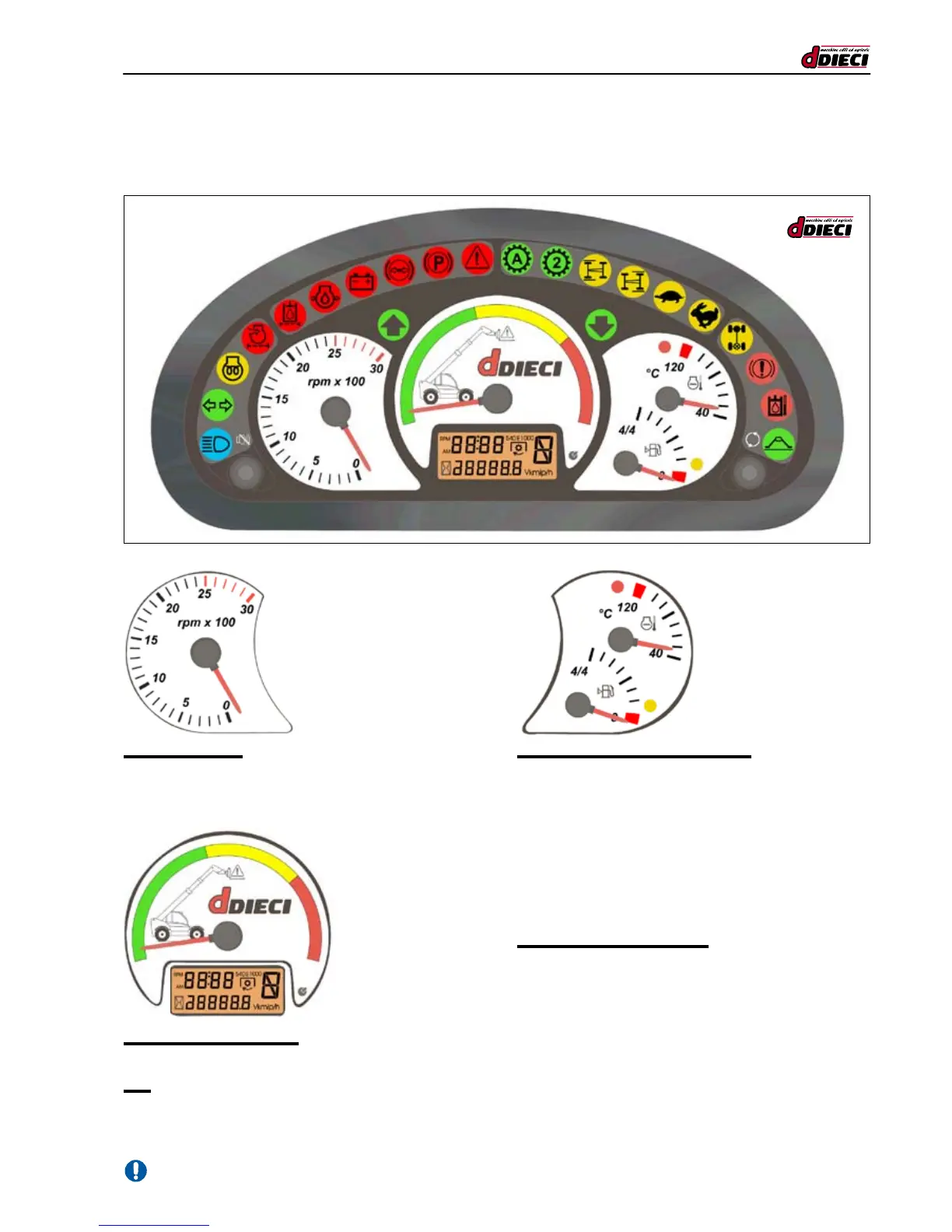

CENTRAL DASHBOARD - INSTRUMENT USE
(g.28/C)
Engine water tempera-
ture instrument
Engine water temperature instrument
During normal use, the temperature hand moves from the
lower part of the instrument (right red mark), stopping when
having reached the rst fourth of the scale. This is the opti-
mal condition for engine operation. If the temperature should
rise excessively, almost reaching the maximum level (upper
red mark), stop the engine and verify the cause. When the
red indicator light switches on, the maximum temperature
alarm is signalled. Operate at low RPMs (max 1500) in order
to avoid damaging the cool engine. Avoid abrupt manoeuvres
and acceleration until the right red mark has been passed.
Fuel level indicator instrument
The instrument hand indicates the quantity of diesel present
in the tank at any given moment. The maximum quantity is
marked by the position of the hand on the left side. The hand
will move down progressively, passing over a red mark which
indicates minimum level (reserve), indicated by the same
yellow light. When the hand completely stops (right side limit
switch), the fuel tank is empty. To avoid damaging the engine,
always keep the pointer above the minimum level.
Engine rev counter
Engine rev counter
This instrument indicates the number of RPMs the engine is
carrying out in that moment.
Load monitoring instrument
The device detects the stability of the vehicle.
LCD
The LCD contains the clock, the hour meter displaying hours
of use of the vehicle, the vehicle toeing state “N” (neutral),1st,
2nd, 3rd, 4th gear engaged.
Fuel level indicator
instrument
Load monitoring
instrument
LCD
