Dieci Agri Farmer - Dashboard Indicators, Instruments, and Safety Systems

C/18
Getting to Know and Using the Vehicle
Mod. Agri Farmer
- ATTENTION: - Read the SAFETY REGULATIONS (contained in this manual) carefully for the safety of all personnel and your vehicle.

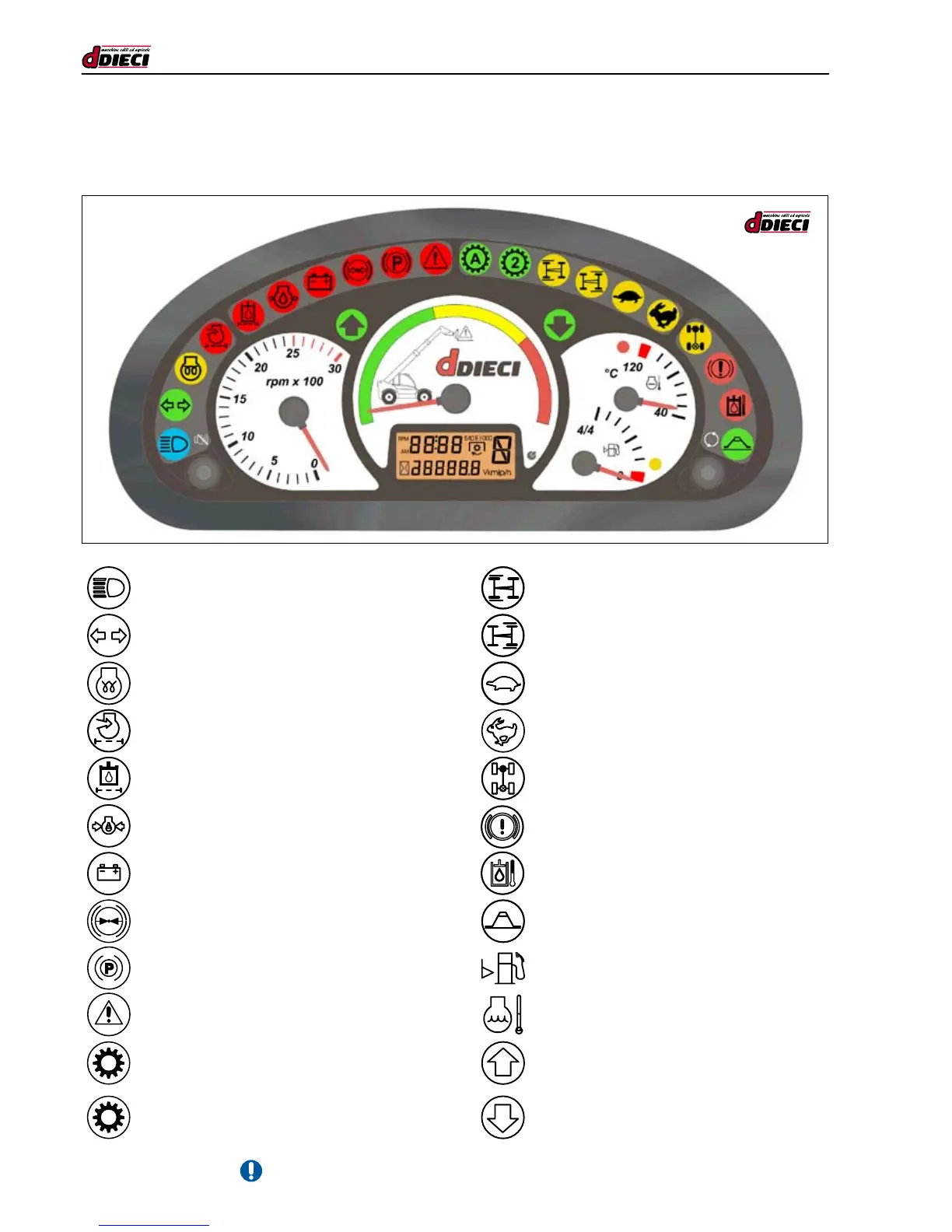

CENTRAL DASHBOARD - INDICATOR LIGHTS
(g.27/C)
(g.27/C)
Hydrostatic oil lter indicator light
(Red)
General alarm indicator
(Red)
Reverse gear indicator light
(Green)
Forward gear indicator light
(Green)
Parking brake light - Parking brake
(Red)
Mechanical gear engaged indicator light
(Green)
Generator indicator light
(Red)
Insufcient pressure in the brake accumulator
indicator light
(Red)
Slow gear
(Yellow)
Fast gear
(Yellow)
Fuel level indicator instrument
Water temperature indicator
Engine oil pressure indicator light
(Red)
Fast speed engaged light
(Green)
Wheels alignment indicator consent
(Yellow)
Rear axle alignment indicator consent
(Yellow)
Rear axle block engagement light
(Yellow)
Parking brake and low brake uid level
indicator light
(Red)
Drive oil temperature light.
(Red)
Outriggers lowered correctly light
(Green)
Direction indicator lights
(Green)
Full beam headlights indicator light
(Blue)
A
Spark plug pre-heating indicator light
(Yellow)
Air lter obstructed light
(Red)
