DieHard 200.71224 - Parts List; Replacement Parts Identification

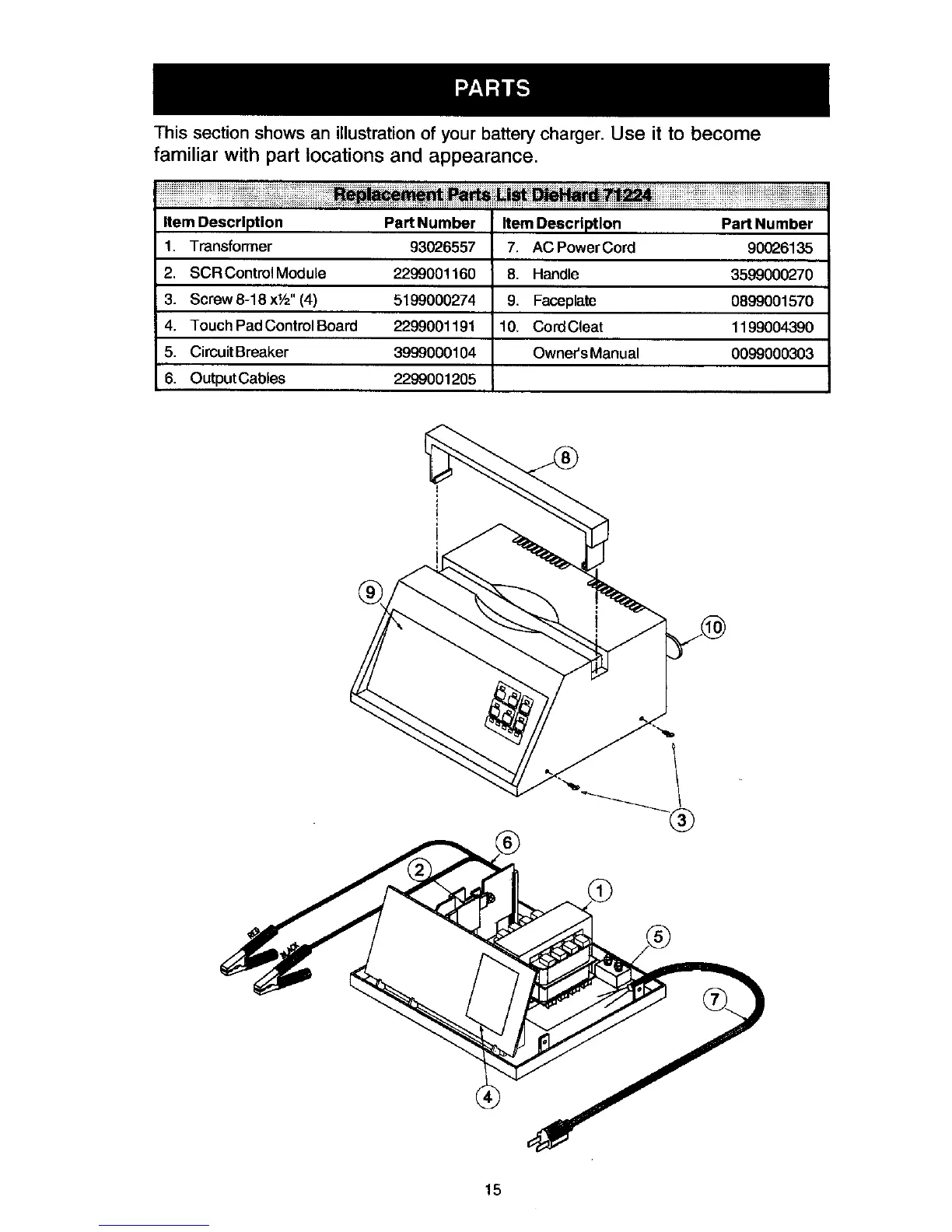

This section shows an illustration of your battery charger. Use it to become
familiar with part locations and appearance.
Item Description
1, Transformer
2, SCR ControlModule
3. Screw 8-18 xl/2" (4)
4. Touch Pad Control Board
5. Circuit Breaker
6. Output Cables
Part Number
93026557
2299001160
5199000274
2299001191
3999000104
2299001205
Item Description
7. AC Power Cord
8. Handle
9. Faceplate
10. CordCleat
Owner'sManual
Part Number
90026135
3599000270
0899001570
1199004390
0099000303
