• 9 •

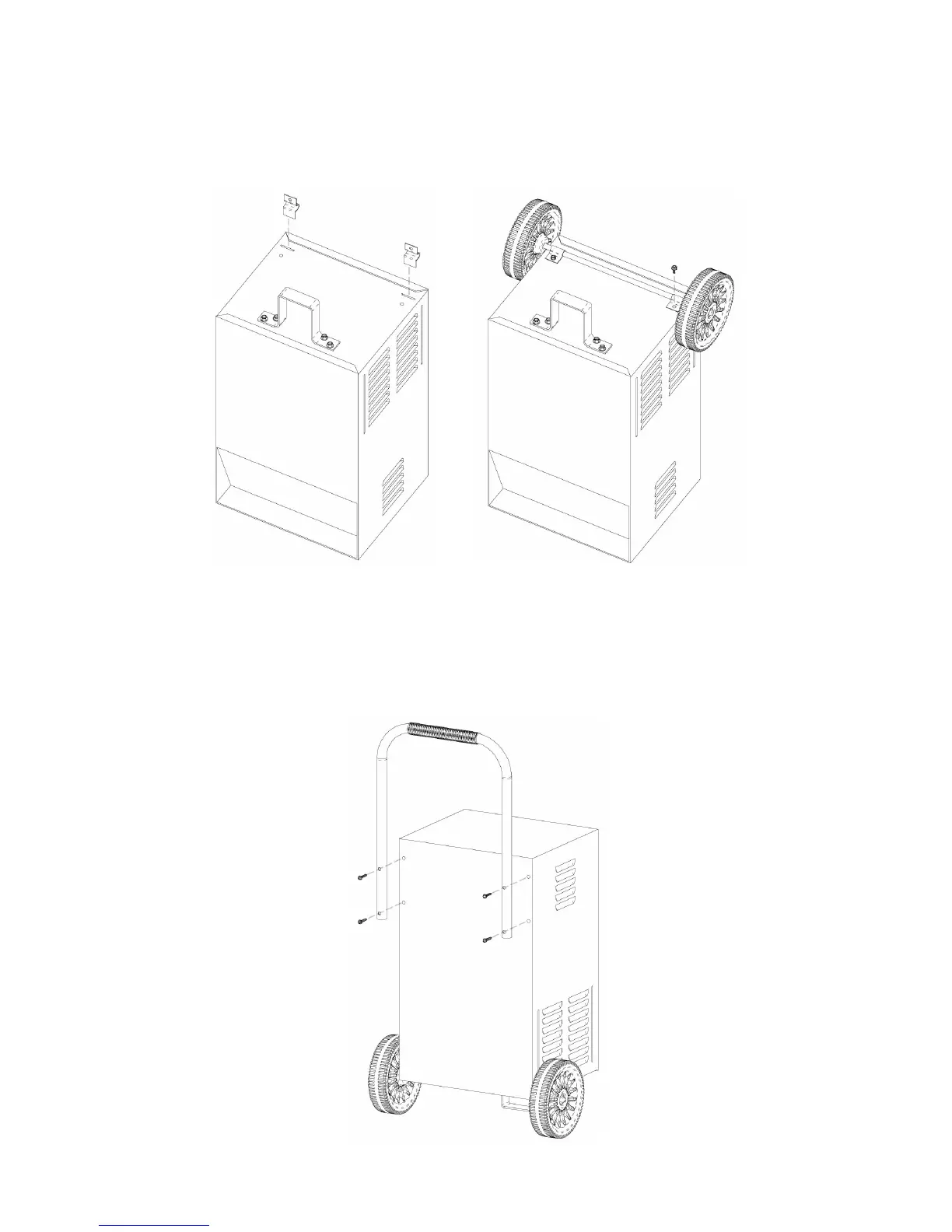

Mount the Axle to the Charger9.4 : Place one end of each bracket into the slot
on the bottom of the charger. Place the axle assembly under each bracket.
Attach the brackets using the two, 10-32 thread cutting screws provided.
NOTE: Be careful not to drop the brackets inside of the charger case.
Attach the Handle9.5 : If the charger came with a plastic grip, slide that onto the
handle until it is centered at the top. Turn the charger right side up onto its foot
and wheels. Align the handle so the screw holes are aligned with the screw
holes on the upper back corners of the charger. Attach the handle using the
four Phillips head screws provided.
