Operating Manual Program Timers Variotime Single and Variotime Twin
Diehl AKO Stiftung & Co.KG, Appliance Europe, Pfannerstraße 75-83, DE – 88239 Wangen
Tel. +49 (7522) 73-0 • Fax +49 (7522) 73-250 • info@diehl-controls.com • www.diehl.com/controls/appliance
Subject to change without notice – issued 04-2015 – page 6/20
2.2 Functional elements
2.2.1 Variotime Single with 7 day program
LC display
⑦
Slide switch for setting the operating
mode:
I = continuous ON
AUTO = automatic program
0 = continuous OFF
⑧
Slide switch for setting times:
position for setting the time of day
and the day of the week
RUN position: clock and automatic
program activated
position: programming mode
activated
button to select the switching points
when in programming mode
or setting the days of the
week
Hour button h for setting the hours
R button (reset) for deleting all settings
Minute button m for setting the minutes
Skip button to immediately reverse
the present operating mode
Instead of the language neutral numbering 1-2-3-….7, the days of the week may also be printed
as English abbreviations (M-T-W-Th-F-S-Su) on the housing rim above the display.
The day button may alternatively be denominated DAY.
The hour and minute buttons h and m may alternatively be denominated HR and MIN.

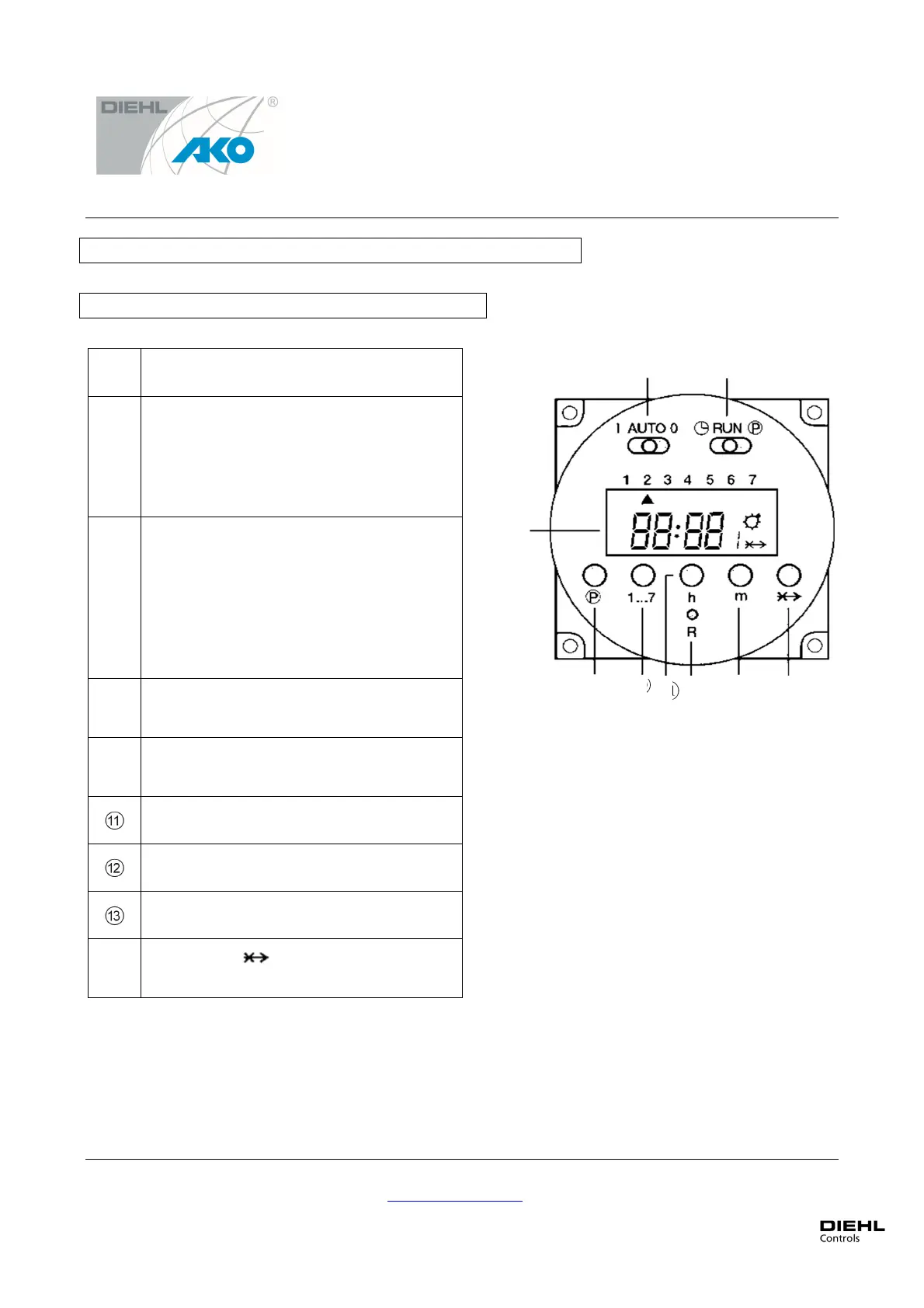

Fig. 5: Functional elements of Variotime Single
with 7 day program
