2.2.2 Variotime Single with 24 hour program
LC display
⑦
Slide switch for setting the operating
mode:
I = continuous ON
AUTO = automatic program
0 = continuous OFF
⑧
Slide switch for setting times:
position for setting the time of day and
the day of the week
AUTO position: clock and automatic
program activated
position: programming mode activated
button to select the switching points
when in programming mode
Plus button for setting times
Minus button for setting times
R button (reset) for deleting all settings
Skip button to immediately reverse the
present operating mode (printed as OVER
RIDE in this version only)

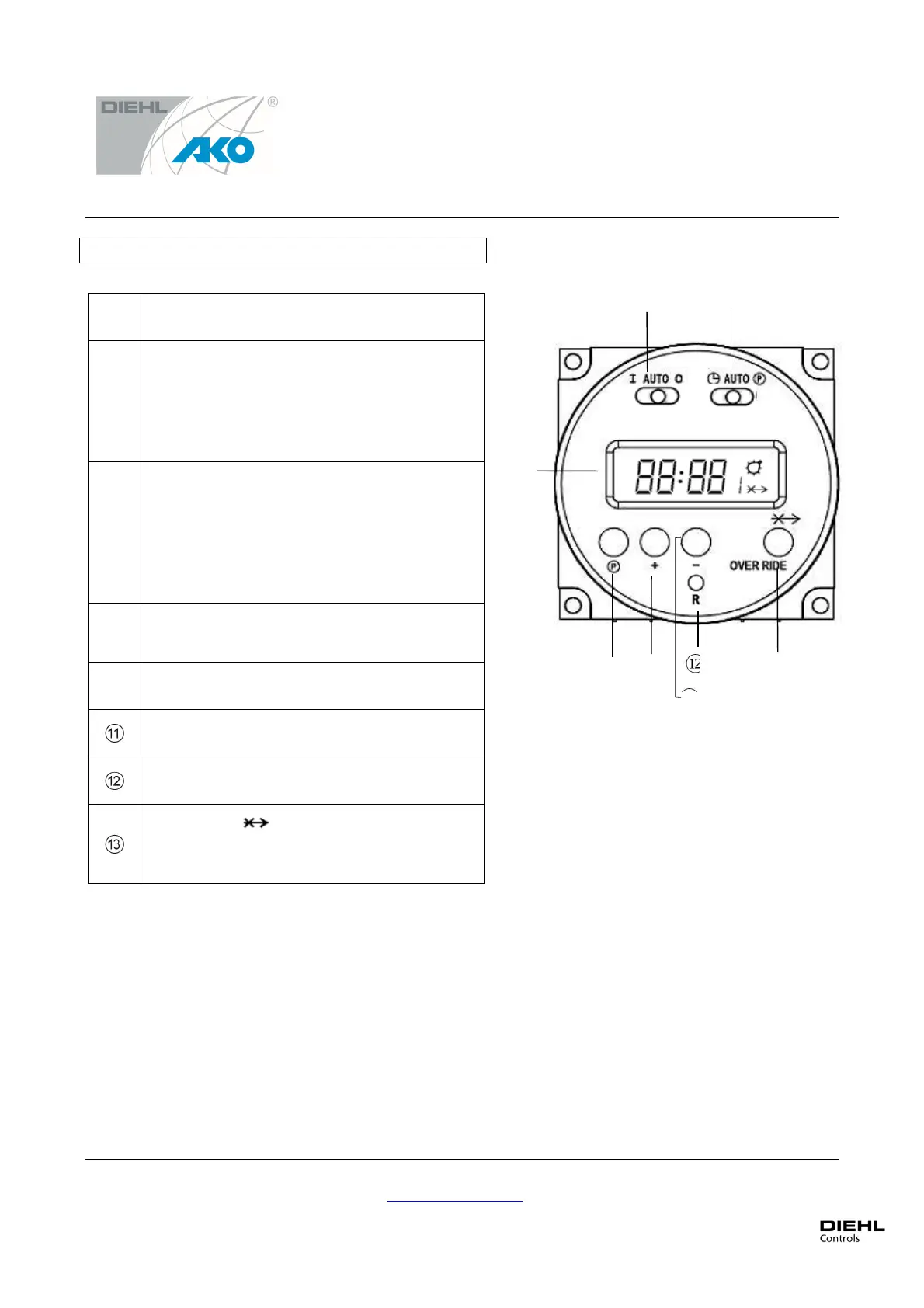

Fig. 6: Functional elements of Variotime Single
with 24 hour program
