34 PM-000251 - Operator’s Manual - PDD-PD50 - June 2022
Optional Extra - CRADLE HITCH
If you have purchased a Cradle Hitch please ensure you read and understand the following operational procedures.
11 Operating Instructions

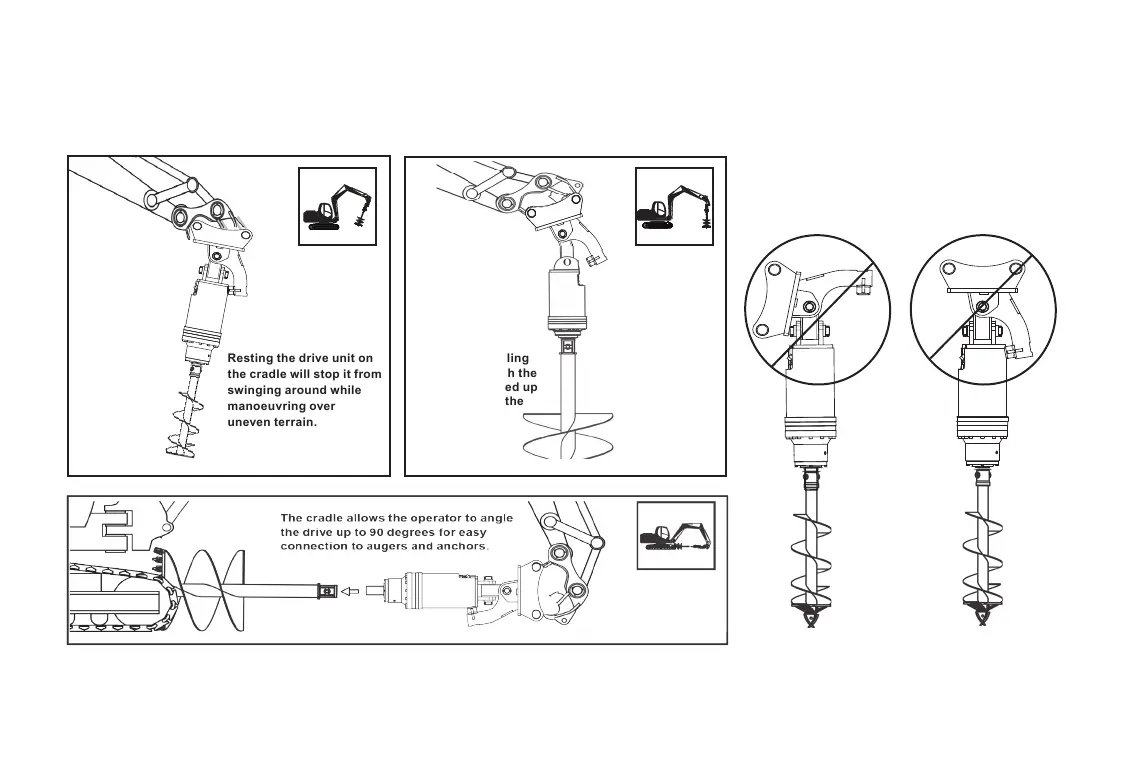

Avoid Pile Installation
When Hitch is Fully
Up.
The correct drilling
operation is with the
cradle positioned up
and away from the
drive unit.
Resting the drive unit on
the cradle will stop it from
swinging around while
manoeuvring over
uneven terrain.
Avoid Pile Installation
When Hitch is Fully
Down.
IGNITION
SWITCH
BLACK NEGATIVE
RED POSITIVE
GROUND
GROUND
24 VOLT RELAY
24 VOLT
BATTERY
10 AMP FUSE
30
86 85
87
To Next Page
