Optional Extra - RYNO HITCH
If you have purchased a Ryno Hitch please ensure you read and understand the following operational procedures.

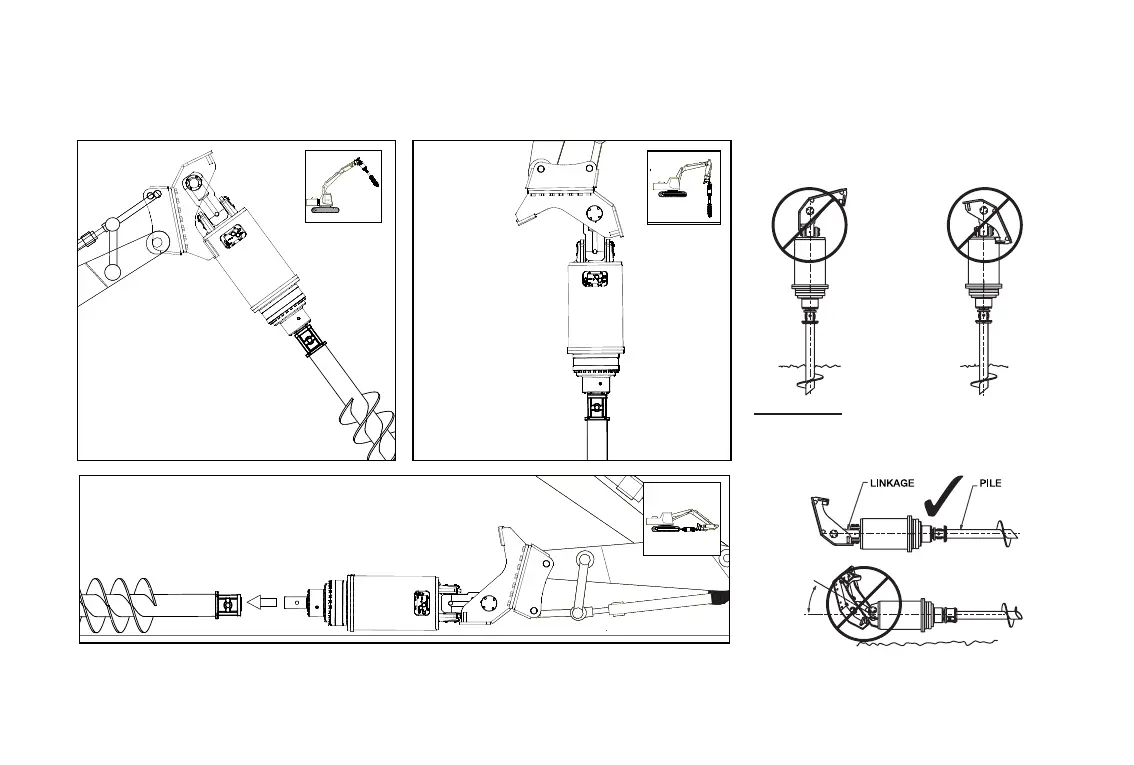

The drive unit must
hang free when drilling
or screw piling.
Ryno Cradle Hitch is
designed to handle
the torsional loads
of anchors and
screw piling.
The rear cradle stops the auger drive
and anchors swinging around while
manoeuvring over uneven terrain.
The front cradle allows the operator to angle the drive up to a 90
degree, for easy connection to Augers or Anchors.
Avoid Pile Installation
When Hitch is Fully Up.
Avoid Pile Installation
When Hitch is Fully Down.
PILE LOADING
During pile loading, make sure that the linkage is
in line with the pile before starting the crowding or
lifting action. Failure to do so may lead to damage.
Over 10˚
11 Operating Instructions
