KIT PART
NUMBER
BOOM EXTENSION
HARNESS LENGTH
TO SUIT MACHINE
(SUGGESTED)
DM-000037 3M (10FT) UP TO 5T EXCAVATORS
DM-000034 6M (20FT) 5T TO 8T EXCAVATORS
DM-000038 12M (40FT) 8T TO 16T EXCAVATORS
DM-000039 15M (50FT) 18T + EXCAVATORS
BOOM
EXTENSION
HARNESS
HYDRAULIC LINES
FOR 2 SPEED DRIVES.

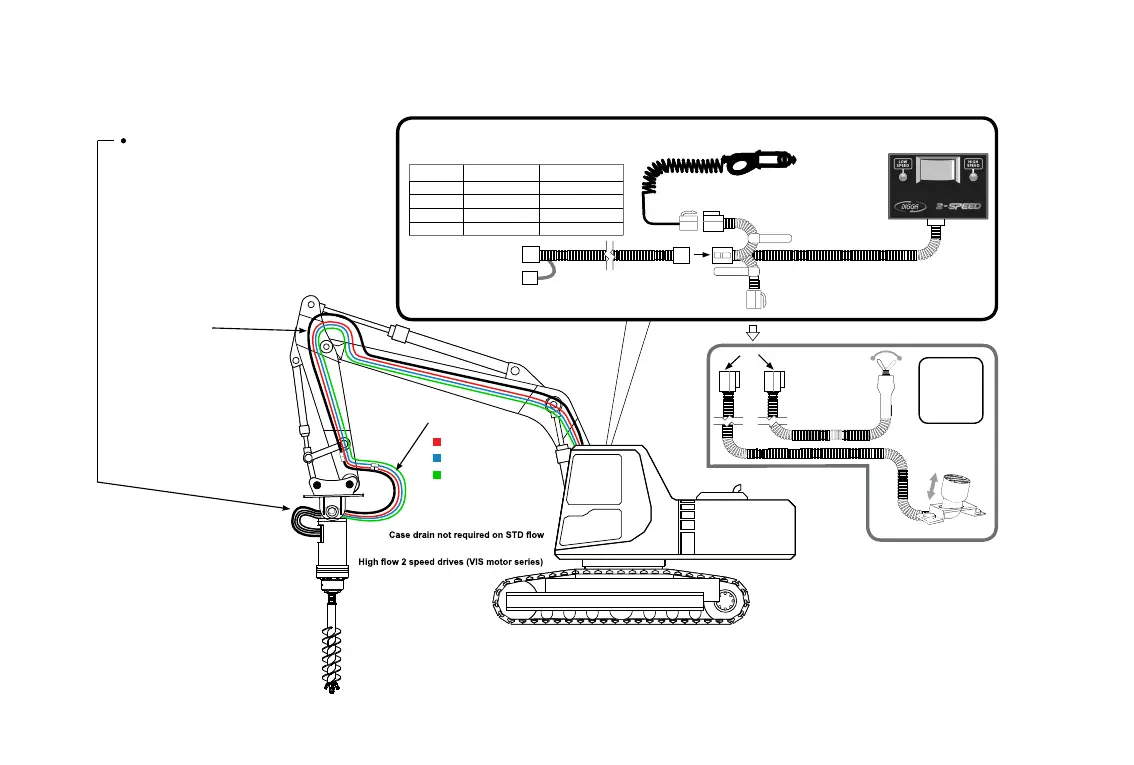

2 SPEED ELECTRICAL LAYOUT FOR PD, DDT AND ADT DRIVES
ALL PURCHASED PD 2-SPEED DRIVES INCLUDE
• 3m (10ft) motor harness from drive unit
(DM-000021)
*Boom extension harness, in cab controller with
cigarette lighter and power supply sold as separate
kits to suit excavator sizes
(1)
*Optional Joystick controls and foot controls sold
separately
(2)
OPTIONAL
2 Position
Toggle Switch
Joy Stick mount
(DM-000026)
OPTIONAL
EXTRAS
TO MAKE
OPERATION
EASIER
OR
OPTIONAL
Floor mounted switch
(DM-000030)
2 SPEED ELECTRICAL LAYOUT
FOR PD, DDT, DLT, ALT & ADT
DRIVE UNITS
PLUG AND GO ELECTRICAL KIT
2-SPEED SWITCH
CONTROLLER
(Part No. DM-000013)
BOOM EXTENSION HARNESS
REMOTE
SUPPLY
OVERALL HARNESS-1500MM
REMOTE
LEAD
500MM
SUPPLY
LEAD
500MM
Cigarette Power Lead 12V/24V
(TC-000012)
(1)
(2)
-Hydraulic Supply
-Return
-Case Drain
(
Back to Excavator Hydraulic Reservoir)
UPDATED: JULY 2016
NOTE:
2 speed drives (2k motor series)
require a case drain
PLUG AND GO ELECTRICAL KITS
