DWL-3000XY & DWL-3500XY Instruction Manual
9

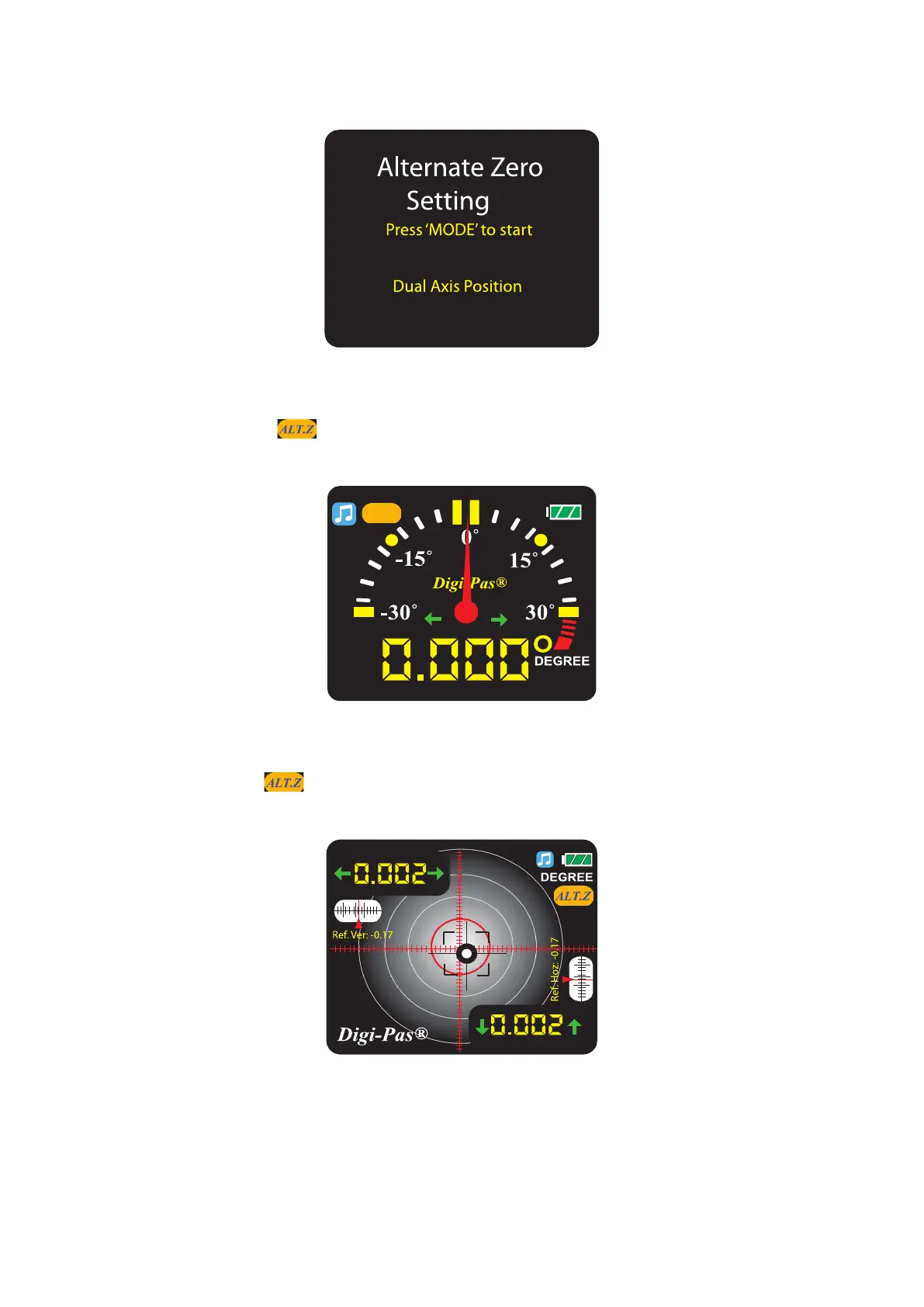

Figure 11. Alternate zero mode display
Single Axis Position : The logo is shown to indicate that the device is in Alternate Zero
mode. A reference line is displayed to indicate the angle.
Figure 12. Alternate zero mode of single axis position
Dual Axis Position : The logo is shown to indicate the device is in the Alternate Zero
mode. A reference crosshair is displayed to indicate the real angle.
Figure 13. Alternate zero mode of dual axis position
