Digi AnywhereUSB Series User Manual

AnywhereUSB User Manual (90001085_F1) 62
PC Configuration
Once the AnywhereUSB unit has been configured to support multiple
Groups, the host PC needs to be configured to request one of the
available Groups on the AnywhereUSB unit in order to establish a
connection with the AnywhereUSB unit and take ownership of the USB
Ports that are assigned to that Group.

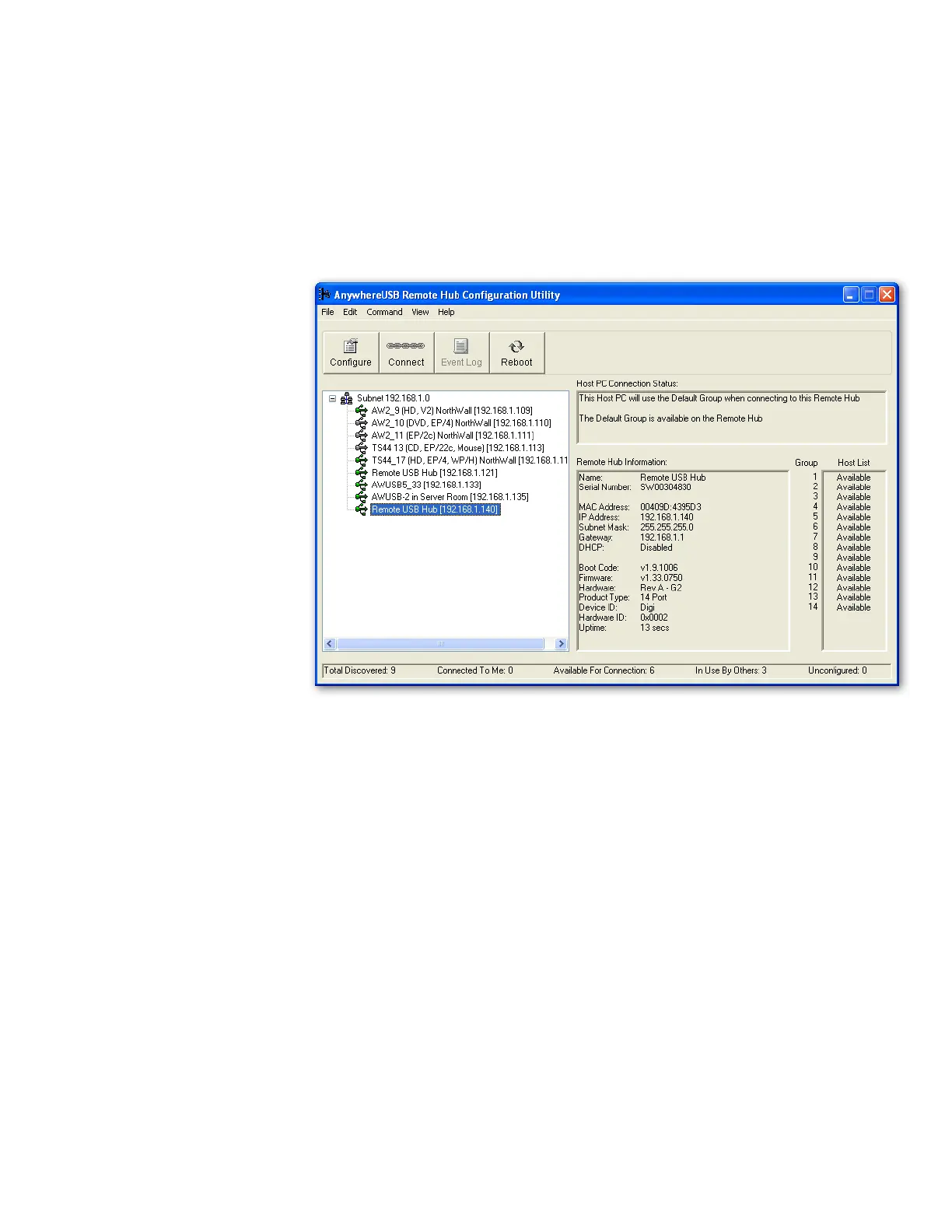

1. The above example is highlighting an AnywhereUSB/14 model
that has 14 Groups configured, each Group providing access to a
single physical USB Port on the AnywhereUSB unit.
2. Select an AnywhereUSB from the AnywhereUSB Configuration
Utility Main Window and then either click the Configure button or
right click on the selected AnywhereUSB and click Configure
from the drop down box.

Digi AnywhereUSB Series Specifications

General

Product Series	AnywhereUSB
Operating Temperature	0° C to 50° C (32° F to 122° F)
Network Interface	Ethernet
Ethernet Ports	1
Power Supply	External
Humidity	5% to 95% non-condensing
Mounting	Desktop, Rack Mount (with optional kit)
USB Ports	14
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
