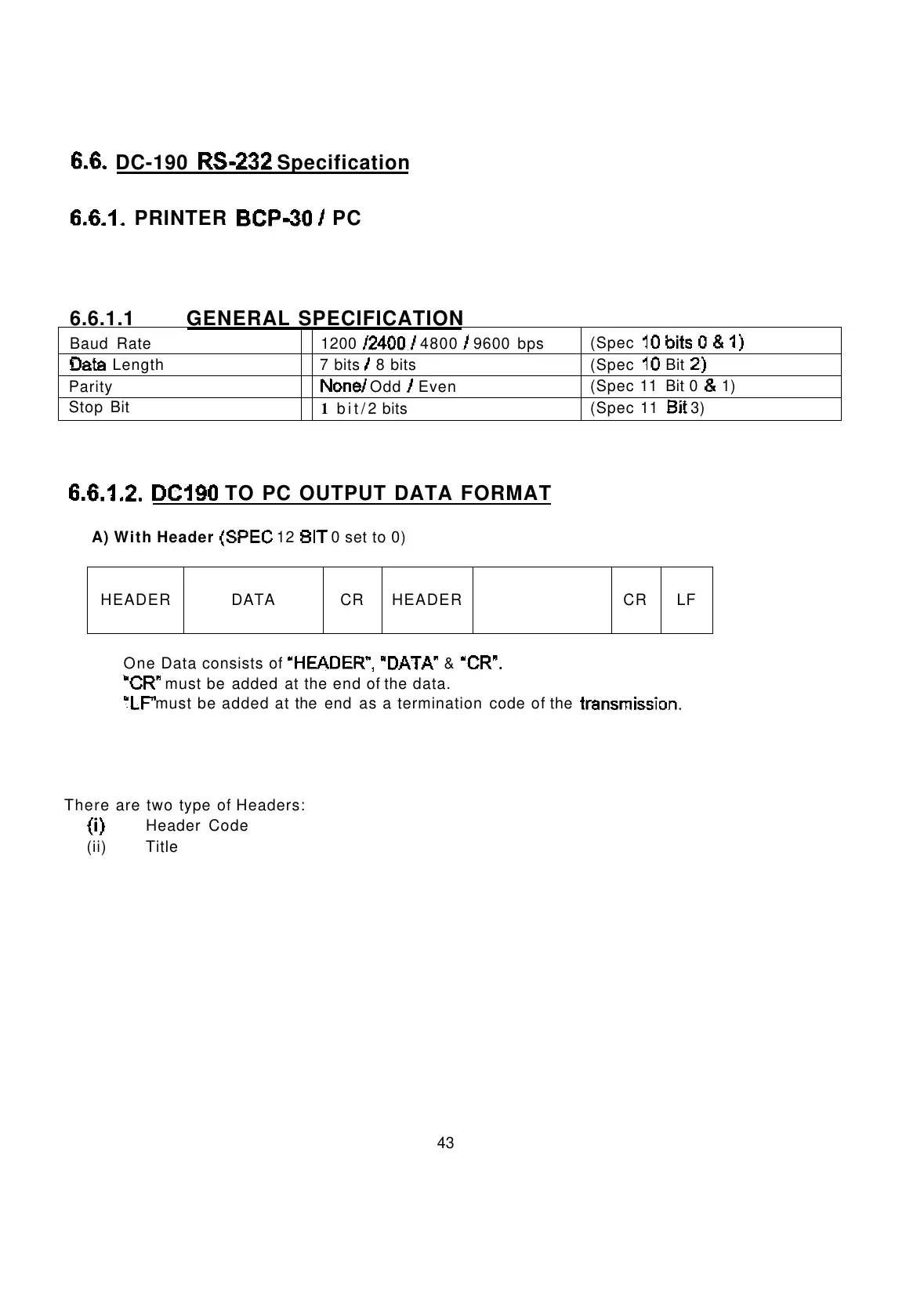

DC-190 Specification
PRINTER PC
6.6.1.1 GENERAL SPECIFICATION
Baud Rate
1200 4800 9600 bps
(Spec
Length
7 bits 8 bits (Spec Bit
Parity Odd Even
(Spec 11 Bit 0 1)
Stop Bit
1 bit/2 bits
(Spec 11 3)
TO PC OUTPUT DATA FORMAT
A) With Header 12 0 set to 0)
HEADER DATA
CR
HEADER CR
LF
One Data consists of &
must be added at the end of the data.
must be added at the end as a termination code of the
There are two type of Headers:
Header Code
(ii) Title
43
