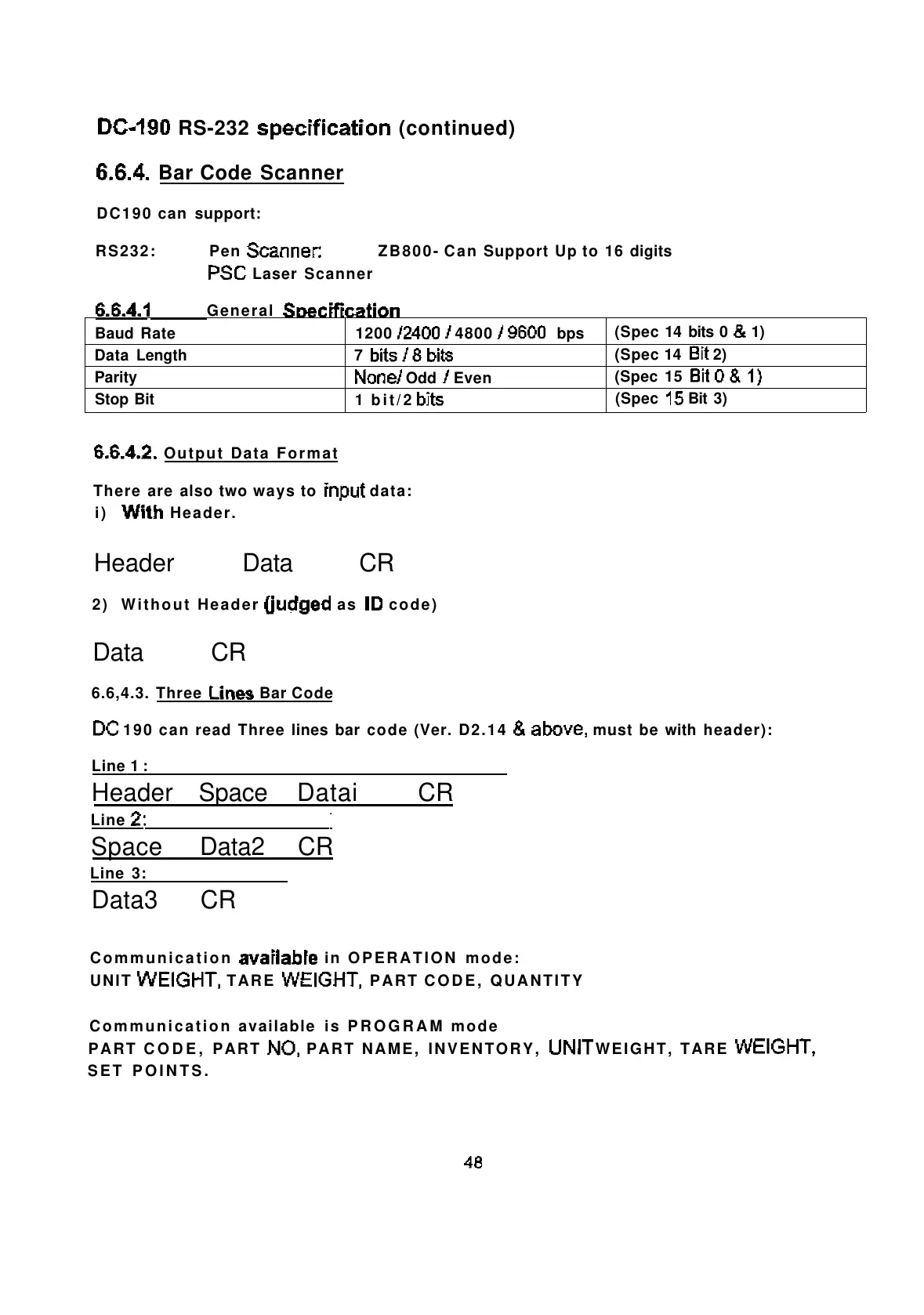

RS-232 (continued)
General
Baud Rate 1200 4800 bps
(Spec 14 bits 0 1)
Data Length 7
(Spec 14 2)
Parity
Odd Even
(Spec 15
Stop Bit
1 bit/2
(Spec Bit 3)
Output Data Format
There are also two ways to data:
i) Header.
Header Data CR
2) Without Header as code)
Data CR
6.6,4.3. Three Bar Code
190 can read Three lines bar code (Ver. D2.14 must be with header):
Line 1 :
Header Space Datai CR
Line
Space Data2 CR
Line 3:
Data3 CR
Communication in OPERATION mode:
UNIT TARE PART CODE, QUANTITY
Communication available is PROGRAM mode
PART CODE, PART PART NAME, INVENTORY, WEIGHT, TARE
SET POINTS.
Bar Code Scanner
DC190 can support:
RS232: Pen ZB800- Can Support Up to 16 digits
Laser Scanner
