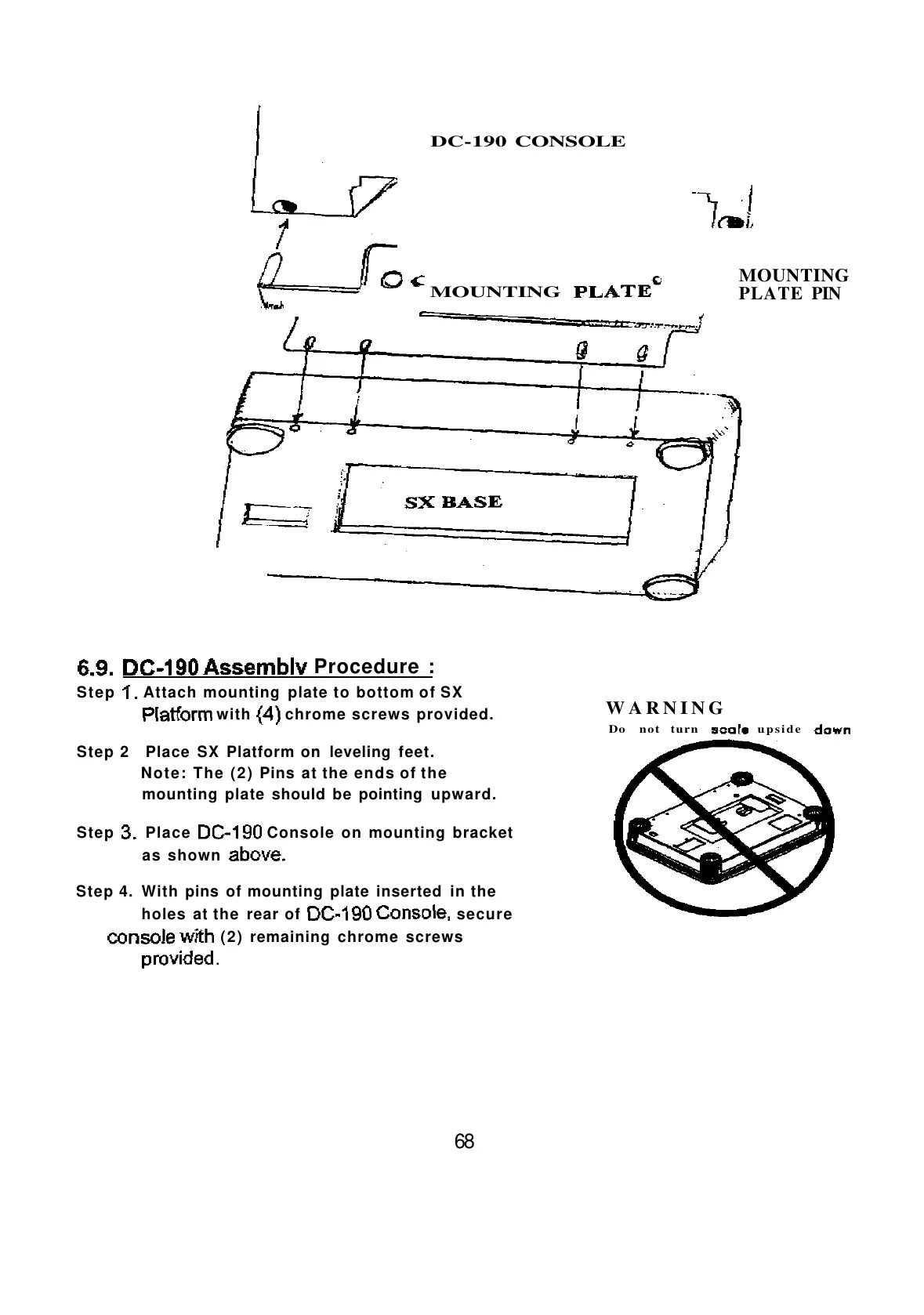

DC-190 CONSOLE
MOUNTING
MOUNTING
PLATE PIN
Procedure :
Step
Attach mounting plate to bottom of SX
with
chrome screws provided.
Step 2 Place SX Platform on leveling feet.
Note: The (2) Pins at the ends of the
mounting plate should be pointing upward.
Step Place
Console on mounting bracket
as shown
Step 4. With pins of mounting plate inserted in the
holes at the rear of
secure
(2) remaining chrome screws
WARNING
Do not turn
upside
68
