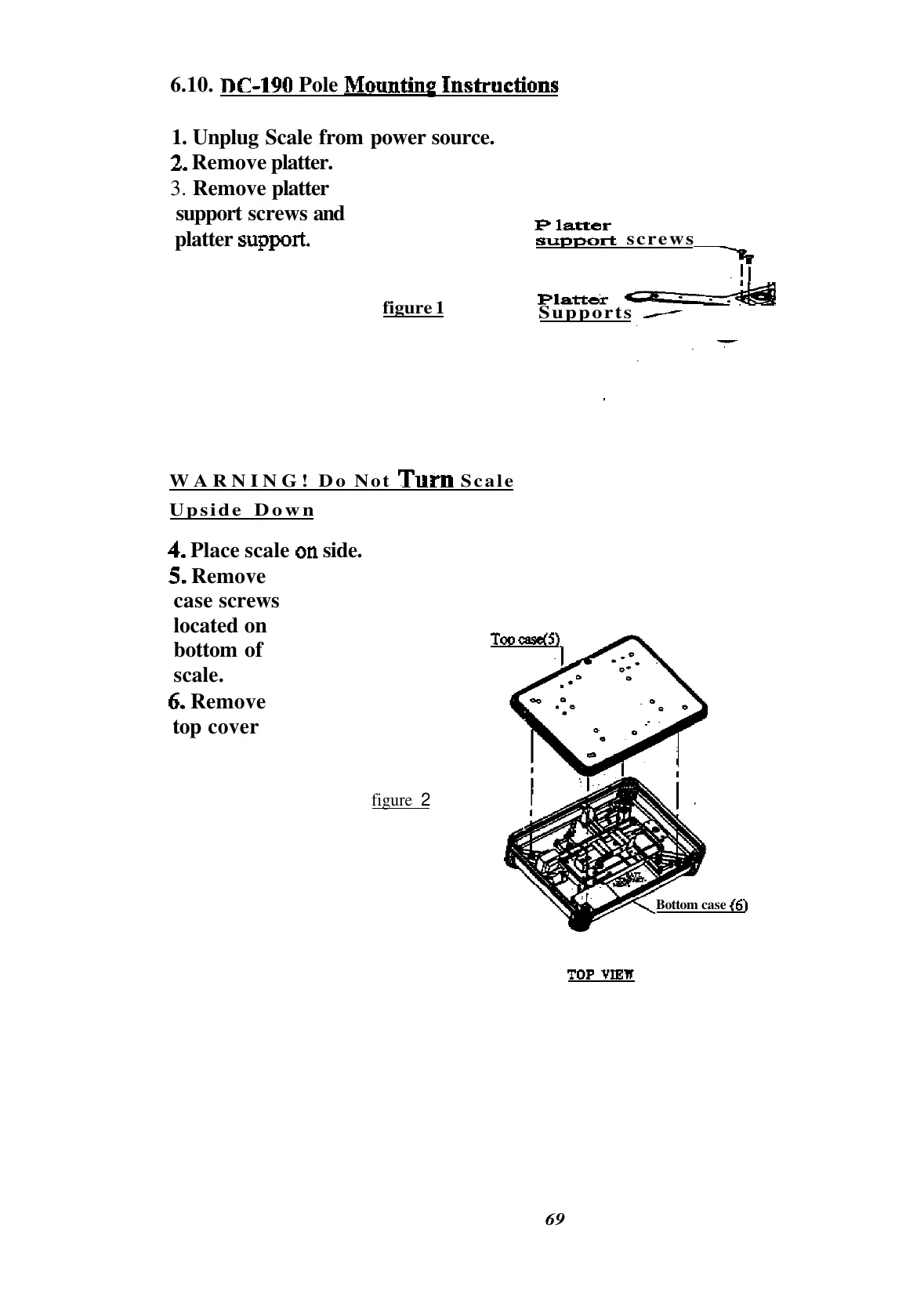

Digi DC-190 - Pole Mounting Instructions

6.10. Pole
1. Unplug Scale from power source.
Remove platter.
3. Remove platter
support screws and
platter
figure 1
screws
Supports
WARNING! Do Not Scale
Upside Down
Place scale side.
Remove
case screws
located on
bottom of
scale.
Remove
top cover
figure 2
Bottom case
69
