2.6 Replacement Parts
The following table lists the part numbers and descriptions of replacement parts available for the DC-530
Counting Scale.
2.7 Scale Dimensions

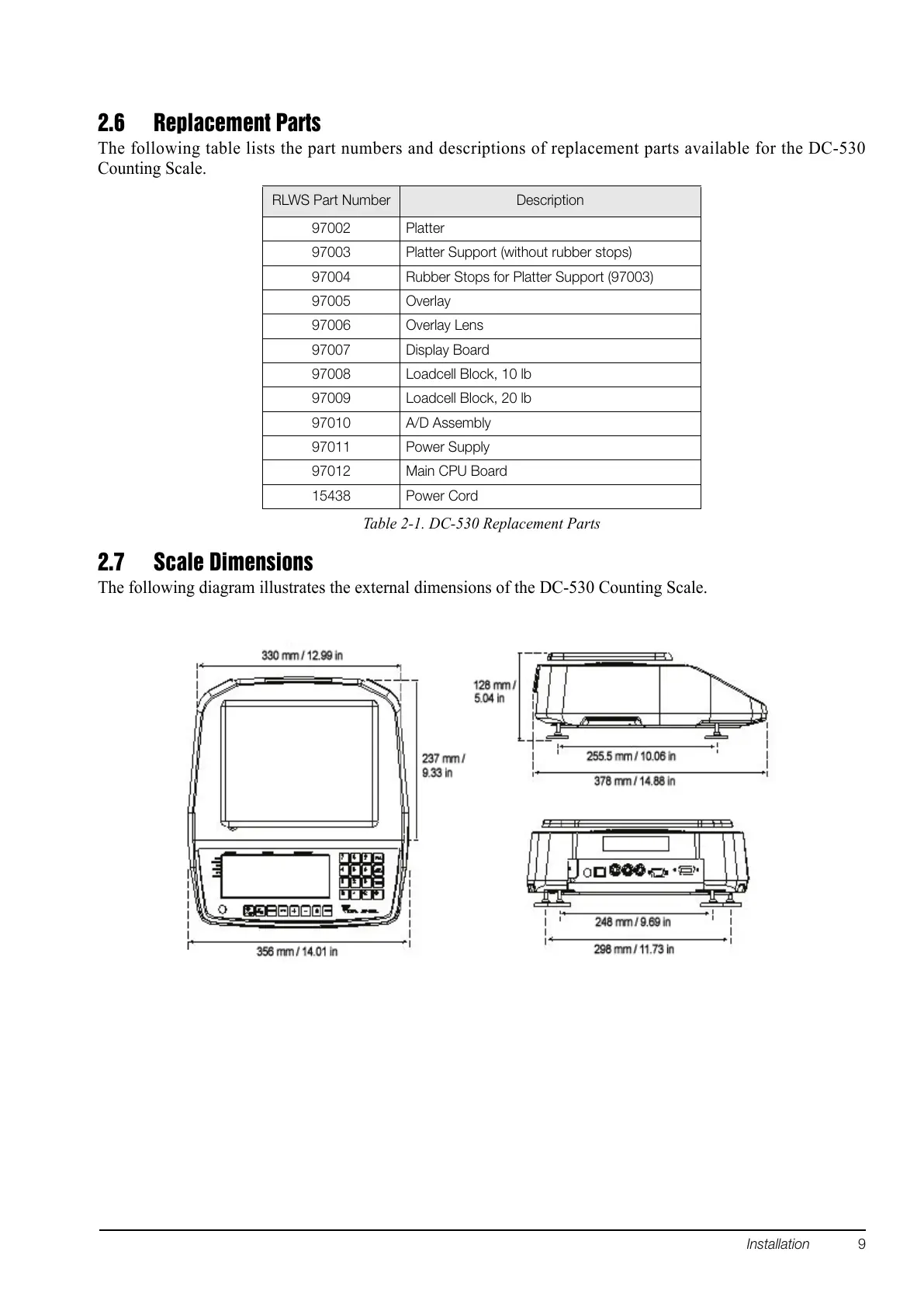

The following diagram illustrates the external dimensions of the DC-530 Counting Scale.
RLWS Part Number Description
97002 Platter
97003 Platter Support (without rubber stops)
97004 Rubber Stops for Platter Support (97003)
97005 Overlay
97006 Overlay Lens
97007 Display Board
97008 Loadcell Block, 10 lb
97009 Loadcell Block, 20 lb
97010 A/D Assembly
97011 Power Supply
97012 Main CPU Board
15438 Power Cord
Table 2-1. DC-530 Replacement Parts
