Configuration Settings 15
23 Minimum Display (Load Cell 1)
00: 1
01: 2
10: 5
11: 10
Display Resolution (Load Cell 1)
(when internal count span is 500,000)
00: 1/10,000
01: 1/5,000 [DEFAULT]
10: 1/2,500
11: 1/12,500
(when internal count span is 1,000,000)
00: 1/100,000
01: 1/50,000 [DEFAULT]
10: 1/25,000
24 Internal Count Span
(Load Cell 1)
0: 500,000 [DEFAULT]
1: 1,000,000
Weight Decimal Point Position (Load Cell 1)
(when internal count span is 500,000)
000: 00000
001: 0000.0 [DEFAULT]
010: 000.00
011: 00.000
100: 0.0000
Weight Decimal Point Position (Load Cell 1)
(when internal count span is 1,000,000)
000: 000000
001: 00000.0 [DEFAULT]
010: 0000.00
011: 000.000
100: 00.0000
101: 0.00000
25 Weight Stable Condition for Load Cell 1 - waiting time 0.5 seconds to 10 seconds
0000: 0.5 seconds 1000: 4.5 seconds
0001: 1.0 seconds 1101: 5.0 seconds
0010: 1.5 seconds 1010: 5.5 seconds
0011: 2.0 seconds [DEFAULT] 1011: 6.0 seconds
0100: 2.5 seconds 1100: 7.0 seconds
0101: 3.0 seconds 1101: 8.0 seconds
0110: 3.5 seconds 1110: 9.0 seconds
0111: 4.0 seconds 1111: 10.0 seconds
26 Weight Stable Condition for Load Cell 1 - Limit No Check to ± 10.0d
0000: No Check 1000: ± 5.0d
0001: ± 0.1d 1001: ± 10.0d
0010: ± 0.2d
0011: ± 0.3d
0100: ± 0.4d
0101: ± 0.5d [DEFAULT]
0110: ± 1.0d
0111: ± 2.0d
SPEC No Bit 3 Bit 2 Bit 1 Bit 0

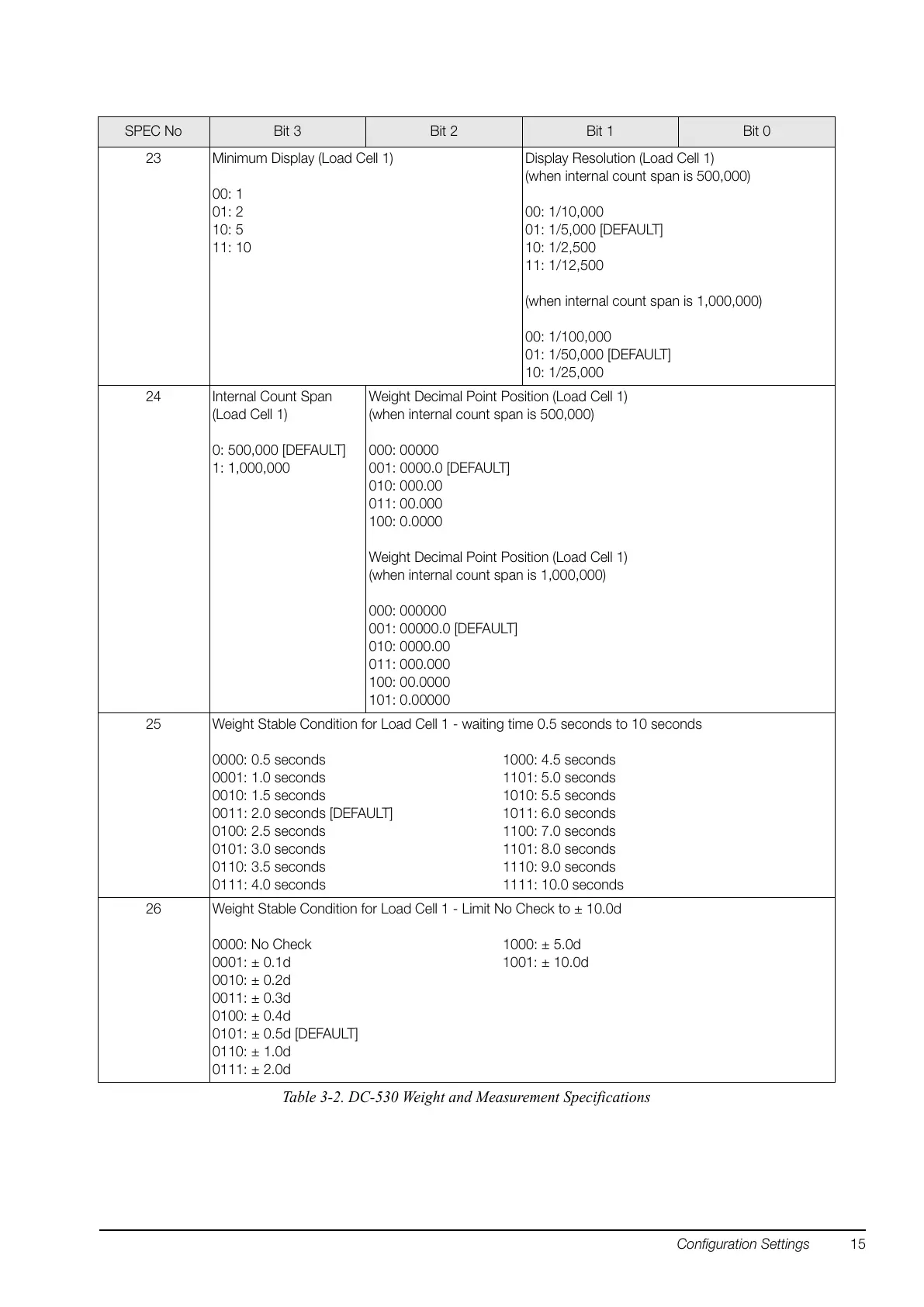

Table 3-2. DC-530 Weight and Measurement Specifications
