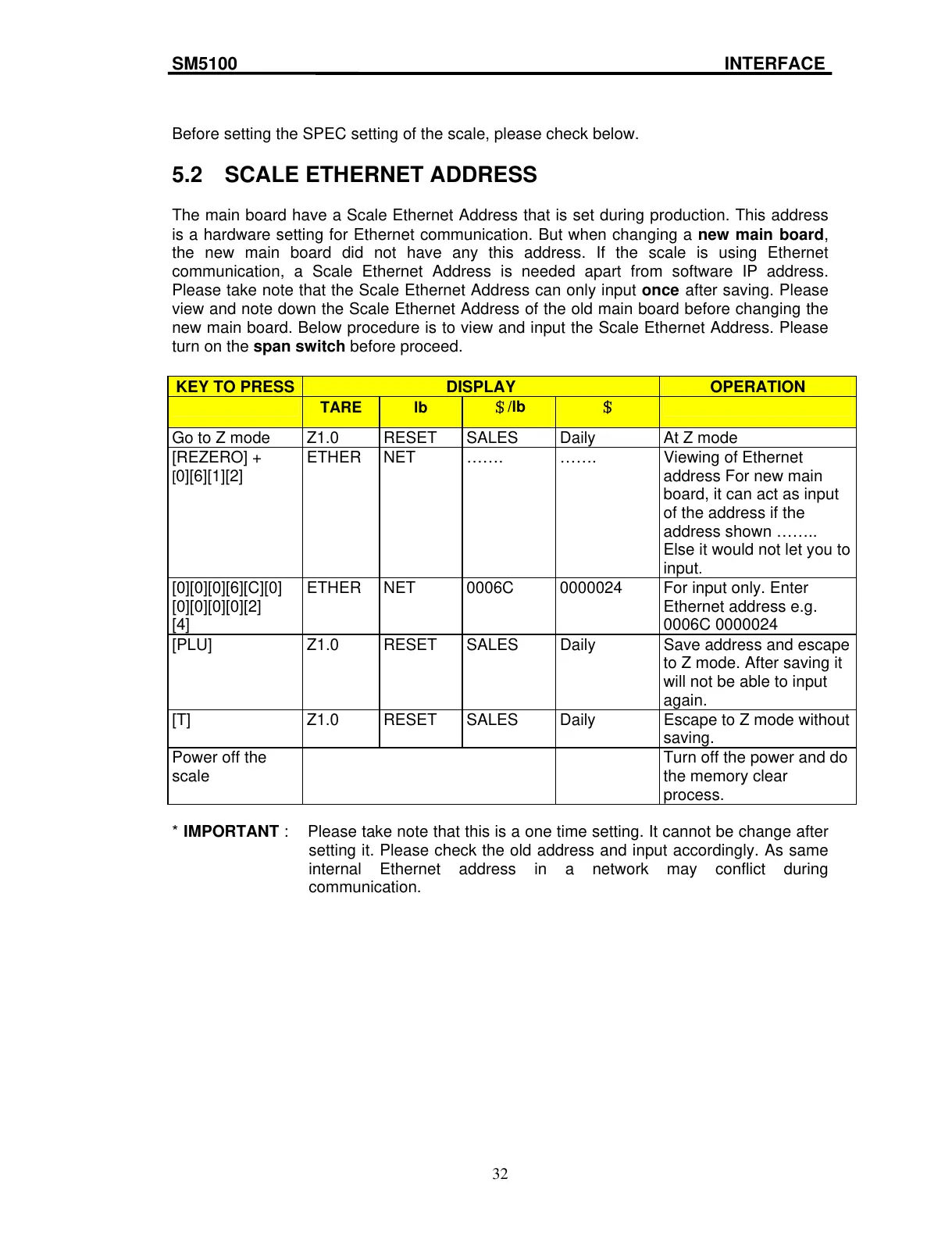

SM5100 INTERFACE
Before setting the SPEC setting of the scale, please check below.
5.2 SCALE ETHERNET ADDRESS
The main board have a Scale Ethernet Address that is set during production. This address
is a hardware setting for Ethernet communication. But when changing a new main board,
the new main board did not have any this address. If the scale is using Ethernet
communication, a Scale Ethernet Address is needed apart from software IP address.
Please take note that the Scale Ethernet Address can only input once after saving. Please
view and note down the Scale Ethernet Address of the old main board before changing the
new main board. Below procedure is to view and input the Scale Ethernet Address. Please
turn on the span switch before proceed.
KEY TO PRESS DISPLAY OPERATION
TARE lb
＄/lb ＄
Go to Z mode Z1.0 RESET SALES Daily At Z mode
[REZERO] +
[0][6][1][2]
ETHER NET ……. ……. Viewing of Ethernet
address For new main
board, it can act as input
of the address if the
address shown ……..
Else it would not let you to
input
.
[0][0][0][6][C][0]
[0][0][0][0][2]
[4]
ETHER NET 0006C 0000024 For input only. Enter
Ethernet address e.g.
0006C 0000024
[PLU] Z1.0 RESET SALES Daily Save address and escape
to Z mode. After saving it
will not be able to input
again.
[T] Z1.0 RESET SALES Daily Escape to Z mode without
saving.
Power off the
scale
Turn off the power and do
the memory clear
process.
* IMPORTANT : Please take note that this is a one time setting. It cannot be change after
setting it. Please check the old address and input accordingly. As same
internal Ethernet address in a network may conflict during
communication.
32
