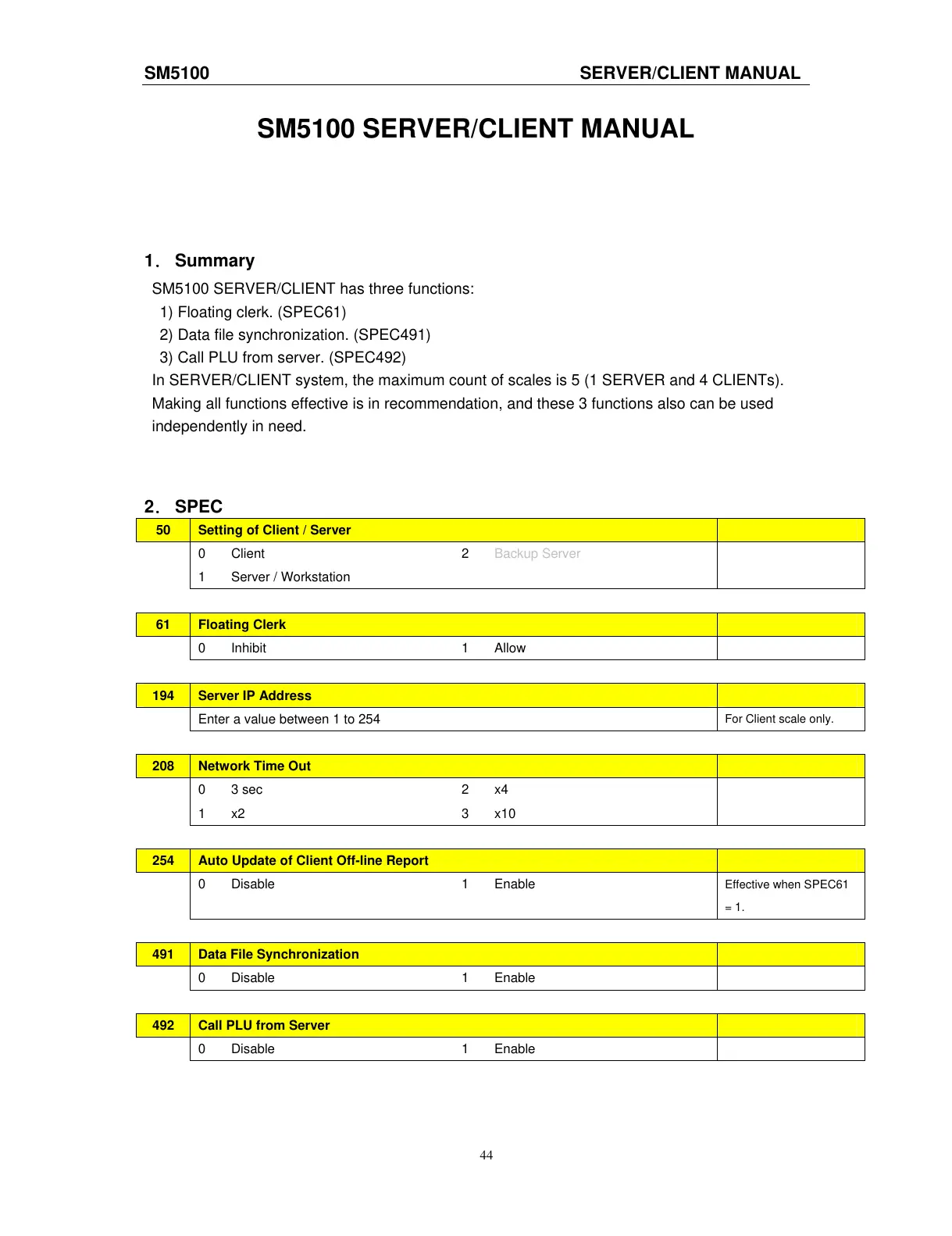

SM5100 SERVER/CLIENT MANUAL
SM5100 SERVER/CLIENT MANUAL
1． Summary
SM5100 SERVER/CLIENT has three functions:
1) Floating clerk. (SPEC61)
2) Data file synchronization. (SPEC491)
3) Call PLU from server. (SPEC492)
In SERVER/CLIENT system, the maximum count of scales is 5 (1 SERVER and 4 CLIENTs).
Making all functions effective is in recommendation, and these 3 functions also can be used
independently in need.
2． SPEC
50 Setting of Client / Server
0 Client 2 Backup Server
1 Server / Workstation
61 Floating Clerk
0 Inhibit 1 Allow
194 Server IP Address
Enter a value between 1 to 254
For Client scale only.
208 Network Time Out
0 3 sec 2 x4
1 x2 3 x10
254 Auto Update of Client Off-line Report
0 Disable 1 Enable
Effective when SPEC61
= 1.
491 Data File Synchronization
0 Disable 1 Enable
492 Call PLU from Server
0 Disable 1 Enable
44
