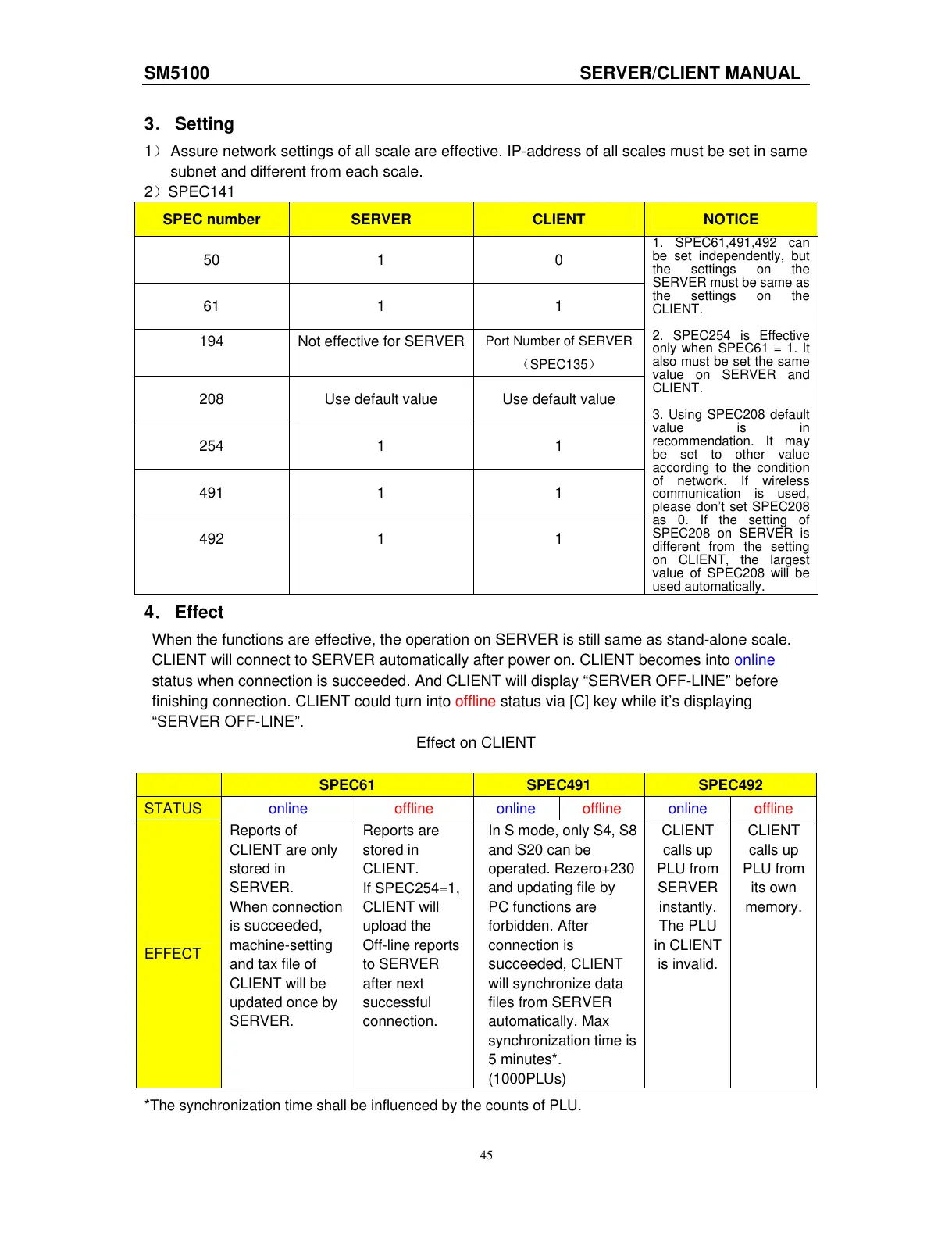

SM5100 SERVER/CLIENT MANUAL
3． Setting
1） Assure network settings of all scale are effective. IP-address of all scales must be set in same
subnet and different from each scale.
2）SPEC141
SPEC number SERVER CLIENT NOTICE
50 1 0
61 1 1
194 Not effective for SERVER
Port Number of SERVER
（SPEC135）
208 Use default value Use default value
254 1 1
491 1 1
492 1 1
1. SPEC61,491,492 can
be set independently, but
the settings on the
SERVER must be same as
the settings on the
CLIENT.
2. SPEC254 is Effective
only when SPEC61 = 1. It
also must be set the same
value on SERVER and
CLIENT.
3. Using SPEC208 default
value is in
recommendation. It may
be set to other value
according to the condition
of network. If wireless
communication is used,
please don’t set SPEC208
as 0. If the setting of
SPEC208 on SERVER is
different from the setting
on CLIENT, the largest
value of SPEC208 will be
used automatically.
4． Effect
When the functions are effective, the operation on SERVER is still same as stand-alone scale.
CLIENT will connect to SERVER automatically after power on. CLIENT becomes into online
status when connection is succeeded. And CLIENT will display “SERVER OFF-LINE” before
finishing connection. CLIENT could turn into offline status via [C] key while it’s displaying
“SERVER OFF-LINE”.
Effect on CLIENT
SPEC61 SPEC491 SPEC492
STATUS online offline online offline online offline
EFFECT
Reports of
CLIENT are only
stored in
SERVER.
When connection
is
succeeded,
machine-setting
and tax file of
CLIENT will be
updated once by
SERVER.
Reports are
stored in
CLIENT.
If SPEC254=1,
CLIENT will
upload the
Off-line reports
to SERVER
after next
successful
connection.
In S mode, only S4, S8
and S20 can be
operated. Rezero+230
and updating file by
PC functions are
forbidden. After
connection is
succeeded, CLIENT
will synchronize data
files from SERVER
automatically. Max
synchronization time is
5 minutes*.
(1000PLUs)
CLIENT
calls up
PLU from
SERVER
instantly.
The PLU
in CLIENT
is invalid.
CLIENT
calls up
PLU from
its own
memory.
*The synchronization time shall be influenced by the counts of PLU.
45
