4.4 Programming of Free Format
M o d e l S M - 5 3 00 O p e r a t i o n M a n u a l | 141
4.4.1.2 Type 2 Data Setting

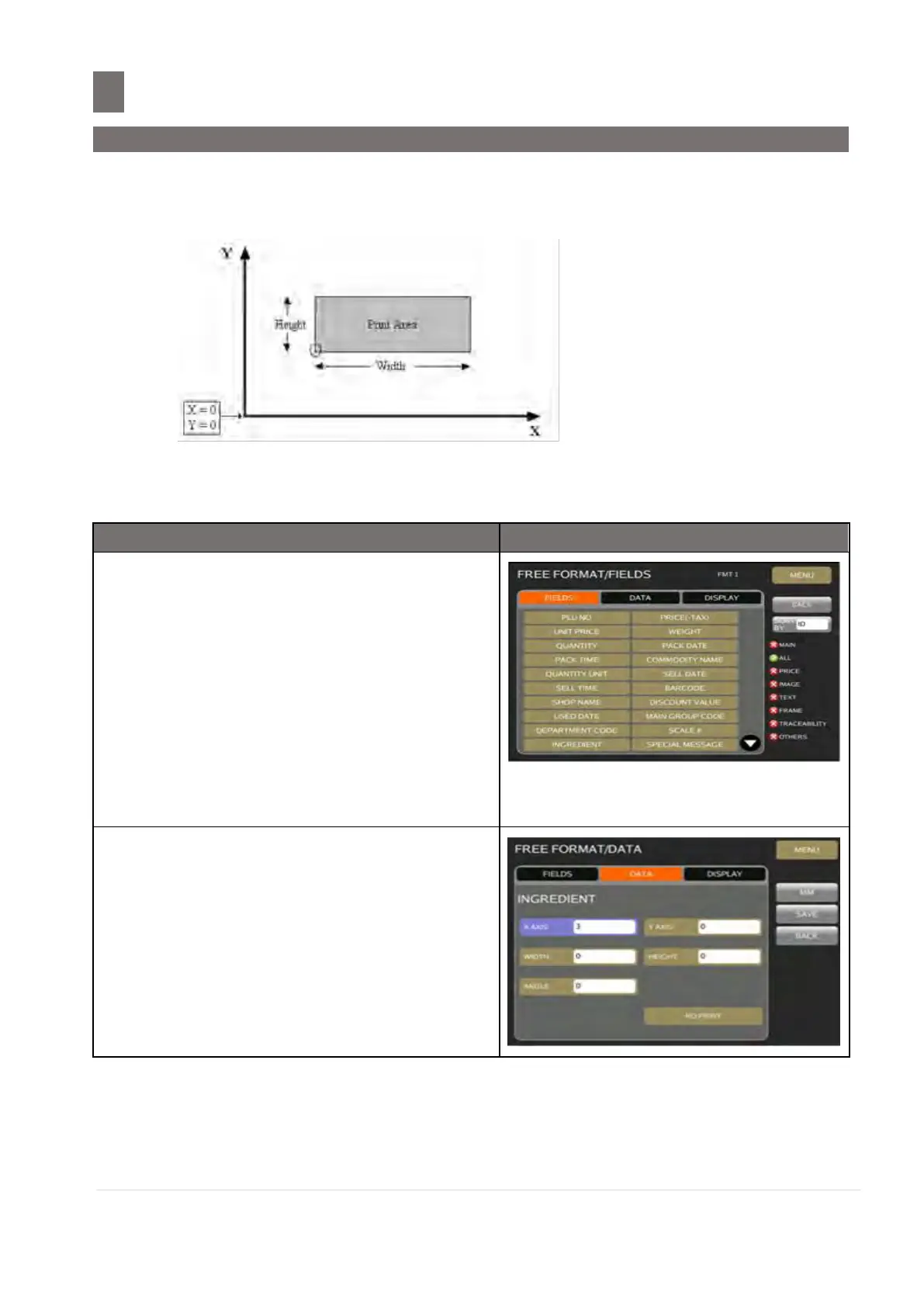

The Type 2 data setting is the positioning of alphanumeric data. The positioning of Type 2 data
is decided by X, Y values, height, width, angle and status. The height and width decides the
print area size as shown below.
Note: The number of lines printed on the label will depend on the selected character size and the
size of the programmed print area.
Example: Procedure to set INGREDIENT.
In Item Free Format mode, under [FIELDS]
folder, select the item data. (e.g.
Ingredient)
Note:
1. Touch [ARROW DOWN] or [ARROW
UP] for more selection.
2. Touch [SORT BY NAME] or [SORT BY
ID] for more selection
3. To save data, touch [DISPLAY] folder
and touch [SAVE] key.
4. Touch Option Button to be short cut to
shown desired FIELDS.
Touch [X AXIS] key and enter the value by
keypad. (e.g. 3)
To Next Page
