Welcome Digi WR54 LEDs
Digi WR54 Hardware Reference
10
Wi-Fi Service
n Solid Green: Wi-Fi interface is enabled.
n Off: Wi-Fi interface is disabled.
WWAN Signal
Indicates strength of cellular signal.
n Off: No service.
n Yellow: Poor / Fair signal.
n Green: Good / Excellent signal.
WWAN Service
Indicates the presence and level of cellular service running on the device.
n Off: No service.
n Blinking Green: 2G/3G/4G connection is coming up.
n Solid Yellow: 2G or 3G connection is up.
n Solid Green: 4G connection is up.

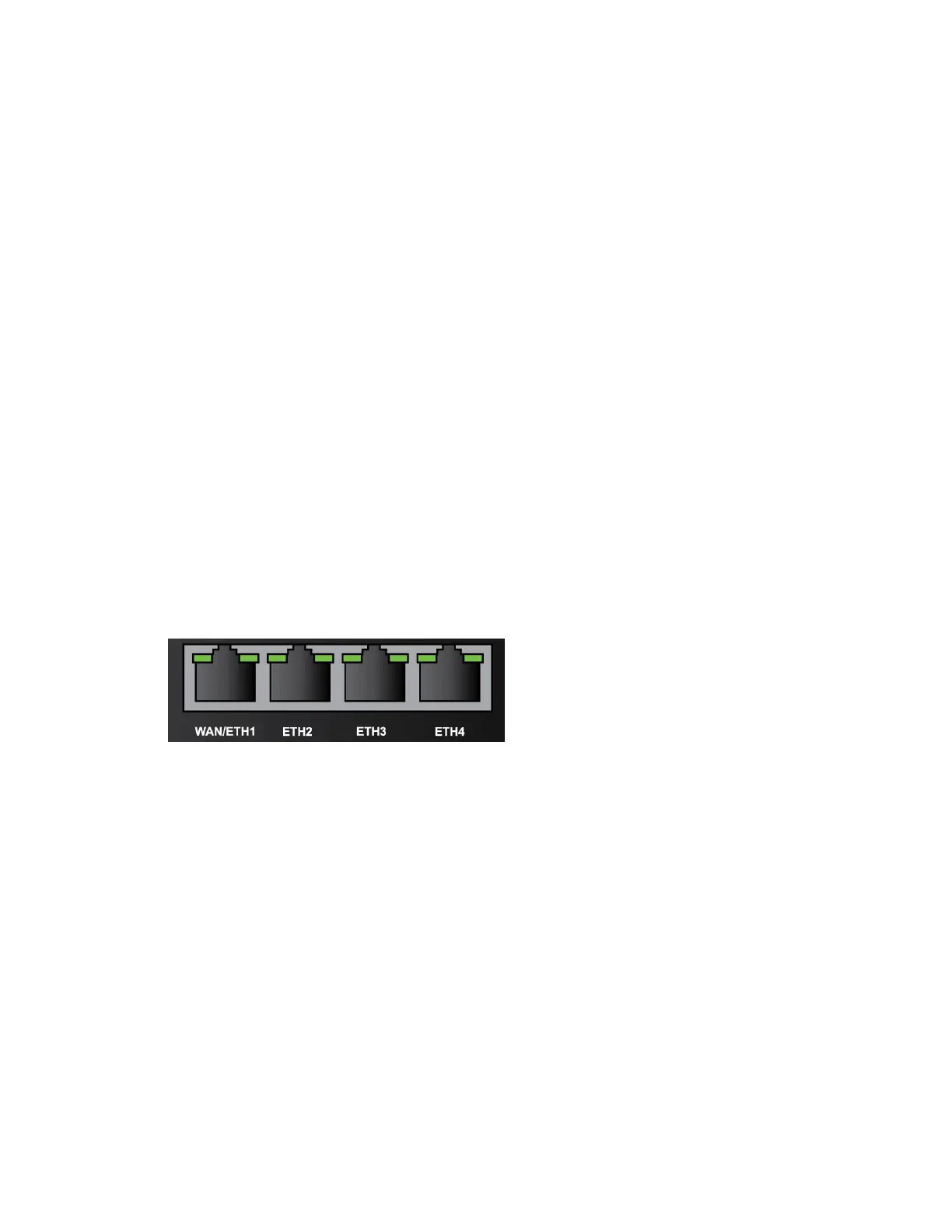

Ethernet 1-4 Link and Activity (on rear panel)
The LEDs on the WAN/ETH1, ETH2, ETH3, and ETH4 ports indicate that the Ethernet network interface
is up and there is activity on the network interface.
Left LED (on top of port connector)
n Off: No Ethernet link detected.
n Blinking amber: Indicates Ethernet traffic.
Right LED (on top of port connector)
n Off: No Ethernet link detected.
n Solid green: 10/100 Mbps link detected.
n Solid amber: 1000 Mbps link detected.
