Digi XBee 3 Hardware Reference Manual

Pin signals Pin signals for the XBee 3 surface-mount module
Digi XBee® 3 RF Module Hardware Reference Manual
23
Pin signals for the XBee 3 surface-mount module

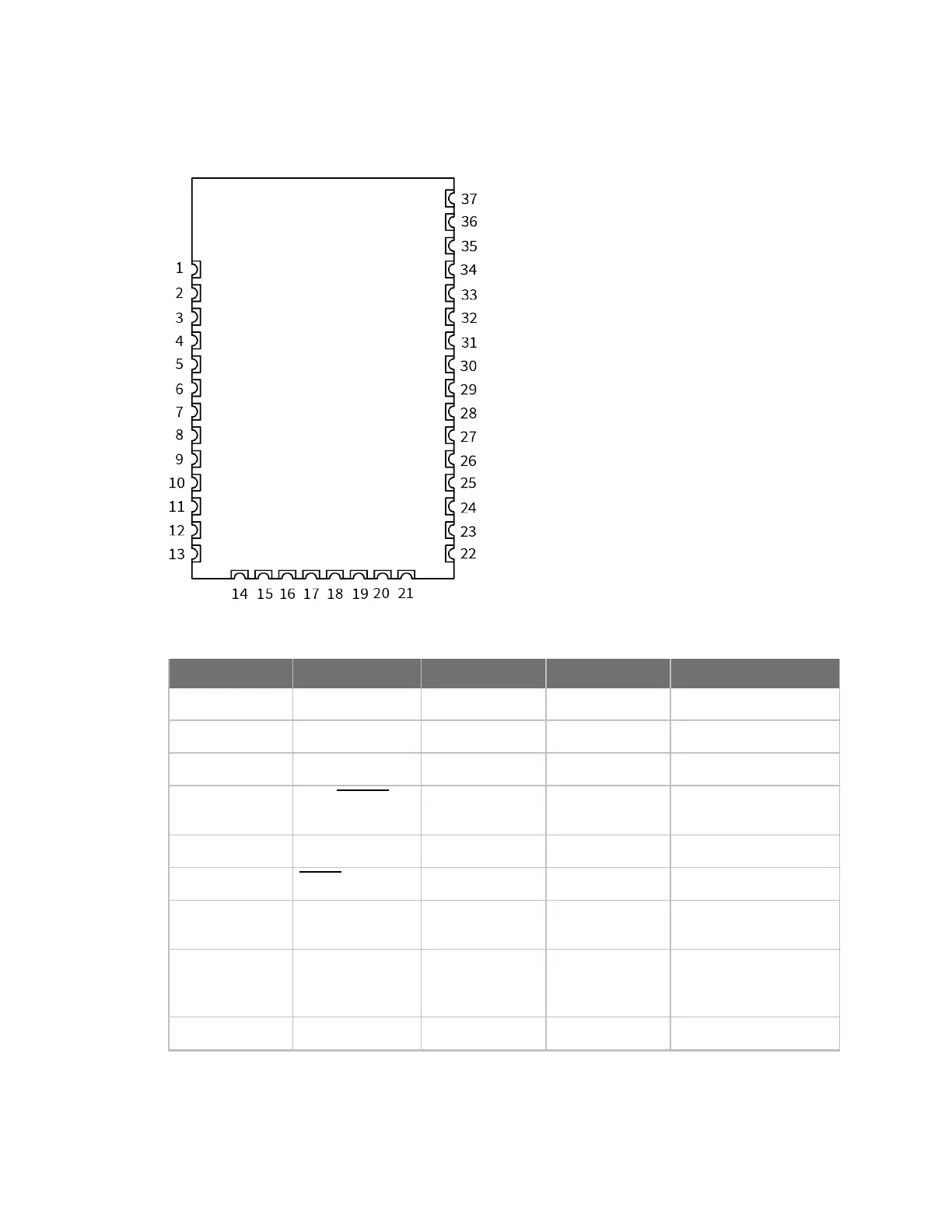

The following drawing shows the surface-mount (SMT) pin locations.
The following table shows the pin signals and their descriptions for the surface-mount device.
Pin# Name Direction Default state Description
1 GND - - Ground.
2 VCC - - Power supply.
3 DOUT /DIO13 Both Output UART data out /GPIO.
4 DIN / CONFIG
/DIO14
Both Input UART data in /GPIO.
5 DIO12 Both GPIO.
6 RESET Input Device reset.
7 RSSI PWM/DIO10 Both Output RX signal strength
Indicator /GPIO.
8 PWM1/DIO11/I2C
SDA
Both Disabled Pulse width
modulator/GPIO/I2C
SDA.
9 [reserved] - Disabled Do not connect.
