Digi XBee 3 Hardware Reference Manual

Pin signals Pin signals for the XBee 3 micro module
Digi XBee® 3 RF Module Hardware Reference Manual
26
Pin signals for the XBee 3 micro module

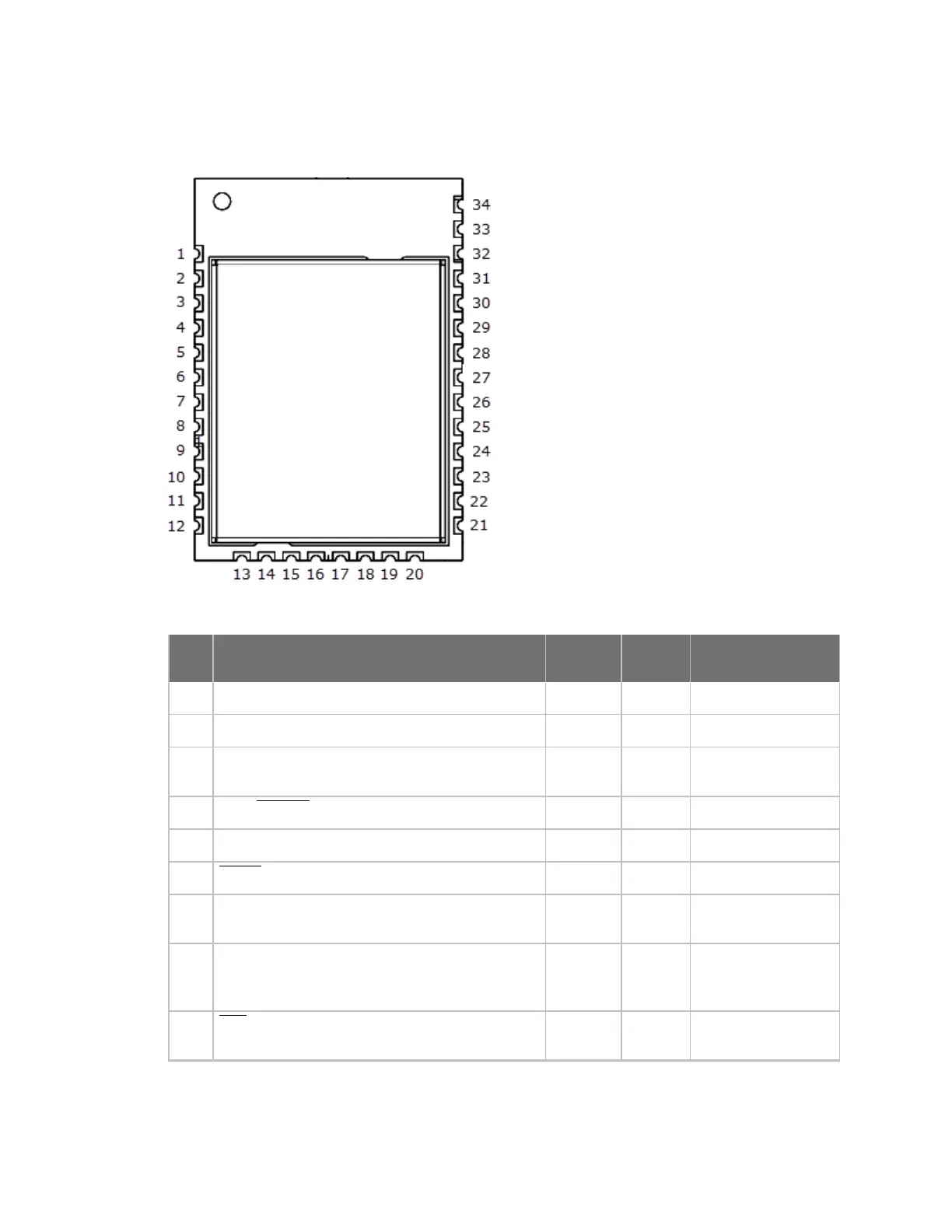

The following drawing shows the micro pin locations.
The following table shows the pin signals and their descriptions for the XBee 3 Micro device.
Pin# Name Direction
Default
state Description
1 GND - - Ground.
2 VCC - - Power supply.
3 DOUT /DIO13 Both Output UART data out
/GPIO.
4 DIN / CONFIG /DIO14 Both Input UART data in /GPIO.
5 DIO12 Both GPIO.
6 RESET Input Device reset.
7 RSSI PWM/DIO10 Both Output RX signal strength
Indicator /GPIO.
8 PWM1/DIO11/I2C SDA Both Disabled Pulse width
modulator/GPIO/I2C
SDA.
9 DTR/SLEEP_RQ /DIO8 Both Input Pin sleep control
Line/GPIO.
