DQ & MQ-Rack User Guide 1.6 Connecting a DANTE rack
18
In this example, a console that routes signal to DMI card output channels 1-8 will be sending them to the same
numbered Rack Output socket.

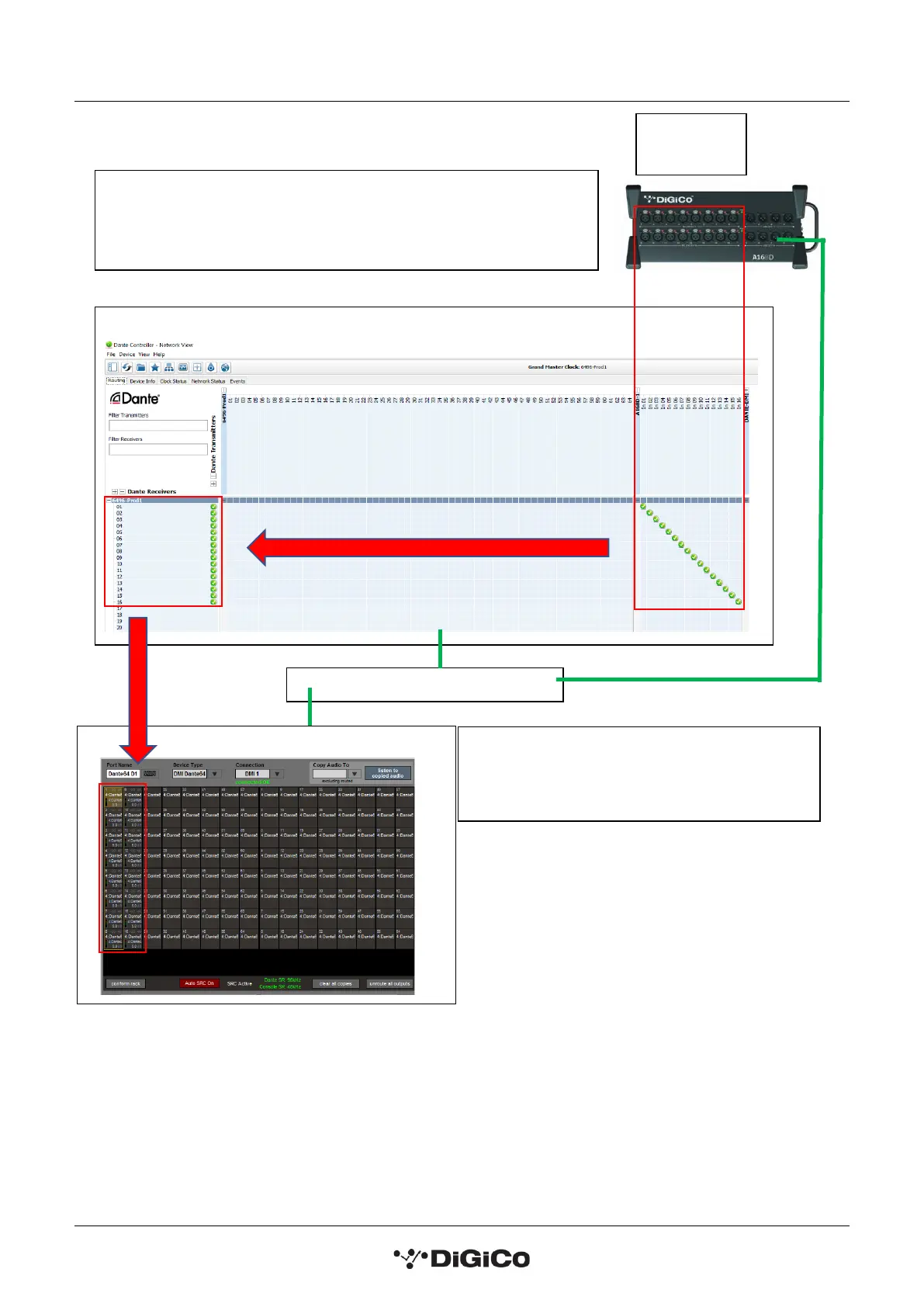

Dante Controller & Routing
Dante Rack
Inputs
Network Switch
Console 1
DMI 64@96 is a Receiver in this case.
Each channel receives the same numbered input
socket from the rack.
DANTE Rack is a Transmitter in this case.
Each of the 16 Rack input sockets are routed to the same numbered
DMI 64@96 channel
