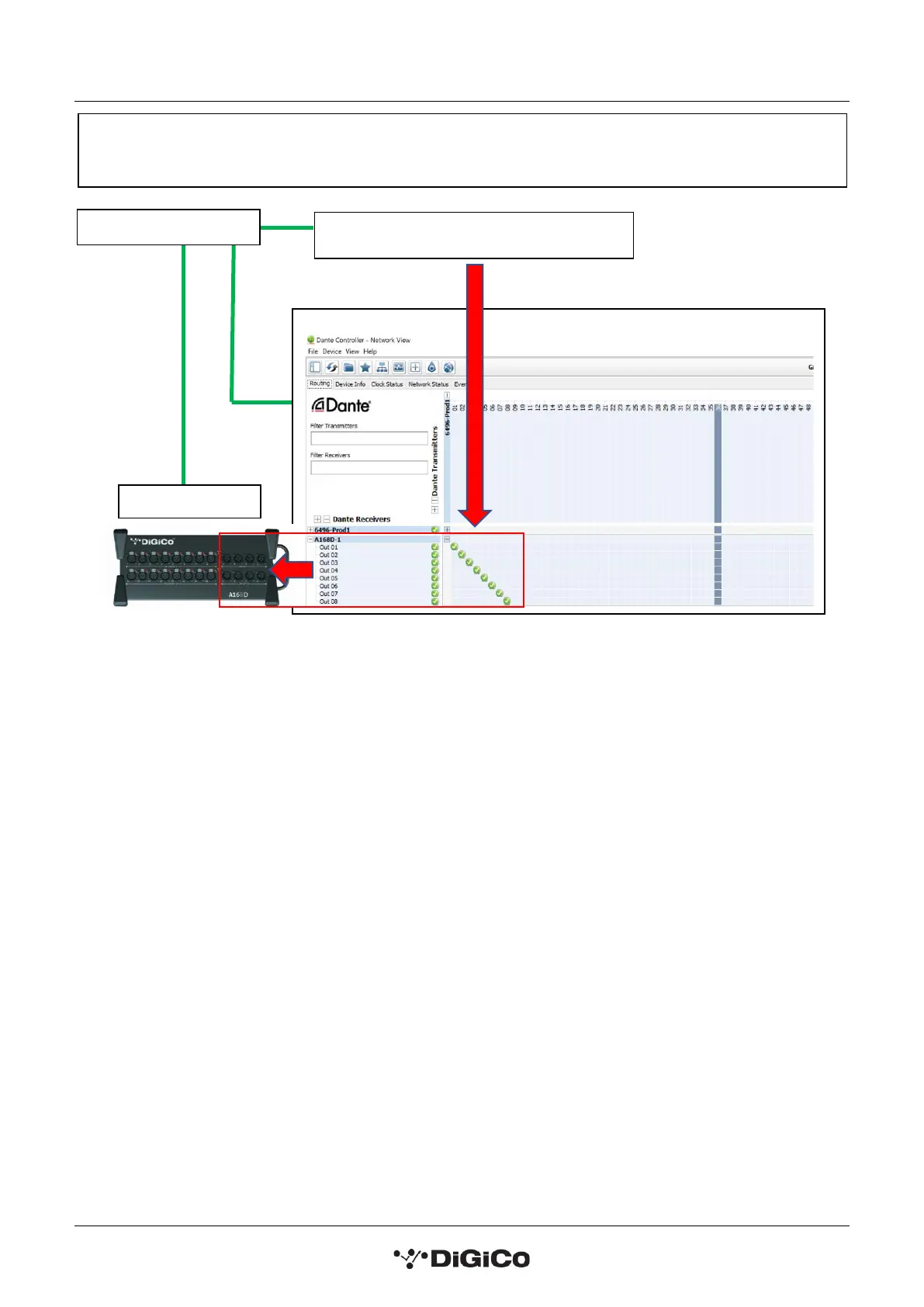

Dante Controller & Routing
Console 1 – DMI Outputs
Dante Rack
Outputs
Network Switch
Console 1 DMI is a Transmitter in this case.
Each of the DMI 64@96 outputs 1-8 are routed to same numbered Rack output sockets
