Appendix A: Adding or Removing I/O Cards 13
appendix a
Adding or Removing I/O Cards
The 192 I/O comes with one available expan-
sion bay on the back of the unit. This bay lets
you add another 192 AD Card, 192 DA Card, or
192 Digital Card (all sold separately) to increase
the amount of available I/O on the unit.
The expansion bay is the only bay that allows
for another card. The other three bays are hard-
wired for the appropriate card (the upper left
bay houses a 192 AD card; the upper right, the
192 Digital card; and the lower left, the 192 DA
card). See “Installing an I/O Card” on page 13.
These factory-installed cards can be removed, if
needed, for servicing, or to swap out cards in the
fourth bay for different studio setups. If you re-
move a single card from the 192 I/O, the unit
will continue to function while the audio card is
being serviced. See “Removing an I/O Card” on
page 16.
Installing an I/O Card
Installing an optional card in the expansion bay
To insert or replace a card:
1 Power off and disconnect the 192 I/O from
your Pro Tools|HD system.
2 Make sure that the equipment is properly
grounded.
3 Remove all 16 of the small Phillips-head
screws around the edges of the top cover. Don’t
lose the screws—put them in a safe place!
Bay
Number
Card
Allowed
1A/D
2D/A
3D/D
4Any
It is important that you follow the guidelines
in this chapter to avoid damaging your
192 I/O or any of your I/O cards.

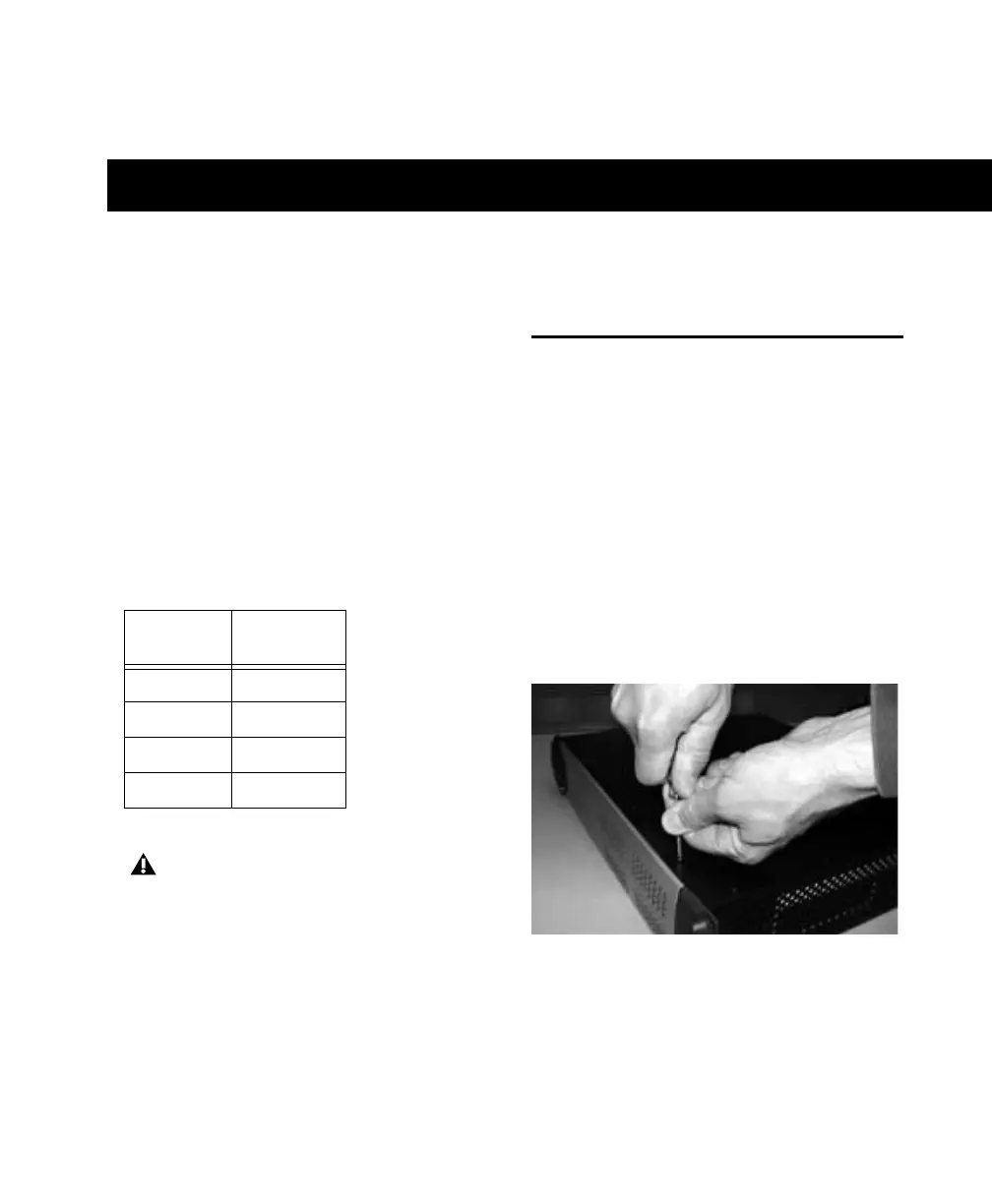

Removing the top cover screws
