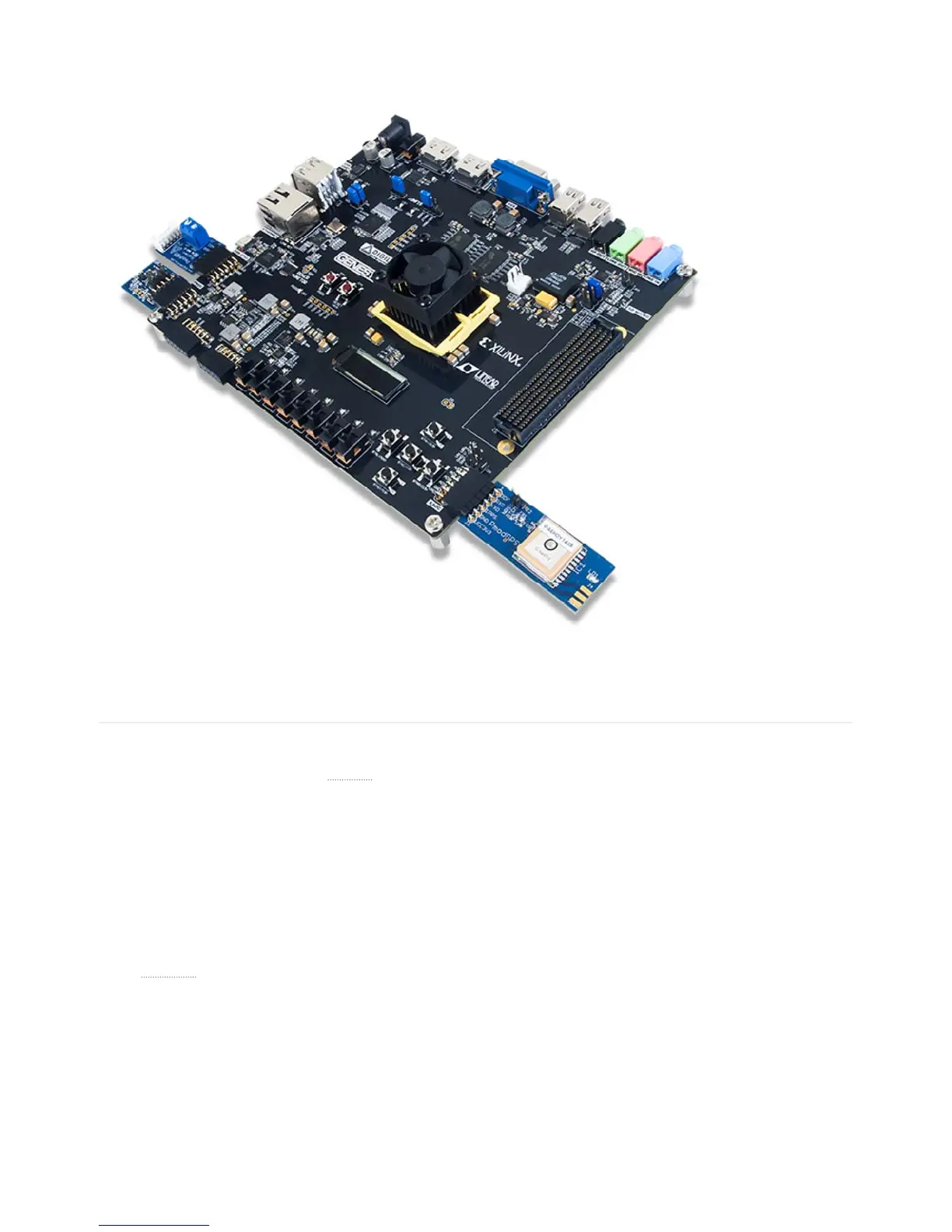

Digilent Genesys 2 - Page 5

• 50,950 logic slices (from Genesys up 7x), each with four 6-input LUTs and 8 flip-flops
• Close to 16 Mbits of fast block
RAM () (up 7x)
• Ten clock management tiles, each with phase-locked loop (PLL)
• 840 DSP slices (up 17x)
• Internal clock speeds exceeding 450MHz
• On-chip analog-to-digital converter (XADC)
• Up to 10.3125Gbps gigabit transceivers
• 1800Mbps DDR3 data rate with 32-bit data width
• Commercial -2 speed grade
• Fully bonded 400-pin FMC HPC connector
• USB-UART Bridge
• 8 user switches, 6 buttons
•
OLED ()
• VGA connector
• Pmod for XADC signals
•Two four-lane DisplayPort connectors
• HDMI Sink and HDMI Source
• 10/100/1000 Ethernet PHY
• 1GiB 1800Mt/s on-board DDR3
• USB 2.0 Host/Device/OTG PHY
• Digilent Adept USB port for programming and data
• Ten GTX lanes available in the FMC connector
Features
