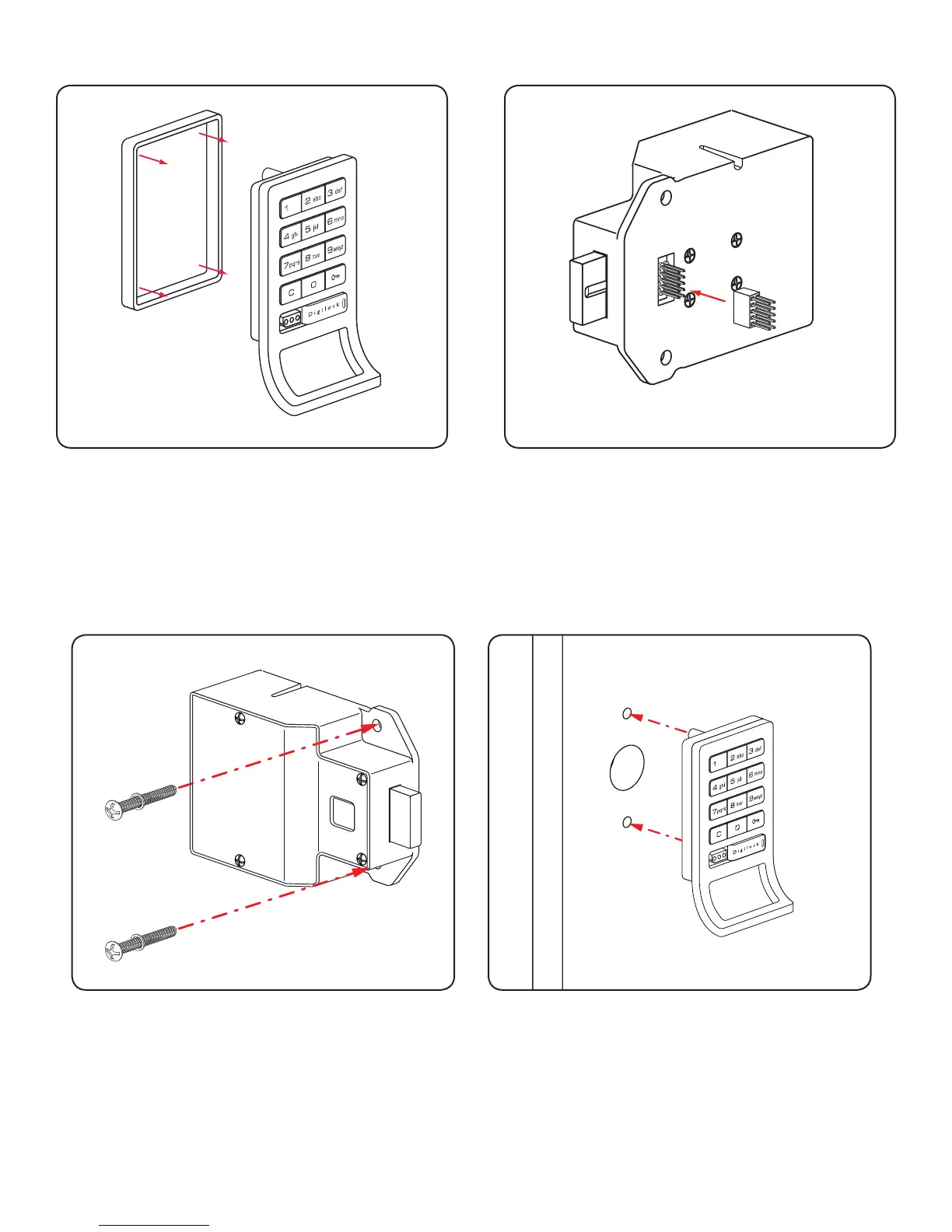

Place the split lock washers (F) on the phillips head
screws (E) and place the phillips head screws (E)
with washers through the holes on the rear unit (C)
as shown above.
Step 3
Place the mounting nut posts of the front unit (A)
through the lock mounting holes on the front of the
door.
Step 4
19
Place the plastic ring (B) onto the front unit (A).
Step 1
Place the pin extender (D) on the connector pins of
the rear unit (C).
NOTE: Do not touch the rear unit connector pins (male
connector) against any metal or other conductive
surfaces. This may short the pins and cause damage
to the lock.
Step 1
