Digilock Lock Parts
Note: Conrm that all lock parts are present. If there are damaged or missing parts contact your
Digilock Product Support Specialist.
Required Tools
3/8” Socket
(deep socket required)
Phillips Screwdriver
Head Size #1 & #2
For lock installation
Power Drill
Drill Bits: 1/16”
5/16”
3/4”
For door preparation
Warning: Do not use an electric screw gun during installation of the lock unless equipped with a torque adjuster,
which must be set on a low torque setting. Otherwise, damage may be caused to the lock.

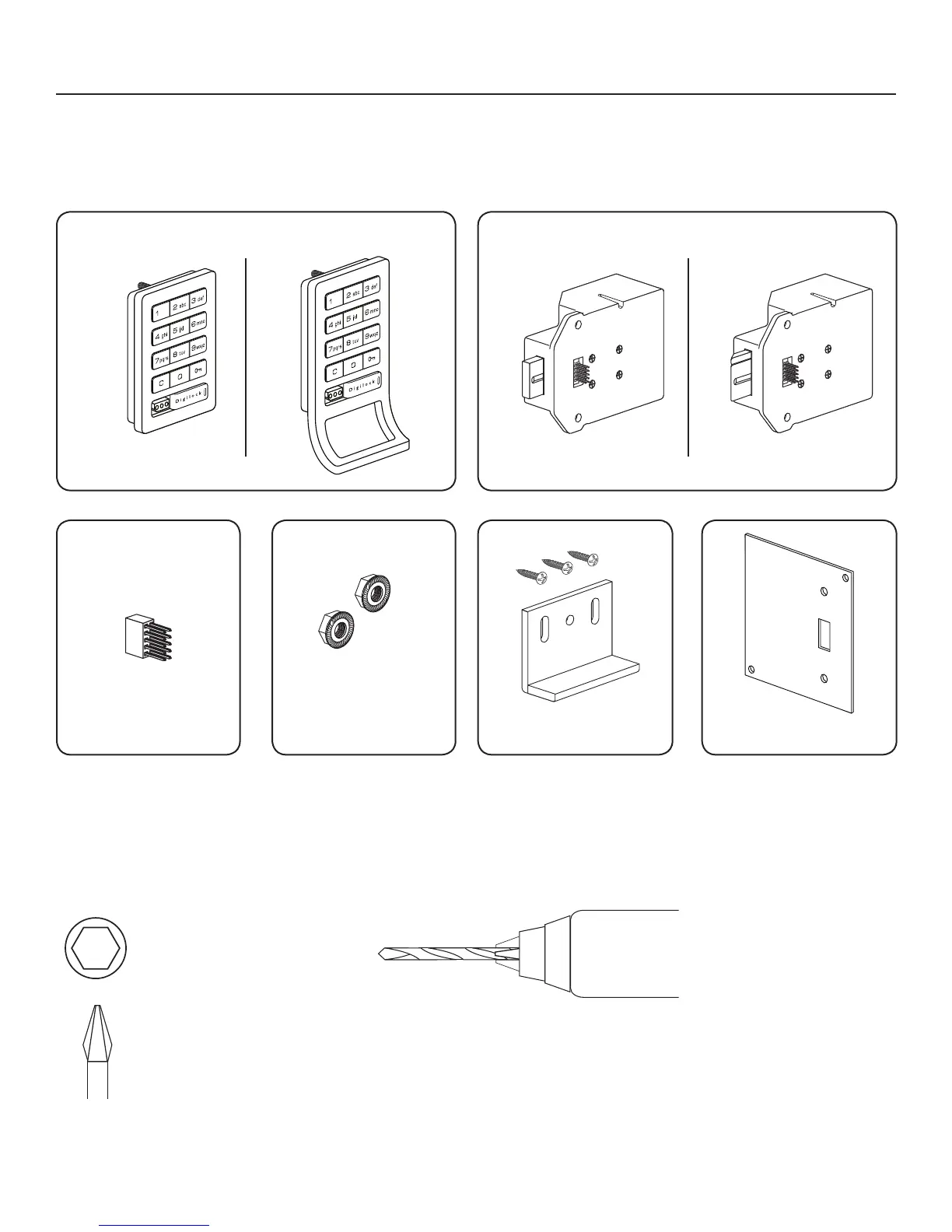

1-Front Unit with Screw Posts
(Both body styles shown)
No-Pull
With-Pull
Optional-Back Plate2-Locking Nuts1-Pin Extender
1-Strike Plate with
3-Self-Tapping Screws
Optional
1-Motorized Rear Unit
(Both Dead Bolt & Dead Latch shown)
Dead Bolt
Dead Latch
Required Components
To Next Page
