33

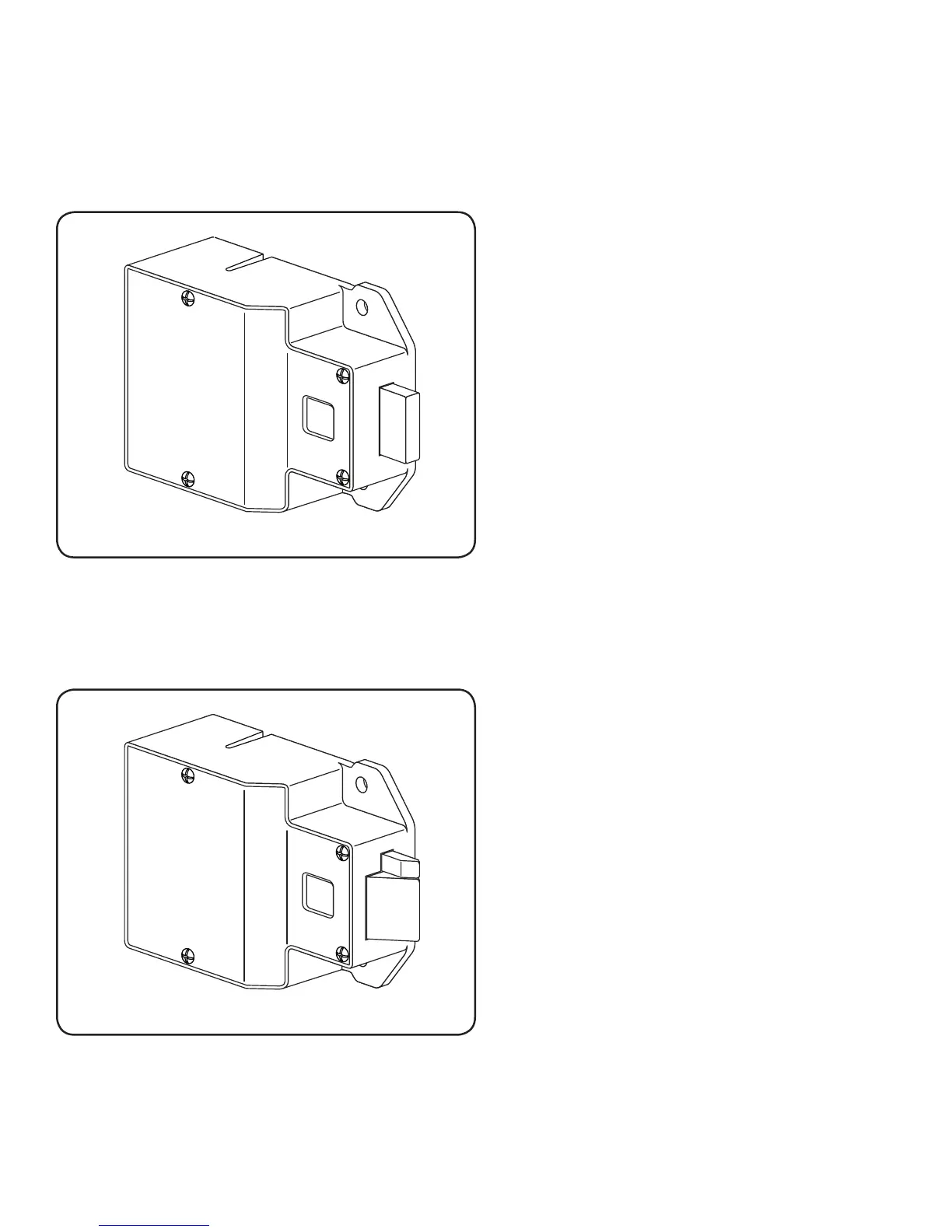

Dead Bolt
Dead Latch
Shared Use Lock Model
Assigned Use Lock Model
Identifying Your Digilock Lock Function
Before initializing/programming your locks it is important to identify the functionality of the lock you
have in order to determine which programming instructions will be applicable.
• The rear unit has a Dead Bolt.
• When you press the = then ` buttons
the bolt will extend locking the lock.
• When you press the = then ` buttons a
second time the bolt retracts, remaining in the
unlocked position.
• Follow the programming and operating
instructions on pages 34-39 and 40-46.
• The rear unit has a Dead Latch.
• When you press the = then ` buttons
the latch retracts allowing you to open the
locker door.
• After 6-8 seconds the retracted latch will
extend and upon closing the door will lock.
• Follow the programming and operating
instructions on pages 34-39 and 49-54.
