The parameter file can be edited, but it needs to follow the definite standards, the standards are as follows:
aOne line can only be edited one parameter.
bThe parameter format is #parameter mark= value. Among them, # must be the first character of each
line.# should closely be followed by the parameter mar and the following mark is=, and the make= will be
followed by the actual value.
cAfter the parameter has assignment and equation, the part of parameter interpretation can have any
format without constraint.
dEach parameter is regulated with assignment scope. Please do the assignment in strict accordance with
the assignment scope.
eEach parameter is set with default value in advance. Please use the setting value of default parameter
under the situation of not understanding the actual function of this parameter.
3.4.2 Set the Parameters in the Parameter setting Page

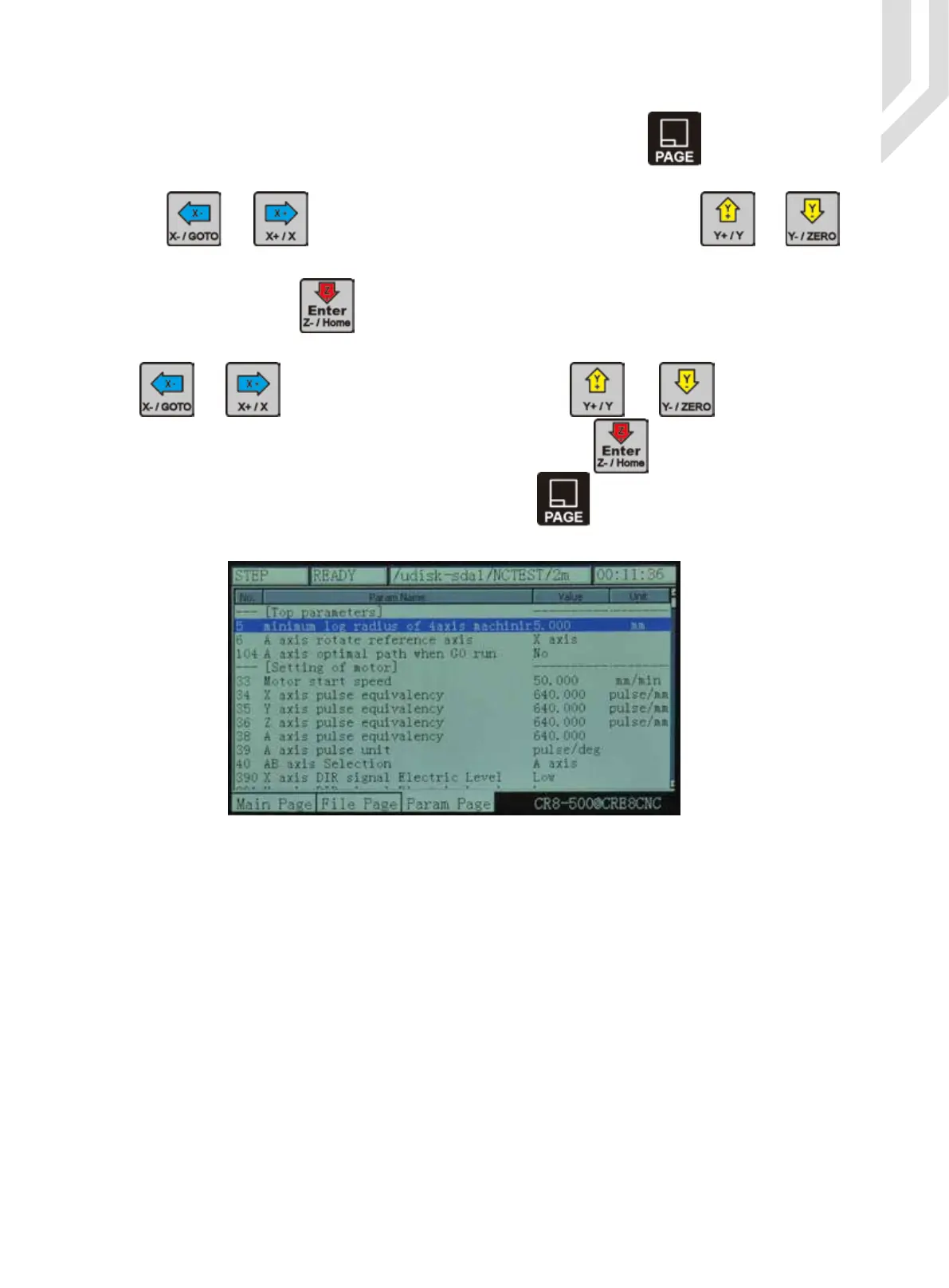

Picture 3-29 Enter the parameter configuration page
3.4.3 The detailed definition of parameters
In the main page, ensure the operation status is “READY” and press the key two times continu-
ously to enter the Parameter Page. As the picture 3-29 shows, in the parameter configuration page, pressing
the key and is to turn the page forward and backward. Pressing the key and
is to select the current parameter items up and down. When you select the parameters which are required to
modify, please press the key to enter the current parameter modification mode. At this time, it will
pop up a small dialog box of the modified value, which is the same with the other parameters.Pressing the
key and is to adjust the current bit. Pressing the key and is to adjust the
value of the current bit. After finishing modification, please press the key to return to the parameter
select. After finishing modifying the parameter, it needs to press to return to the homepage, thus
loading the parameter and making the parameter takes effect.
Page -34Digtital Dream 4 Axis Motion Controller DDCS V2.1 User’s Manual
