After you upgrade the firmware, the version number will appear in the Operation Window (7, lower right
corner of the interface).
Decompress the downloaded file onto a USB disk, direct into the root directory (not inside a folder). The
file after decompressing will look like in picture 3-32

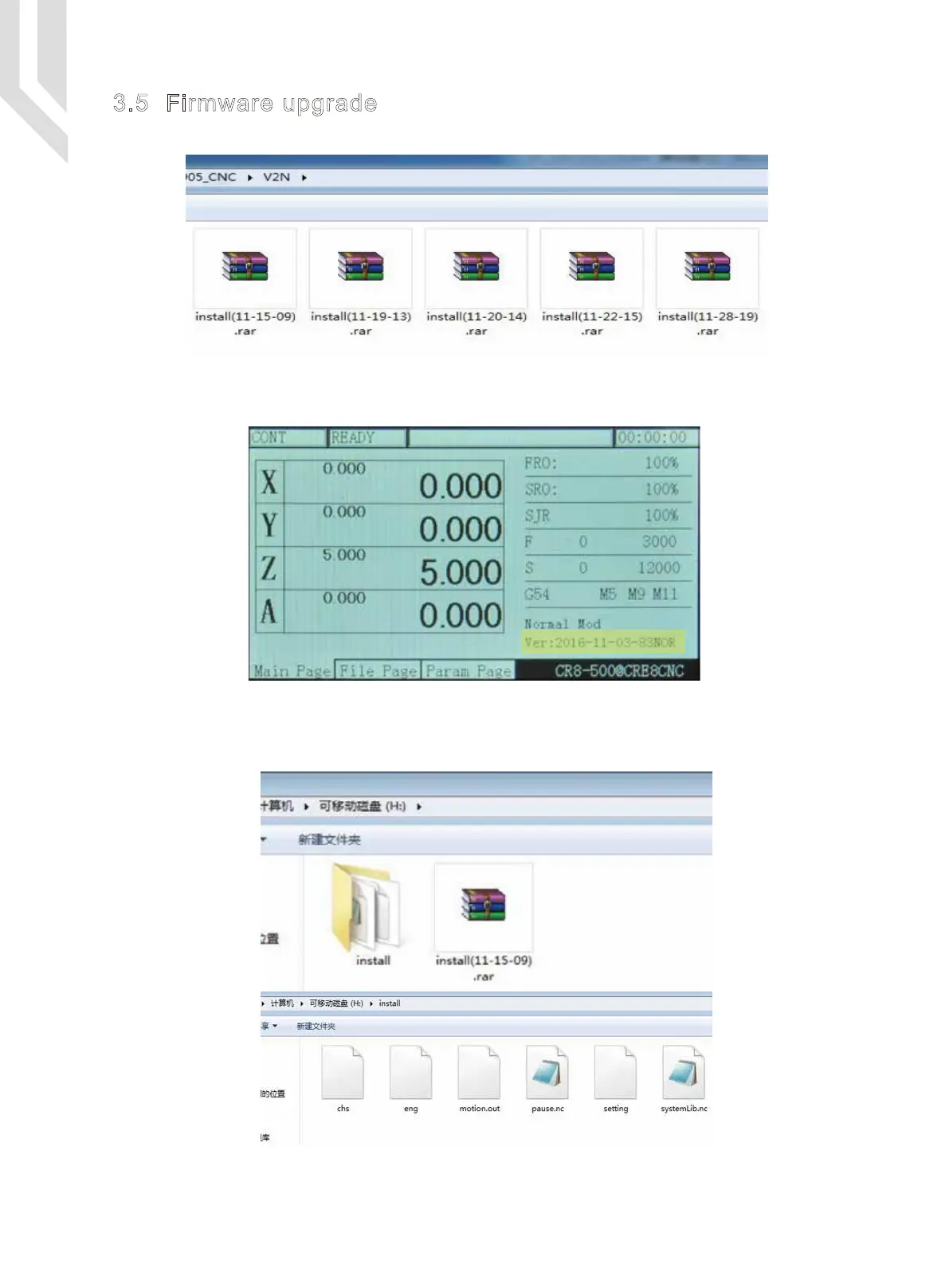

3.5 Firmware upgrade
Decompress the upgrade file into the USB flash disk
Picture 3-30 Firmware patch upgrade , the numbers refers to the version
Picture 3-32 Position of Firmware version number
Picture 3-31 Upgrade file and its directory
Version Number
Page -39Digtital Dream 4 Axis Motion Controller DDCS V2.1 User’s Manual
