Digital Dream DDCS V2.1 User Manual

As Picture 2-3 shows, the power interface, a 5.08mm screw terminal. The right terminal is the positive
power, the left wiring terminal is the negative power.
Use 18V-32V±0.5V. The current must be equal or >0.5A
2.2.1 Power Supply Wiring
This USB port is the standard USB A-type. A 50cm USB extension cord with installation plug is supplied
with the controller. See sketch diagram picture 2-4 for reference.
2.2.2 USB Wiring

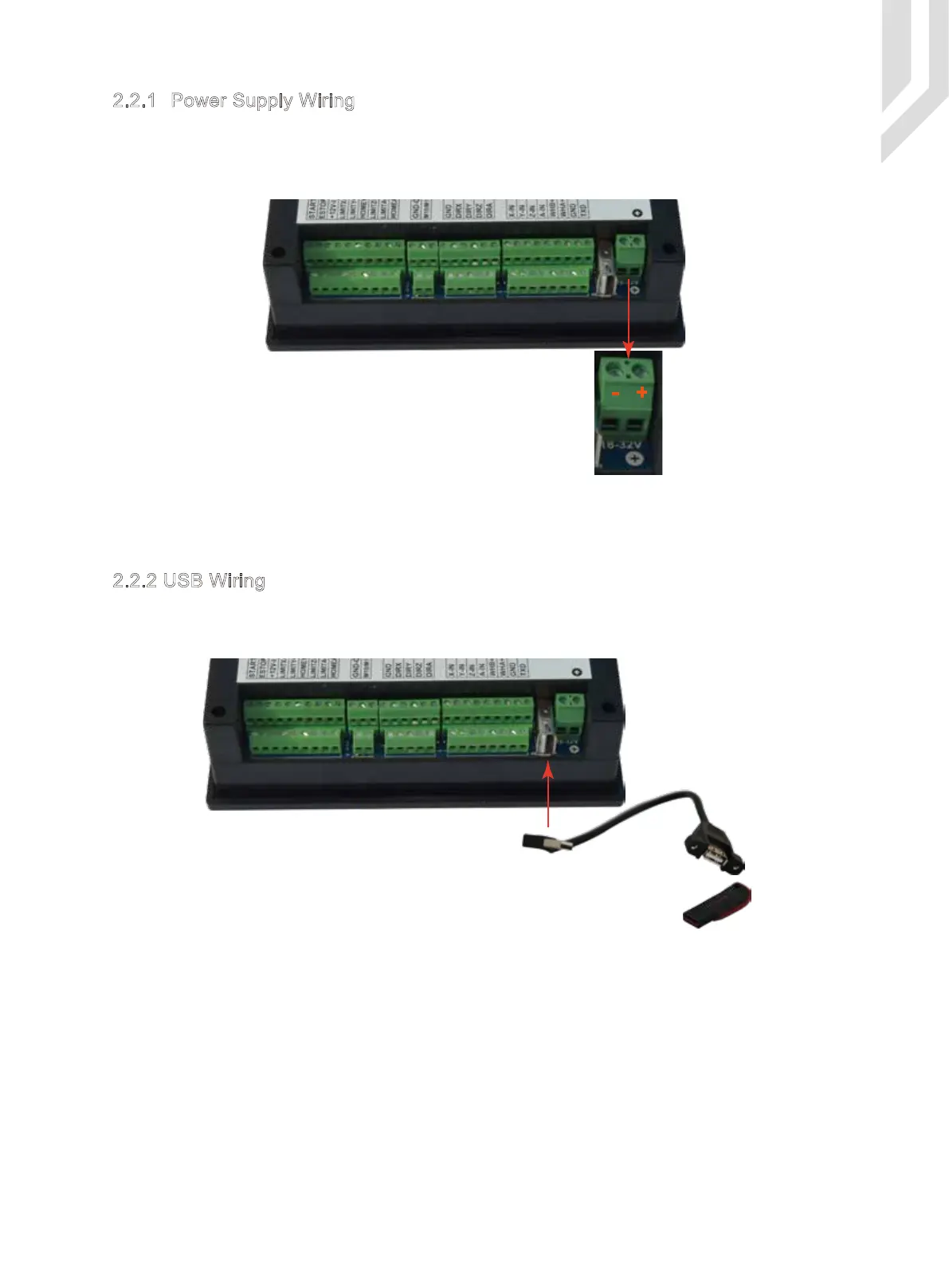

Picture 2-3 Power supply Wiring
Picture 2-4 USB interface extension cord
+-
DC 18V~32V
be equal or >0.5A
Page -6Digtital Dream 4 Axis Motion Controller DDCS V2.1 User’s Manual
