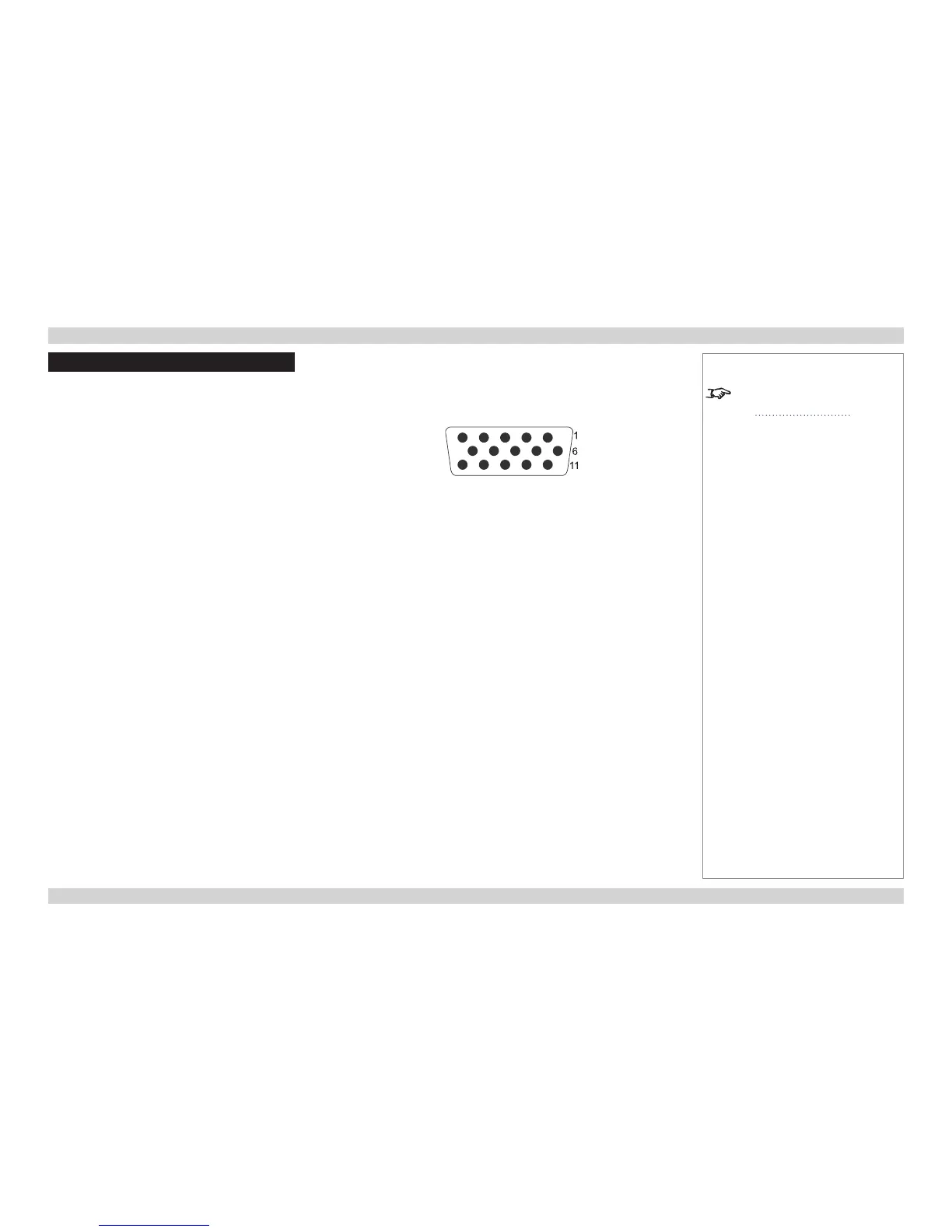

Digital Projection Titan Quad / 800 / 930 Series APPENDIX E: WIRING DETAILS Reference Guide

182

Rev H October 2013

Appendix E: Wiring Details

Signal inputs and outputs

Input 1: VGA

15 way D-type connector

1 R

2 G

3 B

4 unused

5 Digital Ground (H Sync)

6 R Ground

7 B Ground

8 G Ground

9 +5V

10 Digital Ground (V Sync/DDC)

1 unused

12 SDA

13 H Sync

14 V Sync

15 SCL

Notes

For full details of all input settings,

see Input Configuration in the

Operating Guide.

VGA: pin view of female connector
